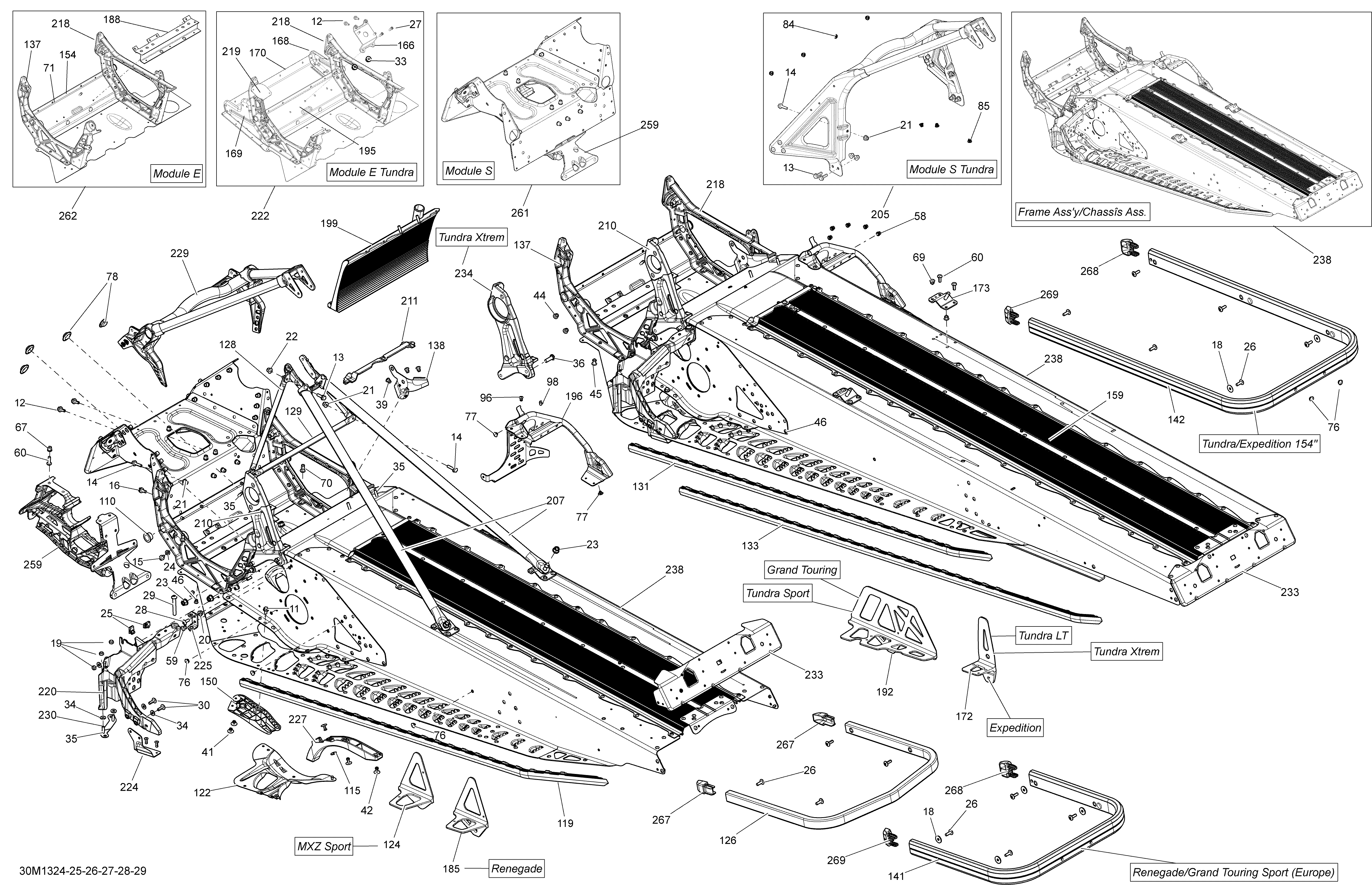

09- Frame для BRP Ski-Doo TUNDRA SPORT & LT 550F XP - 2013

  • №
    Артикул
    Название
  • 11
    207561244 Hex. Flanged Screw M6 X 12, Scotch Grip
    Hex. Flanged Screw M6 X 12, Scotch Grip
  • 12
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 13
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 14
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 16
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 18
    224061201 Flat Washer
    Flat Washer
  • 19
    232561414 Elastic Stop Nut M6
    Elastic Stop Nut M6
  • 20
    233061414 Hex. Flanged Nut M6
    Hex. Flanged Nut M6
  • 21
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 22
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 23
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 25
    250000079 Panel Nut M5 X 0.8
    Panel Nut M5 X 0.8
  • 26
    250000402 Torx-Truss Screw M6 X 18
    Torx-Truss Screw M6 X 18
  • 28
    250000534 Tork Screw M6 X 16
    Tork Screw M6 X 16
  • 29
    250000535 Tork Screw M8 X 55
    Tork Screw M8 X 55
  • 30
    250000536 Tork Screw M6 X 18
    Tork Screw M6 X 18
  • 33
    250100140 Elastic Hex. Flange Nut 1/4-20
    Elastic Hex. Flange Nut 1/4-20
  • 34
    250200039 Flat Washer
    Flat Washer
  • 35
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 36
    250300038 Clinch Stud
    Clinch Stud
  • 39
    293150096 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 41
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 44
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 45
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 46
    293150144 Stavex Rivet
    Stavex Rivet
  • 58
    293150146 Henrob Rivet
    Henrob Rivet
  • 59
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 60
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 67
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 69
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • 70
    293150182 Monobolt Rivet 6.4
    Monobolt Rivet 6.4
  • 71
    293150191 Monobolt Rivet, 4.8 mm
    Monobolt Rivet, 4.8 mm
  • 76
    293730041 Dart 8 mm, Full Moon
    Dart 8 mm, Full Moon
  • 77
    293730042 Dart
    Dart
  • 78
    293730052 Plug, Black
    Plug, Black
  • 84
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 85
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 96
    390909100 Avex Rivet
    Avex Rivet
  • 98
    390909200 Avex Rivet
    Avex Rivet
  • 110
    505073317 Leg Cushion
    Leg Cushion
  • 115
    517124300 Washer
    Washer
  • 122
    518324874 RH Reinforcement
    RH Reinforcement
  • 122
    518324875 LH Reinforcement
    LH Reinforcement
  • 128
    518325114 Upper Column Support
    Upper Column Support
  • 129
    518325115 Center Column Support
    Center Column Support
  • 131
    518325159 RH Roller. Tundra, Expedition
    RH Roller. Tundra, Expedition
  • 131
    518325160 LH Roller. Tundra, Expedition
    LH Roller. Tundra, Expedition
  • 133
    518325377 RH Roller. Tundra Sport
    RH Roller. Tundra Sport
  • 133
    518325378 LH Roller. Tundra Sport
    LH Roller. Tundra Sport
  • 137
    518325558 LH Member
    LH Member
  • 141
    518325577 Rear Bumper. Tundra Sport
    Rear Bumper. Tundra Sport
  • 142
    518325579 Rear Bumper. Tundra LT
    Rear Bumper. Tundra LT
  • 150
    518325782 RH Deflector
    RH Deflector
  • 150
    518325783 LH Deflector
    LH Deflector
  • 168
    518325949 RH Front Member. Tundra
    RH Front Member. Tundra
  • 169
    518325950 LH Front Member. Tundra
    LH Front Member. Tundra
  • 170
    518325951 Front Bottom Plate. Tundra
    Front Bottom Plate. Tundra
  • 172
    518325955 RH Slide Bracket. Tundra LT
    RH Slide Bracket. Tundra LT
  • 172
    518325956 LH Slide Bracket. Tundra LT
    LH Slide Bracket. Tundra LT
  • 173
    518325973 RH Rear Base
    RH Rear Base
  • 173
    518325974 LH Rear Base
    LH Rear Base
  • 192
    518326136 RH Slide Bracket. Tundra Sport
    RH Slide Bracket. Tundra Sport
  • 192
    518326137 LH Slide Bracket. Tundra Sport
    LH Slide Bracket. Tundra Sport
  • 195
    518326198 Front Member
    Front Member
  • 196
    518326216 RH Stirup
    RH Stirup
  • 205
    518326557 Front Member, S Module. Tundra
    Front Member, S Module. Tundra
  • 207
    518326559 Rear Member
    Rear Member
  • 210
    518326651 Pulley Support
    Pulley Support
  • 211
    518326656 Seal
    Seal
  • 218
    518326795 RH Member
    RH Member
  • 220
    518326820 LH Stirup
    LH Stirup
  • 222
    518326926 Module E Tundra. Tundra
    Module E Tundra. Tundra
  • 224
    518326960 Support
    Support
  • 225
    518326961 U-Attach
    U-Attach
  • 227
    518326973 Front Protector
    Front Protector
  • 229
    518326975 Front Member
    Front Member
  • 230
    518326986 Attach
    Attach
  • 233
    518327105 Rear Cap
    Rear Cap
  • 238
    415129759 Frame Tundra 137''
    Frame Tundra 137''
  • 238
    415129760 Frame Tundra LT
    Frame Tundra LT
  • 259
    518327475 Front Suspension Support
    Front Suspension Support
  • 261
    518327501 Cross Member S Module
    Cross Member S Module
  • 267
    520000567 Cap
    Cap
  • 268
    520000711 RH Cap
    RH Cap
  • 269
    520000712 LH Cap
    LH Cap
