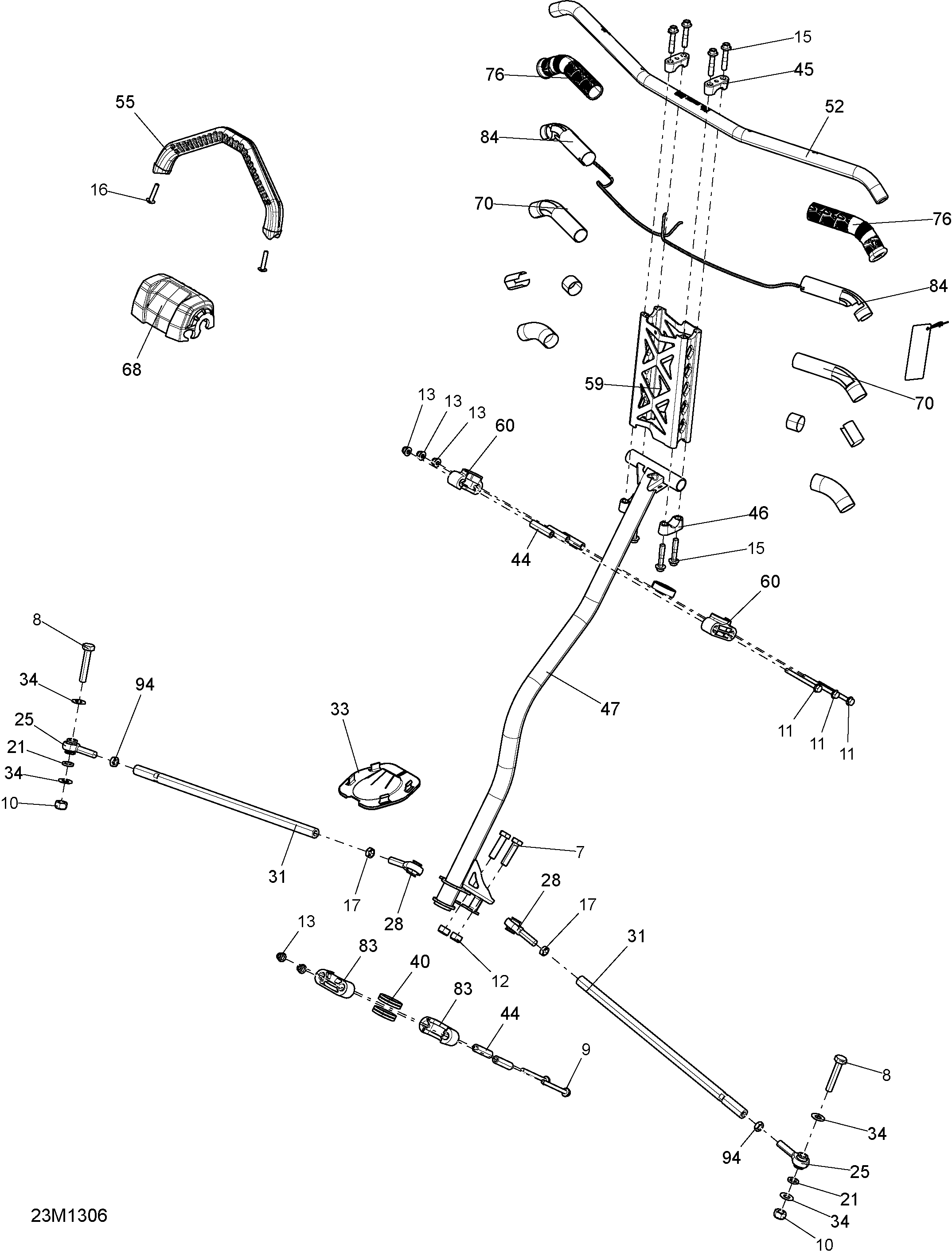

07- Steering для BRP Ski-Doo SUMMIT SP 800RE XM - 2013

  • №
    Артикул
    Название
  • 7
    207004034 Hex. Screw M10 X 40
    Hex. Screw M10 X 40
  • 8
    207005554 Hex Screw M10 X 55
    Hex Screw M10 X 55
  • 9
    207667044 Hex. Flange Screw M6 X 70
    Hex. Flange Screw M6 X 70
  • 10
    250100132 Elastic Locking Nut M10
    Elastic Locking Nut M10
  • 11
    207667086 Hex. Flanged Screw M6 x 70
    Hex. Flanged Screw M6 x 70
  • 12
    232500416 Elastic Stop Nut M10
    Elastic Stop Nut M10
  • 13
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 15
    250000352 Hex. Flange Screw M8 X 40
    Hex. Flange Screw M8 X 40
  • 16
    250000398 Stainless Torx Screw,Nylon Patch,M6 X 30. SUM SP
    Stainless Torx Screw,Nylon Patch,M6 X 30. SUM SP
  • 17
    250100016 LH Hex. Jam Nut M10. SUMMIT
    LH Hex. Jam Nut M10. SUMMIT
  • 21
    503192496 Washer. SUMMIT
    Washer. SUMMIT
  • 25
    506152019 RH Thread Ball Joint. SUMMIT
    RH Thread Ball Joint. SUMMIT
  • 28
    506152081 LH Thread Ball Joint. SUMMIT
    LH Thread Ball Joint. SUMMIT
  • 31
    506152482 Tie-Rod. SUMMIT
    Tie-Rod. SUMMIT
  • 33
    506152163 Plate
    Plate
  • 34
    506152582 Washer
    Washer
  • 40
    506152518 Lower Vibration Ring
    Lower Vibration Ring
  • 44
    506152297 Housing Bushing
    Housing Bushing
  • 45
    506152395 Steering Support. SUM SP
    Steering Support. SUM SP
  • 46
    506152395 Steering Support
    Steering Support
  • 47
    506152584 Main Tube (Painted)
    Main Tube (Painted)
  • 52
    506152459 Handle Bar (Aluminium). SUM SP
    Handle Bar (Aluminium). SUM SP
  • 55
    506152460 Moulding Strap. SUMMIT
    Moulding Strap. SUMMIT
  • 59
    506152572 Handlebar Extension (205). SUM SP
    Handlebar Extension (205). SUM SP
  • 60
    506152508 Upper Half-Housing
    Upper Half-Housing
  • 61
    506152509 Upper Anti-Vibration Gasket
    Upper Anti-Vibration Gasket
  • 68
    506152541 Steering Pad. SUM SP
    Steering Pad. SUM SP
  • 70
    506152548 Insulant
    Insulant
  • 76
    506152560 Grip 148mm
    Grip 148mm
  • 83
    506152588 Lower Half-Housing. SUMMIT
    Lower Half-Housing. SUMMIT
  • 84
    506152606 Heating Element 28 WATT
    Heating Element 28 WATT
  • 94
    732610010 RH Hex. Jam Nut M10. SUMMIT
    RH Hex. Jam Nut M10. SUMMIT
