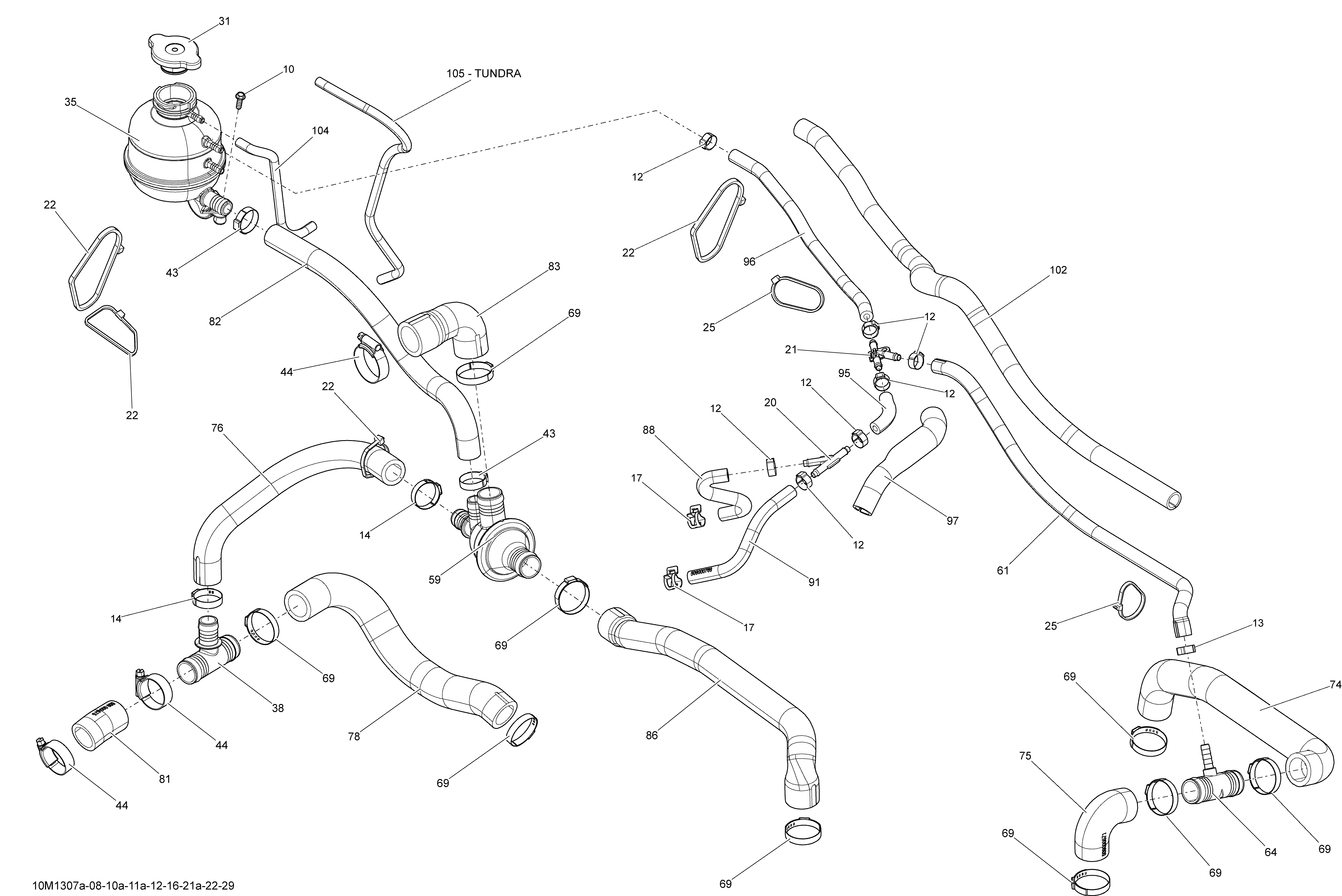

01- Cooling System для BRP Ski-Doo SUMMIT SP 600HOE XP - 2013

  • №
    Артикул
    Название
  • 10
    241151640 Hex. Flanged Screw K50 X 16
    Hex. Flanged Screw K50 X 16
  • 12
    293650046 Oetiker Clamp. 600HO ETEC
    Oetiker Clamp. 600HO ETEC
  • 13
    293650047 Crimp Clamp
    Crimp Clamp
  • 14
    293650099 Oetiker Gear Clamp. Except 600RS
    Oetiker Gear Clamp. Except 600RS
  • 17
    293650210 Spring Clamp. 600HO ETEC
    Spring Clamp. 600HO ETEC
  • 20
    293710059 Y-Fitting. 600HO ETEC
    Y-Fitting. 600HO ETEC
  • 21
    293710140 Y-Fitting. 600HO ETEC
    Y-Fitting. 600HO ETEC
  • 22
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 25
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 31
    509000180 Pressure Cap
    Pressure Cap
  • 35
    509000368 Coolant Tank. Except 600RS
    Coolant Tank. Except 600RS
  • 38
    509000372 T-Fitting
    T-Fitting
  • 43
    509000442 Oetiker Gear Clamp. Except 600RS
    Oetiker Gear Clamp. Except 600RS
  • 44
    509000443 Aba Gear Clamp
    Aba Gear Clamp
  • 59
    509000499 Thermostat Housing. Except 600RS
    Thermostat Housing. Except 600RS
  • 61
    509000502 Bleeder Hose. 600HO ETEC
    Bleeder Hose. 600HO ETEC
  • 64
    509000510 T-Fitting
    T-Fitting
  • 69
    509000529 Oetiker Gear Clamp
    Oetiker Gear Clamp
  • 74
    509000670 Radiator Hose
    Radiator Hose
  • 75
    509000671 Radiator Hose
    Radiator Hose
  • 76
    509000672 Bypass Hose. Except 600RS
    Bypass Hose. Except 600RS
  • 78
    509000673 Radiator Hose
    Radiator Hose
  • 81
    509000675 Engine Inlet Hose. 600HO ETEC
    Engine Inlet Hose. 600HO ETEC
  • 82
    509000676 Filling Hose. 600HO ETEC
    Filling Hose. 600HO ETEC
  • 83
    509000678 Engine Outlet Hose. ETEC
    Engine Outlet Hose. ETEC
  • 86
    509000679 Thermostat Outlet Hose. Except 600RS
    Thermostat Outlet Hose. Except 600RS
  • 88
    509000768 Bleeder Hose. 600HO ETEC
    Bleeder Hose. 600HO ETEC
  • 91
    509000769 Bleeder Hose. 600HO ETEC
    Bleeder Hose. 600HO ETEC
  • 95
    415129508 Bleeder Hose. 600HO ETEC
    Bleeder Hose. 600HO ETEC
  • 96
    415129508 Bleeder Hose. 600HO ETEC
    Bleeder Hose. 600HO ETEC
  • 97
    513033231 Protector Tube, 16 mm. 600HO ETEC
    Protector Tube, 16 mm. 600HO ETEC
  • 102
    415080000 Tubing 16 mm. 600HO ETEC
    Tubing 16 mm. 600HO ETEC
  • 104
    415110000 Polyurethane Hose 5.2 mm. 600HO ETEC Except TUNDRA
    Polyurethane Hose 5.2 mm. 600HO ETEC Except TUNDRA
