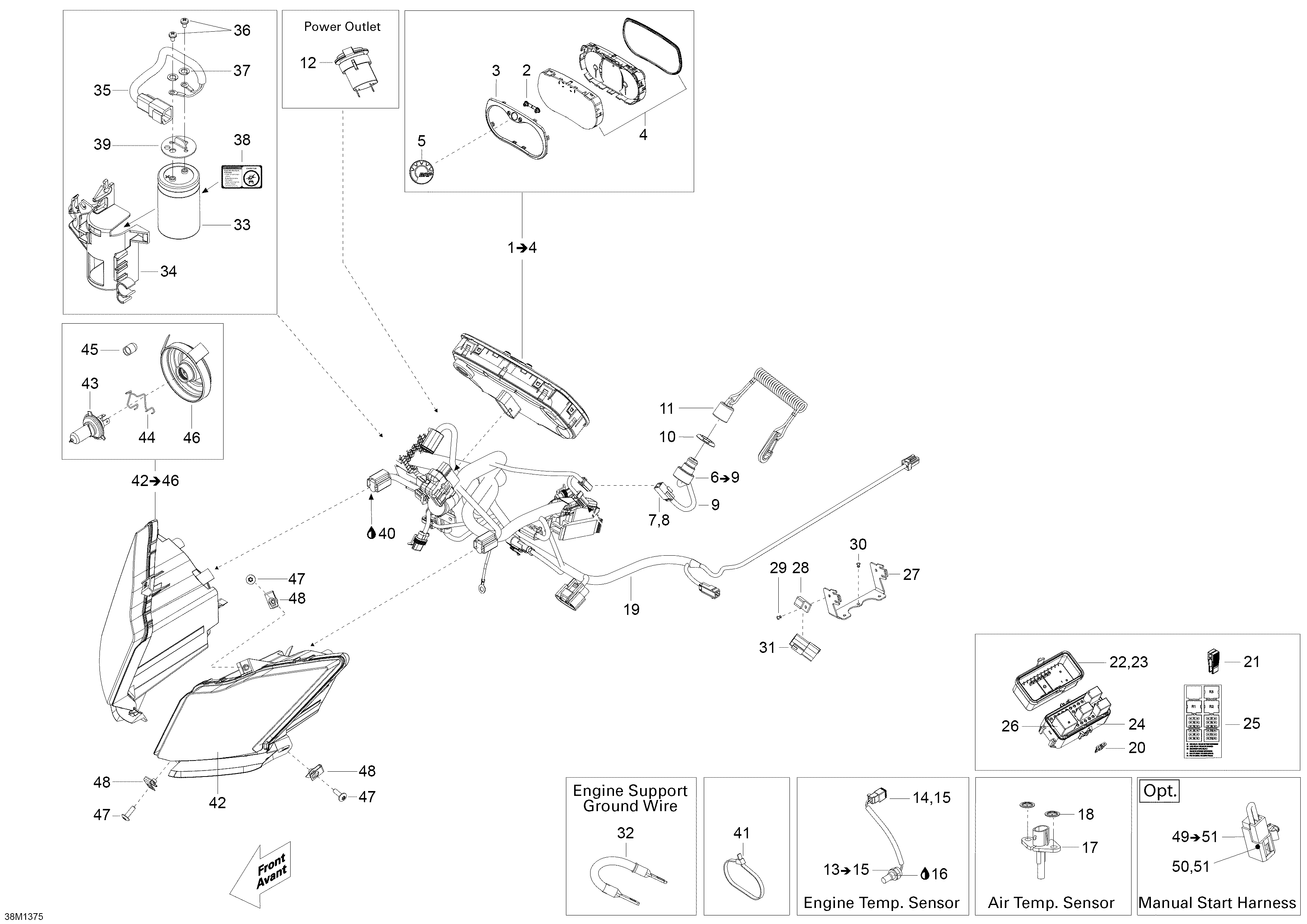

10- Electrical System для BRP Ski-Doo Skandic WT 600HOETEC XU - 2013

  • №
    Артикул
    Название
  • 1
    515177171 Speedometer Ass'y. Includes 1 to 4
    Speedometer Ass'y. Includes 1 to 4
  • 2
    415129355 Speedometer Button
    Speedometer Button
  • 3
    415129348 Gauge Ring
    Gauge Ring
  • 4
    415129349 Lens
    Lens
  • 5
    219902677 Logo BRP, 20 mm
    Logo BRP, 20 mm
  • 6
    515177249 DESS Switch. Includes 6 to 9
    DESS Switch. Includes 6 to 9
  • 7
    515175232 Male Terminal
    Male Terminal
  • 8
    515175494 Male Housing, 3 Circuits
    Male Housing, 3 Circuits
  • 9
    409902000 Tubing 12 mm
    Tubing 12 mm
  • 10
    278000508 Safety Switch Nut
    Safety Switch Nut
  • 11
    515177057 DESS Cap
    DESS Cap
  • 12
    710001248 Outlet DC
    Outlet DC
  • 13
    515176398 Temperature Sensor. Includes 13 to 15
    Temperature Sensor. Includes 13 to 15
  • 14
    515175670 Female Terminal Housing, 2 Circuits
    Female Terminal Housing, 2 Circuits
  • 15
    278000632 Female Terminal
    Female Terminal
  • 17
    515176366 Air Temperature Sensor
    Air Temperature Sensor
  • 18
    389804300 Push Nut
    Push Nut
  • 19
    515177077 Main Harness
    Main Harness
  • 20
    710000742 Little Fuse, 5 Amperes
    Little Fuse, 5 Amperes
  • 20
    710000743 Little Fuse, 7.5 Amperes
    Little Fuse, 7.5 Amperes
  • 20
    710000744 Little Fuse, 10 Amperes
    Little Fuse, 10 Amperes
  • 20
    710000745 Little Fuse, 15 Amperes
    Little Fuse, 15 Amperes
  • 20
    710000746 Little Fuse, 20 Amperes
    Little Fuse, 20 Amperes
  • 20
    710000747 Little Fuse, 30 Amperes
    Little Fuse, 30 Amperes
  • 21
    710000781 Fuse Puller
    Fuse Puller
  • 22
    710001026 Fuse Cover
    Fuse Cover
  • 23
    278002172 Foam
    Foam
  • 24
    710000660 Fuse Box Ass'y
    Fuse Box Ass'y
  • 25
    516005892 Fuse decal ETEC
    Fuse decal ETEC
  • 26
    515176775 Relay, 50 AMP
    Relay, 50 AMP
  • 26
    515176774 Relay, 30 AMP
    Relay, 30 AMP
  • 27
    515177073 Fusebox Support
    Fusebox Support
  • 28
    270000141 Clip
    Clip
  • 29
    293150037 Avdel Rivet 3/16''
    Avdel Rivet 3/16''
  • 30
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 31
    515176234 Female Terminal Housing, 6 Circuits
    Female Terminal Housing, 6 Circuits
  • 32
    515176861 Ground Wire
    Ground Wire
  • 33
    515176349 Capacitor
    Capacitor
  • 34
    515176607 Capacitor Support
    Capacitor Support
  • 35
    515176605 Capacitor Harness
    Capacitor Harness
  • 36
    250000462 Socket Head Screw M10 X 32
    Socket Head Screw M10 X 32
  • 37
    250200026 Lock washer
    Lock washer
  • 38
    516005515 Capacitor Decal (English)
    Capacitor Decal (English)
  • 39
    515177193 Cap
    Cap
  • 41
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 41
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 41
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 42
    517304194 RH Headlamp Ass'y. Includes 42 To 46
    RH Headlamp Ass'y. Includes 42 To 46
  • 42
    517304195 LH Headlamp Ass'y. Includes 42 To 46
    LH Headlamp Ass'y. Includes 42 To 46
  • 43
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 45
    515176498 Cap
    Cap
  • 46
    515176499 Cover
    Cover
  • 47
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 48
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 49
    515176661 Manual Start Harness. Includes 49 to 51
    Manual Start Harness. Includes 49 to 51
  • 50
    515175232 Male Terminal
    Male Terminal
  • 51
    710000667 Male Housing, 2 Circuits
    Male Housing, 2 Circuits
