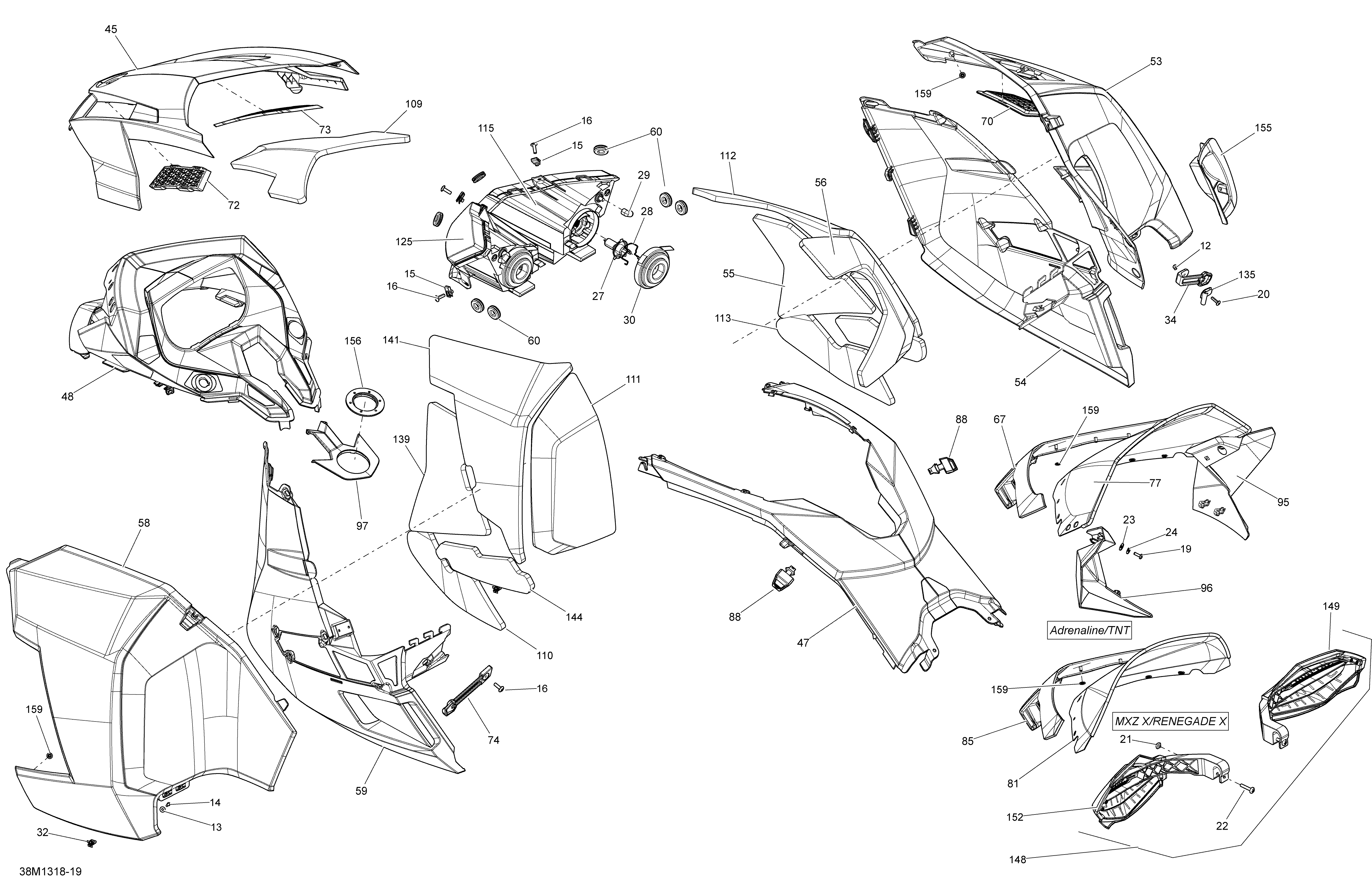

09- Hood, Windshield And Console для BRP Ski-Doo RENEGADE X & ADRENALINE 1200 XR - 2013

  • №
    Артикул
    Название
  • 12
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 13
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 14
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 15
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 16
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 20
    250000465 Torx Screw M5 X 20
    Torx Screw M5 X 20
  • 21
    250000498 Square Nut M6
    Square Nut M6
  • 22
    250000501 Phillips Screw M6 X 35
    Phillips Screw M6 X 35
  • 27
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 28
    515176493 Bulb Holder
    Bulb Holder
  • 29
    515176498 Cap
    Cap
  • 30
    515176499 Cover
    Cover
  • 32
    517302785 Clip
    Clip
  • 34
    517303612 RH Panel Latch
    RH Panel Latch
  • 45
    517303739 Hood, Black
    Hood, Black
  • 45
    517304374 Hood, Bright White
    Hood, Bright White
  • 45
    517305158 Hood, Hybrid White
    Hood, Hybrid White
  • 45
    517305159 Hood, Magnesium
    Hood, Magnesium
  • 47
    517303741 Console, Black
    Console, Black
  • 47
    517304381 Console, Bright White
    Console, Bright White
  • 47
    517305163 Console Ass'y, Magnesium
    Console Ass'y, Magnesium
  • 47
    517305259 Console Ass'y, Hybrid White
    Console Ass'y, Hybrid White
  • 48
    517304915 Indicator Support
    Indicator Support
  • 48
    517305179 Indicator Support. Adrenaline, TNT Model
    Indicator Support. Adrenaline, TNT Model
  • 53
    517303748 Black RH Panel. Adrenaline Model
    Black RH Panel. Adrenaline Model
  • 53
    517304067 RH Pannel. TNT Model
    RH Pannel. TNT Model
  • 53
    517304366 RH Pannel, Bright White. MXZ X, Renegade X Model
    RH Pannel, Bright White. MXZ X, Renegade X Model
  • 54
    517304373 RH Pannel Moulding
    RH Pannel Moulding
  • 55
    517304894 Central Foam Panel RH
    Central Foam Panel RH
  • 56
    517304895 Rear Panel Foam RH
    Rear Panel Foam RH
  • 58
    517303753 LH Pannel, Black. Adrenaline Model
    LH Pannel, Black. Adrenaline Model
  • 58
    517304069 LH Pannel. TNT Model
    LH Pannel. TNT Model
  • 58
    517304355 LH Pannel, Bright White. MXZ X, Renegade X Model
    LH Pannel, Bright White. MXZ X, Renegade X Model
  • 58
    517305327 LH Pannel, Hybrid White
    LH Pannel, Hybrid White
  • 58
    517305174 LH Panel, Magnesium
    LH Panel, Magnesium
  • 59
    517304362 LH Pannel Moulding
    LH Pannel Moulding
  • 60
    517303756 Grommet
    Grommet
  • 70
    517303801 Pannel Grill. MXZ, Renegade
    Pannel Grill. MXZ, Renegade
  • 72
    517303804 LH Hood Grill. MXZ, Renegade
    LH Hood Grill. MXZ, Renegade
  • 73
    517303805 RH Hood Grill. MXZ, Renegade
    RH Hood Grill. MXZ, Renegade
  • 74
    517303808 LH Panel Latch
    LH Panel Latch
  • 77
    517303887 Medium Windshield (395)
    Medium Windshield (395)
  • 81
    517303888 Low Windshield (250). MXZ X, Renegade X Model
    Low Windshield (250). MXZ X, Renegade X Model
  • 85
    517303959 Low Windshield Support. MXZ X, Renegade X Model
    Low Windshield Support. MXZ X, Renegade X Model
  • 88
    517305000 Panel Latch
    Panel Latch
  • 95
    517304024 RH Console Air Deflector. Adrenaline, TNT Model
    RH Console Air Deflector. Adrenaline, TNT Model
  • 96
    517304025 LH Console Air Deflector. Adrenaline, TNT Model
    LH Console Air Deflector. Adrenaline, TNT Model
  • 97
    517304027 Cap Console
    Cap Console
  • 109
    517304892 Hood Foam. MXZ, Renegade
    Hood Foam. MXZ, Renegade
  • 110
    517304900 LH Lower Panel Foam. MXZ, Renegade
    LH Lower Panel Foam. MXZ, Renegade
  • 111
    517304904 LH Rear Panel Foam
    LH Rear Panel Foam
  • 112
    517304907 RH Upper Panel Foam. MXZ, Renegade
    RH Upper Panel Foam. MXZ, Renegade
  • 113
    517304906 RH Lower Panel Foam. MXZ, Renegade
    RH Lower Panel Foam. MXZ, Renegade
  • 115
    517304194 RH Headlamp Ass'y
    RH Headlamp Ass'y
  • 125
    517304195 LH Headlamp Ass'y
    LH Headlamp Ass'y
  • 135
    517304221 Latch Support
    Latch Support
  • 139
    517304898 LH Central Panel Foam. X, TNT Model
    LH Central Panel Foam. X, TNT Model
  • 141
    517304903 LH Upper Panel Foam. X, TNT Model
    LH Upper Panel Foam. X, TNT Model
  • 144
    517304896 Central Foam Panel LH. X, TNT Model
    Central Foam Panel LH. X, TNT Model
  • 148
    860200710 Wind Deflector Kit, Yellow. MXZ X, Renegade X Model
    Wind Deflector Kit, Yellow. MXZ X, Renegade X Model
  • 149
    517305042 RH Wind Deflector, Yellow
    RH Wind Deflector, Yellow
  • 152
    517305043 LH Wind Deflector, Yellow
    LH Wind Deflector, Yellow
  • 155
    517304500 RH Console
    RH Console
  • 156
    517304518 Console Nut
    Console Nut
  • 159
    732610072 Push Nut
    Push Nut
