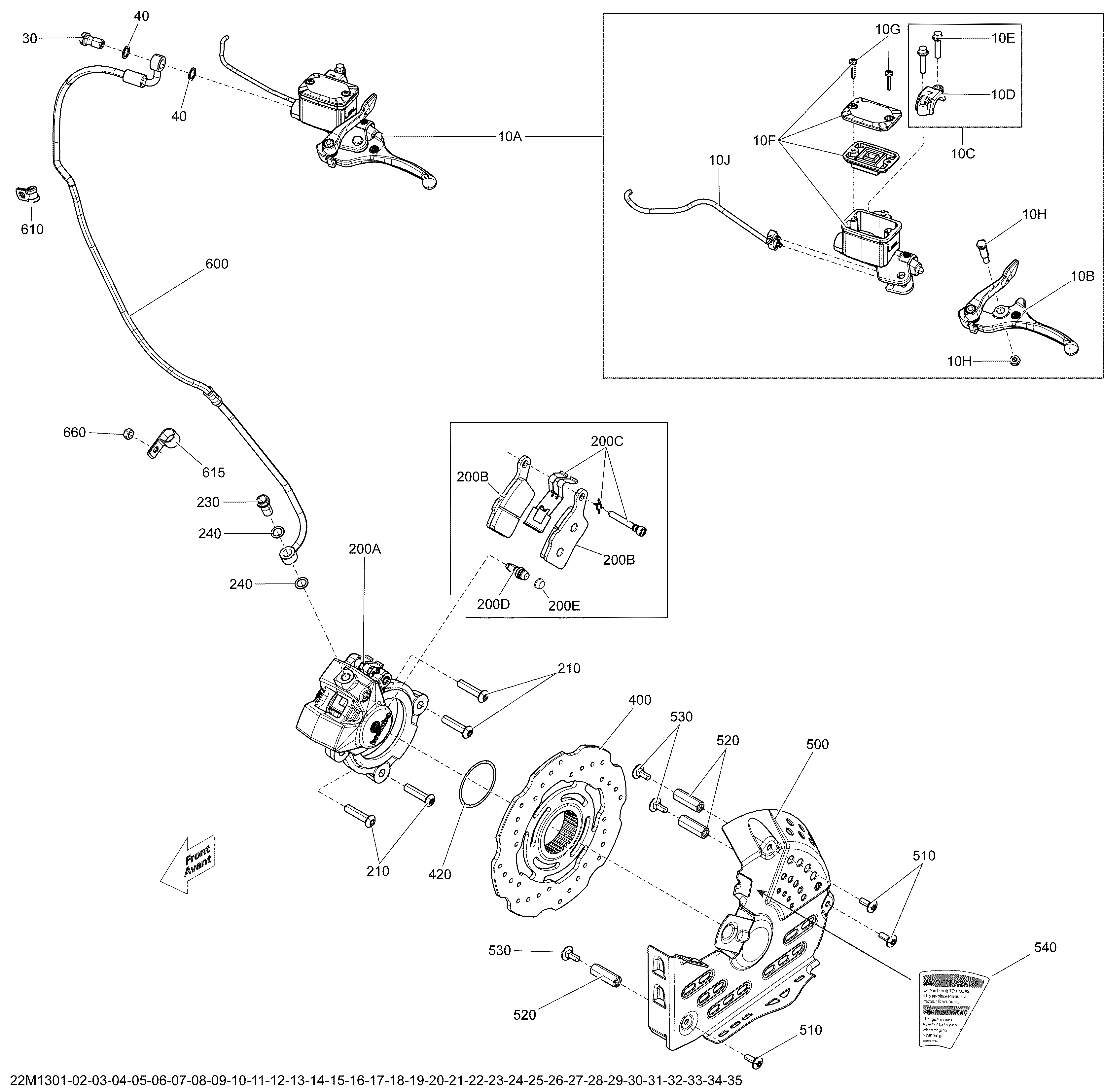

06- Hydraulic Brakes для BRP Ski-Doo RENEGADE BACK COUNTRY X 600HOE - 2013
-
№АртикулНазвание
-
10a507032529 Master Cylinder Ass'y. Includes 10A to 10JMaster Cylinder Ass'y. Includes 10A to 10J
-
10b507032476 LeverLever
-
10c507032477 Clamp And Screw Kit. Includes 10C to 10EClamp And Screw Kit. Includes 10C to 10E
-
10e250000447 Hex Flanged Screw M6 X 25Hex Flanged Screw M6 X 25
-
10f507032478 Master Cylinder Reservoir Ass'y. Includes 10F to 10GMaster Cylinder Reservoir Ass'y. Includes 10F to 10G
-
10g415129356 Screw M4 X 20Screw M4 X 20
-
10h415030000 Pin Ass'yPin Ass'y
-
10j507032479 MicroswitchMicroswitch
-
30507032539 Banjo BoltBanjo Bolt
-
40705600310 Copper WasherCopper Washer
-
200a507032500 Brake Caliper Ass'y. Includes 200A to 200EBrake Caliper Ass'y. Includes 200A to 200E
-
200b507032473 Brake Pads KitBrake Pads Kit
-
200c507032474 Pin, Clip & Spring KitPin, Clip & Spring Kit
-
200d507032475 BleederBleeder
-
200e414989700 BootBoot
-
210250000301 Torx Screw M8 X 35, Scotch GripTorx Screw M8 X 35, Scotch Grip
-
230507032539 Banjo BoltBanjo Bolt
-
240705600310 Copper WasherCopper Washer
-
400507032487 DiskDisk
-
420293300134 O-RingO-Ring
-
500507032492 Disk Protector, BlackDisk Protector, Black
-
510250000223 Torx Screw M6 X 16Torx Screw M6 X 16
-
520507032497 Threaded TubeThreaded Tube
-
530207761644 Carriage Bolt M6 X 16Carriage Bolt M6 X 16
-
540516005525 Warning DecalWarning Decal
-
600507032528 HoseHose
-
610705600459 ClampClamp
-
615518321570 Open ClampOpen Clamp
-
660232561414 Elastic Stop Nut M6Elastic Stop Nut M6
