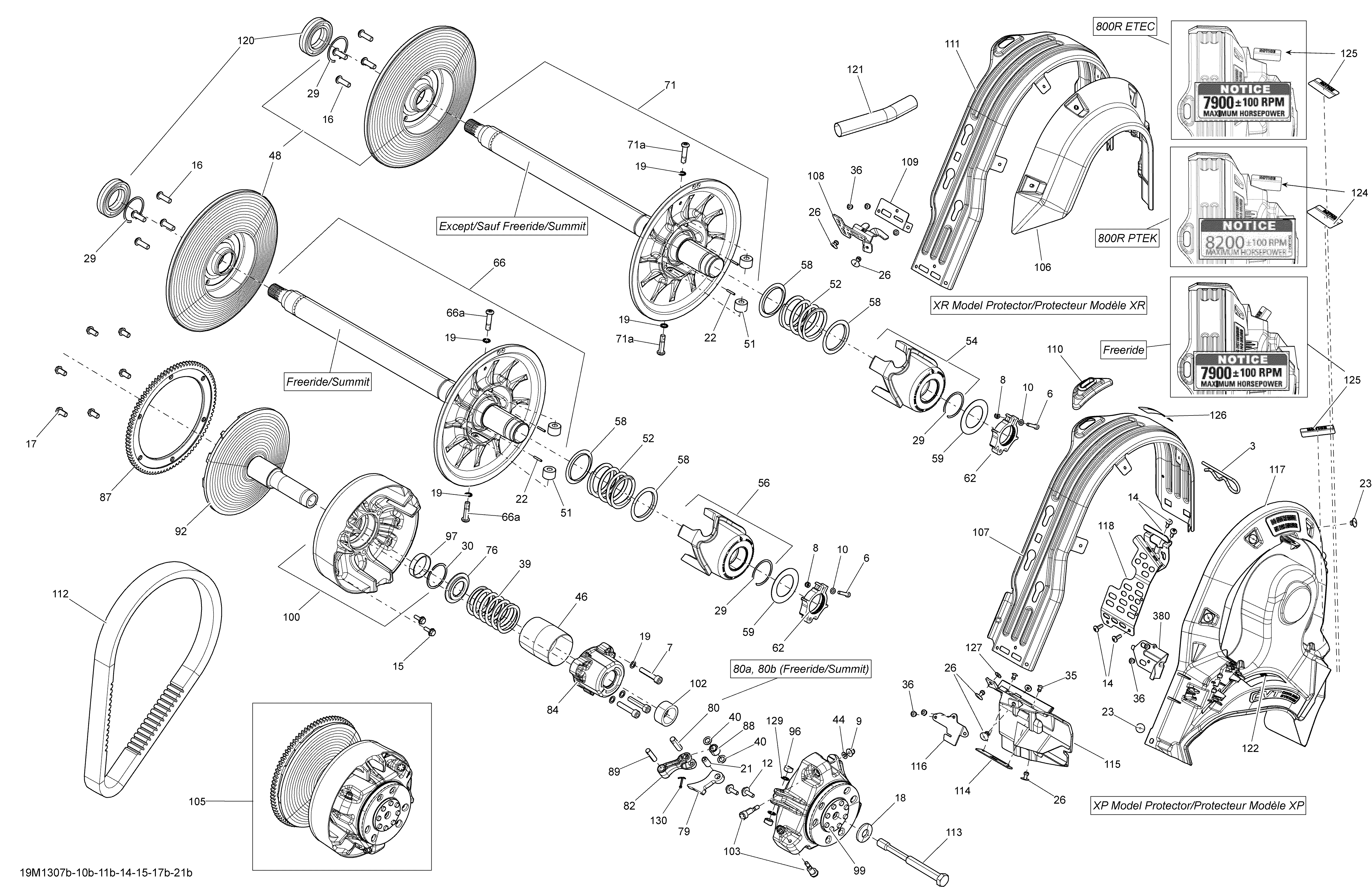

05- Pulley System 800R ETEC для BRP Ski-Doo RENEGADE BACK COUNTRY 800RE XP - 2013

№

Артикул

Название
3

114045200 Hair Pin

Hair Pin
6

205052544 Socket Screw M5 X 25

Socket Screw M5 X 25
7

205084044 Socket Head Screw M8 X 40

Socket Head Screw M8 X 40
8

232551414 Elastic Stop Nut M5

Elastic Stop Nut M5
9

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
10

234051410 Flat Washer M5

Flat Washer M5
12

250000418 Flanged Hex. Screw M6 X 18, Scotch Grip

Flanged Hex. Screw M6 X 18, Scotch Grip
14

250000145 Torx Screw M5 X 14

Torx Screw M5 X 14
15

250000416 Serrated Hex. Flange Bolt M6

Serrated Hex. Flange Bolt M6
16

250000283 Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip
17

250000533 Hex. Flange Screw M8 X 16

Hex. Flange Screw M8 X 16
18

250200006 Spring Washer 14 mm

Spring Washer 14 mm
19

250200009 Lock Washer 8 mm

Lock Washer 8 mm
21

250400050 Spring Pin M10 X 22

Spring Pin M10 X 22
22

250400061 Spring Pin M3 X 18

Spring Pin M3 X 18
23

293150103 Pop Rivet 3/16''

Pop Rivet 3/16''
26

293150104 Pop Rivet 3/16''

Pop Rivet 3/16''
29

293370049 Circlip

Circlip
30

293370071 Circlip

Circlip
35

390909100 Avex Rivet

Avex Rivet
36

390909200 Avex Rivet

Avex Rivet
39

415034900 Spring, Violet/blue

Spring, Violet/blue
40

417004302 Stopper Washer

Stopper Washer
44

417005600 Washer

Washer
46

417009205 Guard

Guard
48

417126955 Sliding Flange Ass'y

Sliding Flange Ass'y
51

417127016 Roller

Roller
52

417127137 Spring

Spring
54

417126973 Cam Ass'y

Cam Ass'y
58

417127116 Swivel Abutment

Swivel Abutment
59

417127155 Washer

Washer
62

415129604 Calibration Ass'y

Calibration Ass'y
71

417127332 Fix Flange Ass'y

Fix Flange Ass'y
76

417222312 Spring Seat

Spring Seat
79

417222508 Ramp 413

Ramp 413
80

417222594 Pin

Pin
82

417222671 Lever

Lever
84

417222759 Spring Cover Ass'y

Spring Cover Ass'y
87

417222952 Ring Gear

Ring Gear
88

417222947 Roller

Roller
89

417223164 Lever Axle

Lever Axle
92

417223232 Fixed Flange Ass'y

Fixed Flange Ass'y
96

417223271 Slider Shoe

Slider Shoe
97

417223086 Bushing

Bushing
99

417223666 Governor Cup Ass'y

Governor Cup Ass'y
100

417223444 Sliding Flange Ass'y

Sliding Flange Ass'y
102

417223471 Bushing

Bushing
103

417223501 Calibration Screw

Calibration Screw
107

417300357 Belt Guard

Belt Guard
110

417300381 Guide

Guide
112

417300391 Belt

Belt
113

417300409 TRA 7 Bolt (M14 X 153.5 mm)

TRA 7 Bolt (M14 X 153.5 mm)
114

417300421 Reinforcement Plate

Reinforcement Plate
115

417300422 Front Support

Front Support
116

417300423 Front Bracket

Front Bracket
117

417300439 CVT Air Duct

CVT Air Duct
118

417300448 Belt Guard Bracket

Belt Guard Bracket
120

504152574 Ball Bearing

Ball Bearing
122

516005503 Decal, English

Decal, English
125

516005507 RPM Sticker, English

RPM Sticker, English
126

516005509 Safety Belt Guard Decal

Safety Belt Guard Decal
127

517225900 Flat Washer

Flat Washer
129

732401030 O-Ring

O-Ring
130

250400060 Cotter Pin

Cotter Pin
380

417300445 Stopper

Stopper
66a

417127294 Pivot Stud

Pivot Stud
71a

417127294 Pivot Stud

Pivot Stud
