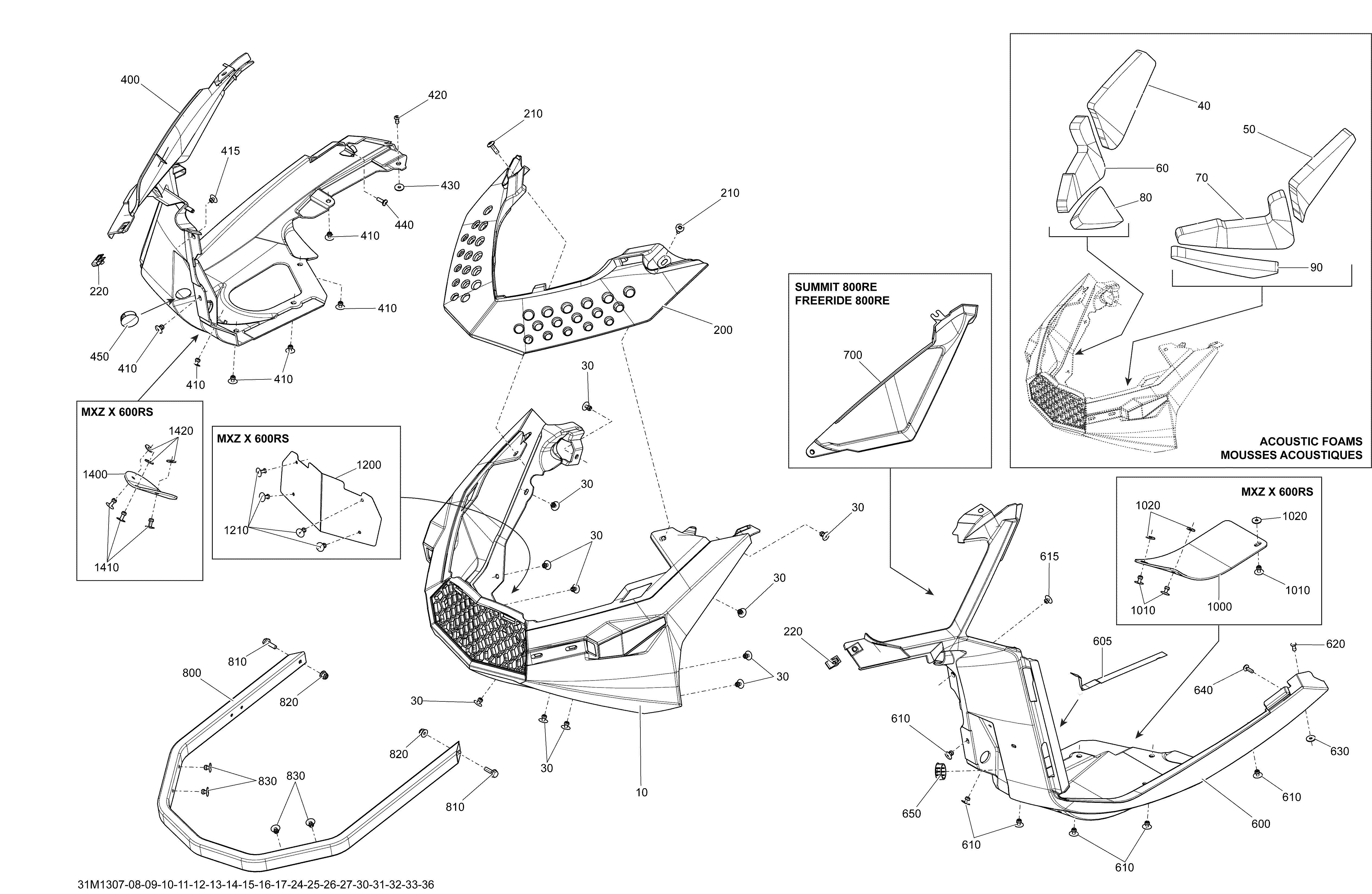

09- Bottom Pan для BRP Ski-Doo RENEGADE ADRENALINE 600HOE - 2013

  • №
    Артикул
    Название
  • 10
    502006971 Black Front Bottom Pan
    Black Front Bottom Pan
  • 30
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 40
    502007210 RH Foam Upper
    RH Foam Upper
  • 50
    502007211 LH Foam Upper
    LH Foam Upper
  • 60
    502007212 RH Middle Foam
    RH Middle Foam
  • 70
    502007213 LH Middle Foam
    LH Middle Foam
  • 80
    502007214 RH Lower Foam
    RH Lower Foam
  • 90
    502007215 LH Lower Foam
    LH Lower Foam
  • 200
    502007068 Bottom Pan Cap
    Bottom Pan Cap
  • 210
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 220
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 400
    502006831 RH Bottom Pan
    RH Bottom Pan
  • 410
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 415
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 420
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 430
    517124300 Washer
    Washer
  • 440
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 450
    414916600 Nylon Cap
    Nylon Cap
  • 600
    502007252 LH Bottom Pan. 600HO ETEC
    LH Bottom Pan. 600HO ETEC
  • 600
    502007252 LH Bottom Pan. 800R ETEC
    LH Bottom Pan. 800R ETEC
  • 605
    293250087 Gasket, Neoprene
    Gasket, Neoprene
  • 610
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 615
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 620
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 630
    517124300 Washer
    Washer
  • 640
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 650
    414916600 Nylon Cap
    Nylon Cap
  • 800
    502007116 Front Bumper
    Front Bumper
  • 810
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 820
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 830
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
