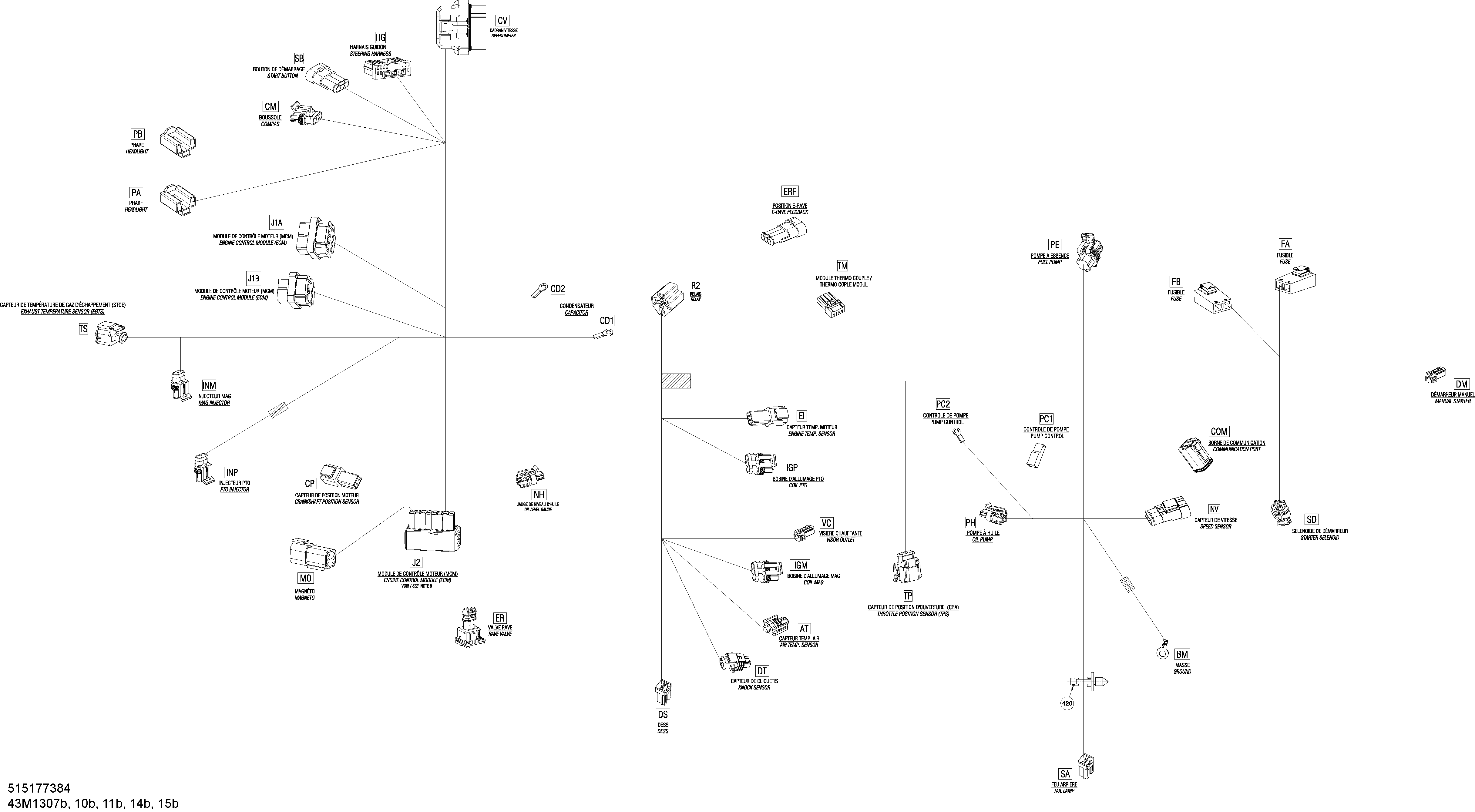

10- Electrical Harness Main, 800RETEC для BRP Ski-Doo MXZ XRS 800RE XP - 2013
-
№АртикулНазвание
-
3000515177384 Frame Harness. 800RE Except SEFrame Harness. 800RE Except SE
-
AT515176890 Female Terminal HousingFemale Terminal Housing
-
AT710001163 Wire SealWire Seal
-
AT710001164 Female TerminalFemale Terminal
-
BM278000992 Open BarrelOpen Barrel
-
CD1515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
CD1515175504 Ring TerminalRing Terminal
-
CD2515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
CD2515175504 Ring TerminalRing Terminal
-
CM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
CM515176621 Wire SealWire Seal
-
CM710001340 Female TerminalFemale Terminal
-
CM293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
COM515175673 Male Housing, 6 CircuitsMale Housing, 6 Circuits
-
COM515175678 Male Wedge, 6 CircuitsMale Wedge, 6 Circuits
-
COM293000052 Sealing CapSealing Cap
-
COM278000632 Female TerminalFemale Terminal
-
CP515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
CP409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
CP278000631 Male TerminalMale Terminal
-
CV515175801 Female Housing, 24 CircuitsFemale Housing, 24 Circuits
-
CV515175802 Retainer BlockRetainer Block
-
CV515175812 PlugPlug
-
CV710000399 Female HousingFemale Housing
-
CV515175803 Wire SealWire Seal
-
CV515175806 Female TerminalFemale Terminal
-
CV710001131 Female TerminalFemale Terminal
-
DM515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
DM515175231 Female TerminalFemale Terminal
-
DS515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
DS515175231 Female TerminalFemale Terminal
-
DT278001005 Male Housing, 2 CircuitsMale Housing, 2 Circuits
-
DT415128501 SealSeal
-
DT278000998 Female TerminalFemale Terminal
-
EI515175665 Male Terminal Housing, 2 CircuitsMale Terminal Housing, 2 Circuits
-
EI409207500 Male Lock, 2 CircuitsMale Lock, 2 Circuits
-
EI278000631 Male TerminalMale Terminal
-
ER415128500 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
ER415128501 SealSeal
-
ER278000998 Female TerminalFemale Terminal
-
ERF710000568 HousingHousing
-
ERF515176621 Wire SealWire Seal
-
ERF515176164 Male TerminalMale Terminal
-
FA710000992 ClipClip
-
FA293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FA409004000 Fuse HolderFuse Holder
-
FA409004200 Female TerminalFemale Terminal
-
FB710000992 ClipClip
-
FB293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
FB278000344 Fuse, 5 AmperesFuse, 5 Amperes
-
FB409004000 Fuse HolderFuse Holder
-
FB409011600 Female TerminalFemale Terminal
-
FB409004200 Female TerminalFemale Terminal
-
HG515175349 Female Terminal Housing, 13 CircuitsFemale Terminal Housing, 13 Circuits
-
HG515175282 Female TerminalFemale Terminal
-
HG515175231 Female TerminalFemale Terminal
-
IGM409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGM278001013 Wire SealWire Seal
-
IGM278001014 Female TerminalFemale Terminal
-
IGP409209600 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
IGP278001013 Wire SealWire Seal
-
IGP278001014 Female TerminalFemale Terminal
-
INM293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
INM409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INM278001013 Wire SealWire Seal
-
INM278001014 Female TerminalFemale Terminal
-
INM710002712 Tie-RapTie-Rap
-
INP293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
INP409209500 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
INP278001013 Wire SealWire Seal
-
INP278001014 Female TerminalFemale Terminal
-
INP710002712 Tie-RapTie-Rap
-
J1A515176342 Female Terminal Housing, 34 CircuitsFemale Terminal Housing, 34 Circuits
-
J1A515175812 PlugPlug
-
J1A515176541 Female TerminalFemale Terminal
-
J1A515176348 Female TerminalFemale Terminal
-
J1B515176341 Female Terminal Housing, 26 CircuitsFemale Terminal Housing, 26 Circuits
-
J1B515175812 PlugPlug
-
J1B515176541 Female TerminalFemale Terminal
-
J1B515176348 Female TerminalFemale Terminal
-
J2515176340 Female Terminal Housing, 16 CircuitsFemale Terminal Housing, 16 Circuits
-
J2415128501 SealSeal
-
J2278000998 Female TerminalFemale Terminal
-
MO515175668 Male Terminal Housing, 6 CircuitsMale Terminal Housing, 6 Circuits
-
MO278000735 Female Lock, 6 CircuitsFemale Lock, 6 Circuits
-
MO278000631 Male TerminalMale Terminal
-
NH515177192 Female HousingFemale Housing
-
NH710001233 SealSeal
-
NH710001164 Female TerminalFemale Terminal
-
NV710000992 ClipClip
-
NV710000568 HousingHousing
-
NV515176621 Wire SealWire Seal
-
NV515176164 Male TerminalMale Terminal
-
PA515176908 Female HousingFemale Housing
-
PA515176909 TerminalTerminal
-
PB515176908 Female HousingFemale Housing
-
PB515176909 TerminalTerminal
-
PC1409010400 Female Terminal Housing, 1 CircuitFemale Terminal Housing, 1 Circuit
-
PC1409010100 Female TerminalFemale Terminal
-
PC2515177246 Shrink Tubing, 6 mmShrink Tubing, 6 mm
-
PC2515175504 Ring TerminalRing Terminal
-
PE710001132 HousingHousing
-
PE710001133 LockLock
-
PE278001482 SealSeal
-
PE710000643 SealSeal
-
PE278001481 Female TerminalFemale Terminal
-
PH515177192 Female HousingFemale Housing
-
PH710001332 Seal WireSeal Wire
-
PH710000925 TerminalTerminal
-
R2409209900 Female Housing, 5 CircuitsFemale Housing, 5 Circuits
-
R2409205300 Wire SealWire Seal
-
R2409203300 Female TerminalFemale Terminal
-
SA515175495 Female Housing, 3 CircuitsFemale Housing, 3 Circuits
-
SA515175231 Female TerminalFemale Terminal
-
SB710000568 HousingHousing
-
SB515176621 Wire SealWire Seal
-
SB515176164 Male TerminalMale Terminal
-
SD515177192 Female HousingFemale Housing
-
SD710001233 SealSeal
-
SD710001164 Female TerminalFemale Terminal
-
TM515177048 Female Terminal Housing, 4 CircuitFemale Terminal Housing, 4 Circuit
-
TM515177051 Lock, 4 CircuitsLock, 4 Circuits
-
TM515177050 SealSeal
-
TM515177049 Female TerminalFemale Terminal
-
TP278002521 Female Terminal Housing, 3 CircuitsFemale Terminal Housing, 3 Circuits
-
TP415128501 SealSeal
-
TP278000998 Female TerminalFemale Terminal
-
TS278002520 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
TS415128501 SealSeal
-
TS278000998 Female TerminalFemale Terminal
-
VC515175658 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
VC515175231 Female TerminalFemale Terminal
