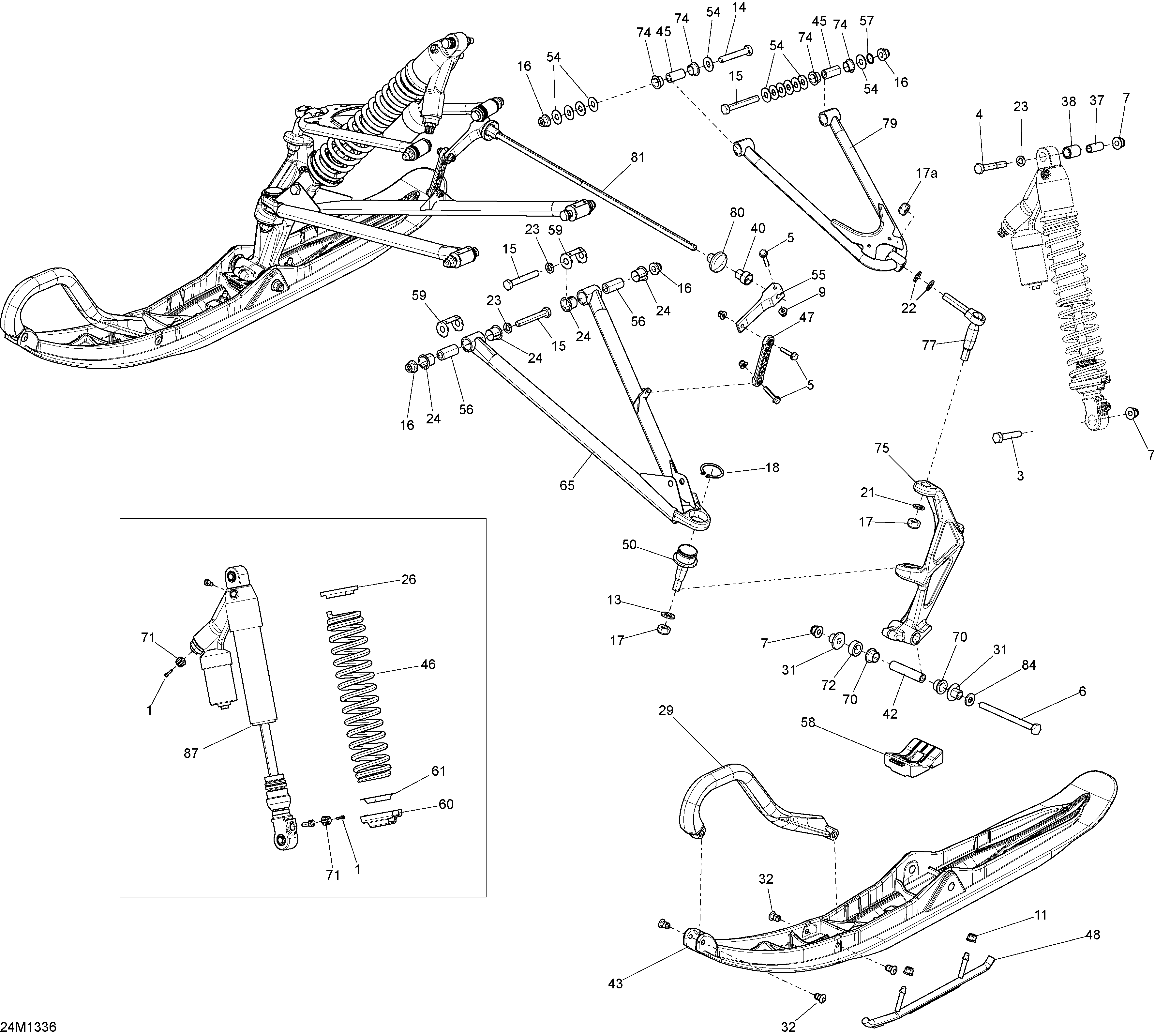

07- Front Suspension And Ski для BRP Ski-Doo MXZ X 600RS XP - 2013
-
№АртикулНазвание
-
1250000644 Allen Screw M3 X 10Allen Screw M3 X 10
-
3207005554 Hex Screw M10 X 55Hex Screw M10 X 55
-
4207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
5207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
6230003054 Hex Screw M10 X 130Hex Screw M10 X 130
-
7233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
9233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
13503192491 WasherWasher
-
14250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
15250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
16250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
17232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
17a250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
18293370035 CirclipCirclip
-
21503189276 WasherWasher
-
22503189276 WasherWasher
-
23503189564 WasherWasher
-
24503191766 CushionCushion
-
29505073138 Handle, BlackHandle, Black
-
31505071781 CushionCushion
-
32505071812 RetainerRetainer
-
32b505072133 RetainerRetainer
-
40505072064 BushingBushing
-
42506133300 SpacerSpacer
-
43505072205 Pilot Ski 5.7XPilot Ski 5.7X
-
45505072143 BushingBushing
-
46505073272 Painted SpringPainted Spring
-
46505073272 Painted SpringPainted Spring
-
47505072204 Double Ball Joint LinkDouble Ball Joint Link
-
48860200031 Carbide Runners KitCarbide Runners Kit
-
50505072682 Lower Ball JointLower Ball Joint
-
54505072392 WasherWasher
-
55505072394 Stabilisator LeverStabilisator Lever
-
56505072401 Aluminum BushingAluminum Bushing
-
57505072448 O-RingO-Ring
-
58505072594 Ski StopperSki Stopper
-
59505072634 Wear PlateWear Plate
-
60505072635 Spring StopperSpring Stopper
-
60505072635 Spring StopperSpring Stopper
-
61706200793 CapCap
-
61706200793 CapCap
-
65505072654 RH Lower ArmRH Lower Arm
-
65505072655 LH Lower ArmLH Lower Arm
-
70505072690 Leg CushionLeg Cushion
-
71505072753 Adjustment KnobAdjustment Knob
-
71505072753 Adjustment KnobAdjustment Knob
-
72505072807 SpacerSpacer
-
74505073018 BushingBushing
-
75505073273 LH Painted Ski LegLH Painted Ski Leg
-
75505073274 RH Painted Ski LegRH Painted Ski Leg
-
77505073316 Upper Ball JointUpper Ball Joint
-
79505073322 LH Upper ArmLH Upper Arm
-
79505073323 RH Upper ArmRH Upper Arm
-
80572091300 CapCap
-
81505072602 StabilisatorStabilisator
-
84503192496 WasherWasher
-
87505073145 RH Front Shock. Includes 87 to 87hRH Front Shock. Includes 87 to 87h
-
87505073146 LH Front Shock. Includes 87 to 87hLH Front Shock. Includes 87 to 87h
-
87c415093807 O-RingO-Ring
-
87d415093806 Piston RingPiston Ring
-
87e505070398 Air ValveAir Valve
-
87f505070399 ScrewScrew
-
87g505070400 O-RingO-Ring
-
87h415093804 O-RingO-Ring
