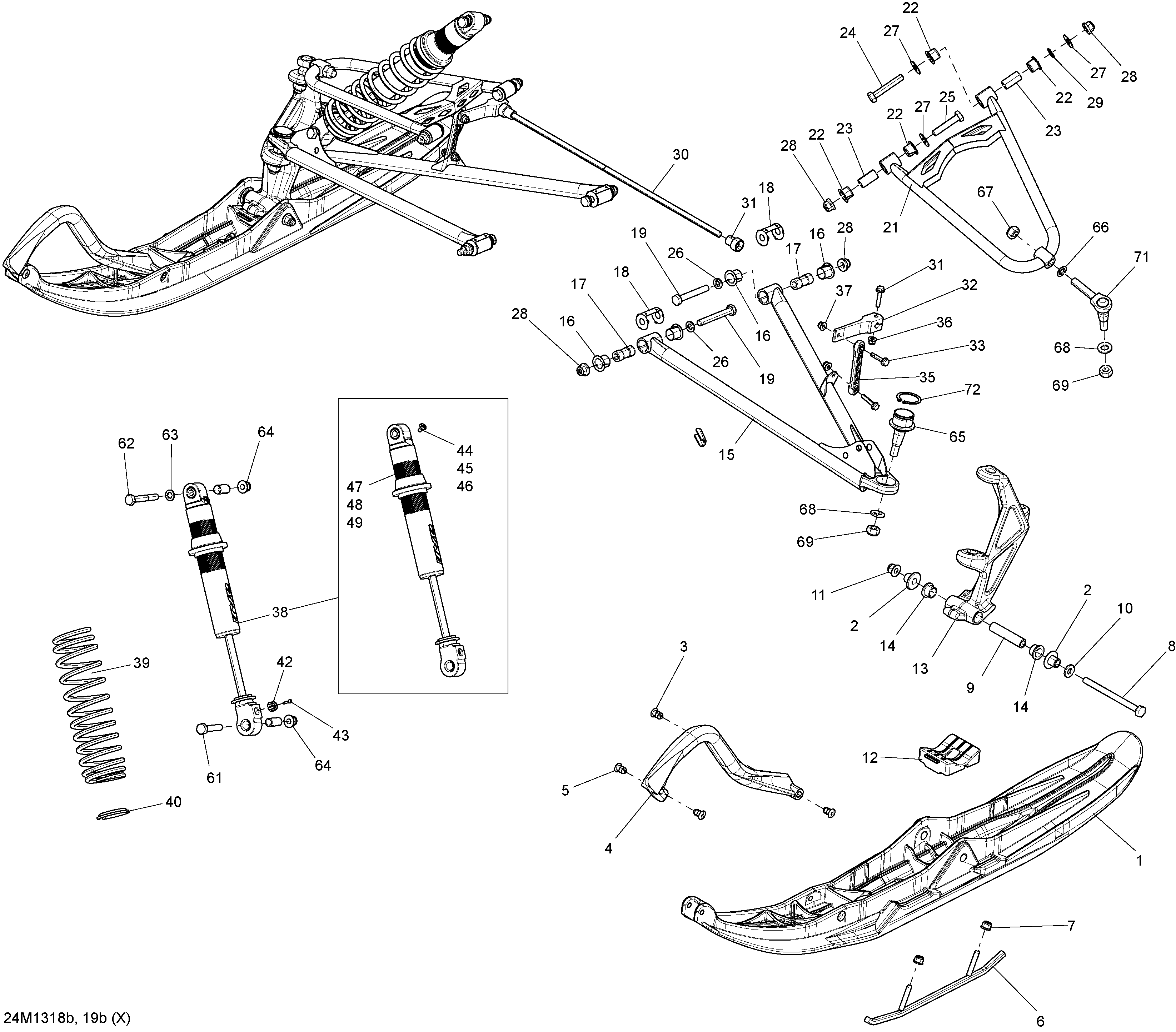

07- Front Suspension And Ski X для BRP Ski-Doo MXZ X & TNT 1200 XR - 2013

  • №
    Артикул
    Название
  • 1
    505072943 RH Pilot Ski, Black
    RH Pilot Ski, Black
  • 1
    505072942 LH Pilot Ski, Black
    LH Pilot Ski, Black
  • 2
    505071781 Cushion
    Cushion
  • 3
    505071812 Retainer
    Retainer
  • 4
    505070963 Handle, Black
    Handle, Black
  • 5
    505072133 Retainer
    Retainer
  • 6
    860200141 Carbide Runner Kit. MX-Z
    Carbide Runner Kit. MX-Z
  • 7
    233281414 Hex. Flanged Elastic Nut M8. MX-Z
    Hex. Flanged Elastic Nut M8. MX-Z
  • 8
    230003054 Hex Screw M10 X 130
    Hex Screw M10 X 130
  • 9
    506133300 Spacer
    Spacer
  • 10
    503192496 Washer
    Washer
  • 11
    233201464 Hex. Elast. Flanged Nut M10
    Hex. Elast. Flanged Nut M10
  • 12
    505072594 Ski Stopper
    Ski Stopper
  • 13
    505073173 LH Ski Leg. MX-Z X
    LH Ski Leg. MX-Z X
  • 13
    505073174 RH Ski Leg. MX-Z X
    RH Ski Leg. MX-Z X
  • 14
    505072690 Leg Cushion
    Leg Cushion
  • 15
    505072664 Black RH Lower Arm. MX-Z X
    Black RH Lower Arm. MX-Z X
  • 15
    505072665 LH Lower Arm. MX-Z X
    LH Lower Arm. MX-Z X
  • 16
    505072208 Bushing
    Bushing
  • 17
    505072393 Bushing
    Bushing
  • 18
    505072634 Wear Plate
    Wear Plate
  • 19
    250000291 Screw Hex. M10 X 70. XR
    Screw Hex. M10 X 70. XR
  • 20
    250000218 Hex. Screw M10 X 75. XR
    Hex. Screw M10 X 75. XR
  • 21
    505072374 Upper Arm. XR MX-Z
    Upper Arm. XR MX-Z
  • 22
    505072250 Bushing
    Bushing
  • 23
    505072143 Bushing
    Bushing
  • 24
    250000290 Screw Hex. M10 X 60
    Screw Hex. M10 X 60
  • 25
    250000289 Screw Hex. M10 X 50
    Screw Hex. M10 X 50
  • 26
    503189564 Washer
    Washer
  • 27
    505072392 Washer
    Washer
  • 28
    250100088 Hex. Elastic Hex. Nut M10
    Hex. Elastic Hex. Nut M10
  • 29
    505072448 O-Ring
    O-Ring
  • 30
    505072602 Stabilisator. Except SUM, Except GTX 1000
    Stabilisator. Except SUM, Except GTX 1000
  • 31
    505072064 Bushing. Except SUM, Except GTX 1000
    Bushing. Except SUM, Except GTX 1000
  • 32
    505072394 Stabilisator Lever. Except SUM, Except GTX 1000
    Stabilisator Lever. Except SUM, Except GTX 1000
  • 33
    207663056 Hex Flanged Screw M6 X 30
    Hex Flanged Screw M6 X 30
  • 34
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 35
    505072204 Double Ball Joint Link
    Double Ball Joint Link
  • 36
    207663056 Hex Flanged Screw M6 X 30
    Hex Flanged Screw M6 X 30
  • 37
    233261466 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 38
    505073117 Front Shock. MX-Z X 1000
    Front Shock. MX-Z X 1000
  • 39
    505072761 Painted Spring. MX-Z X 1000
    Painted Spring. MX-Z X 1000
  • 40
    503192608 Spring Stopper. MX-Z X 1000
    Spring Stopper. MX-Z X 1000
  • 42
    505072753 Adjustment Knob. MX-Z X 1000
    Adjustment Knob. MX-Z X 1000
  • 43
    205031060 Socket Screw M3 X 10. MX-Z X 1000
    Socket Screw M3 X 10. MX-Z X 1000
  • 44
    505070400 O-Ring. MX-Z X 1000
    O-Ring. MX-Z X 1000
  • 45
    505070399 Screw. MX-Z X 1000
    Screw. MX-Z X 1000
  • 46
    505070398 Air Valve. MX-Z X 1000
    Air Valve. MX-Z X 1000
  • 47
    503189308 Piston Ring. MX-Z X 1000
    Piston Ring. MX-Z X 1000
  • 48
    414888312 O-Ring. MX-Z X 1000
    O-Ring. MX-Z X 1000
  • 61
    207005554 Hex Screw M10 X 55
    Hex Screw M10 X 55
  • 62
    207006544 Hex. Screw M10 X 65
    Hex. Screw M10 X 65
  • 63
    503189564 Washer
    Washer
  • 64
    233201464 Hex. Elast. Flanged Nut M10
    Hex. Elast. Flanged Nut M10
  • 65
    505072682 Lower Ball Joint
    Lower Ball Joint
  • 66
    503189276 Washer. XR
    Washer. XR
  • 67
    250100089 Hex. Elastic Hex. Nut M12. XR
    Hex. Elastic Hex. Nut M12. XR
  • 68
    503192491 Washer
    Washer
  • 69
    232521464 Hex Elastic Nut M12
    Hex Elastic Nut M12
  • 71
    505072257 Upper Ball Joint. XR
    Upper Ball Joint. XR
  • 72
    293370035 Circlip
    Circlip
