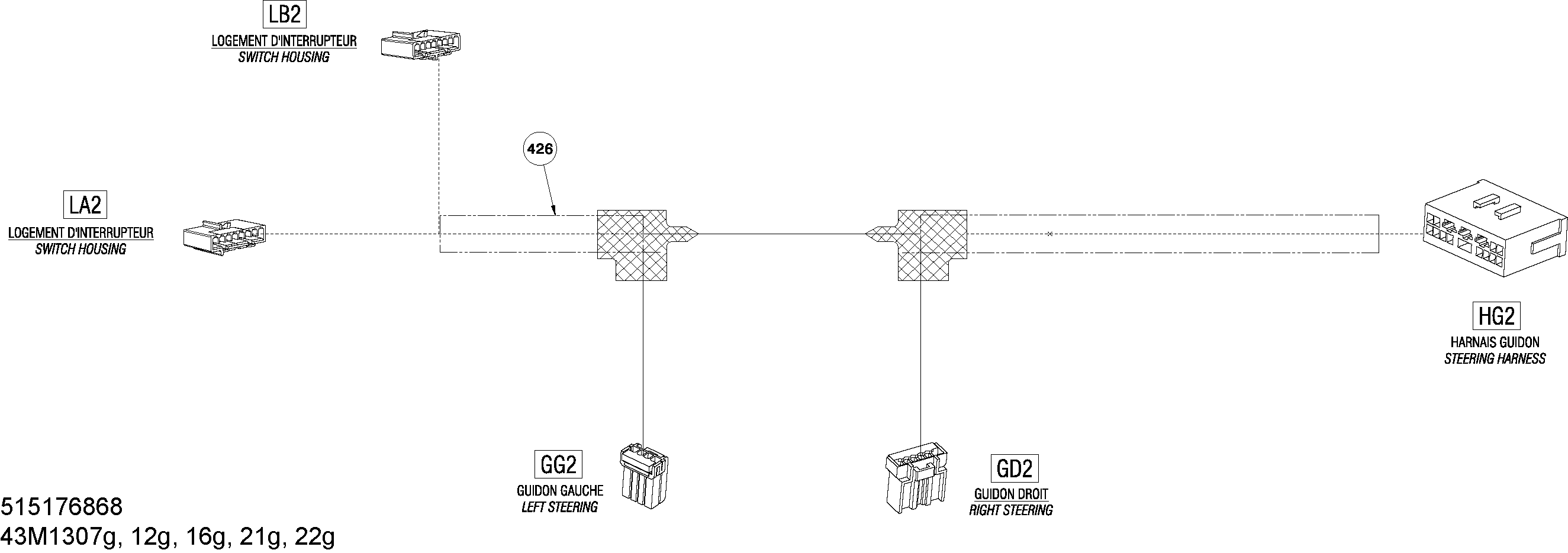

10- Electrical Harness Steerring для BRP Ski-Doo GSX LE 600HOE XP - 2013
-
№АртикулНазвание
-
3200515176868 Steering Wiring Harness Ass'y. GSXSteering Wiring Harness Ass'y. GSX
-
426515175830 Low Temperature Tubing 1/2''Low Temperature Tubing 1/2''
-
GD2515175231 Female TerminalFemale Terminal
-
GD2515175543 Female Terminal Housing, 6 CircuitsFemale Terminal Housing, 6 Circuits
-
GG2515175845 Female Terminal Housing, 4 CircuitsFemale Terminal Housing, 4 Circuits
-
GG2515175231 Female TerminalFemale Terminal
-
HG2515175232 Male TerminalMale Terminal
-
HG2515175273 Male TerminalMale Terminal
-
HG2515175351 Male Terminal Housing, 15 CircuitsMale Terminal Housing, 15 Circuits
-
LA2515175808 Female TerminalFemale Terminal
-
LA2515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
LA2515175807 Female Terminal Housing 8 Circuits BlackFemale Terminal Housing 8 Circuits Black
-
LA2515175941 Female TerminalFemale Terminal
-
LB2515175810 Female Terminal Housing, 8 CircuitsFemale Terminal Housing, 8 Circuits
-
LB2515175809 Femelle Lock, 8 CircuitsFemelle Lock, 8 Circuits
-
LB2515175808 Female TerminalFemale Terminal
-
LB2515175941 Female TerminalFemale Terminal
