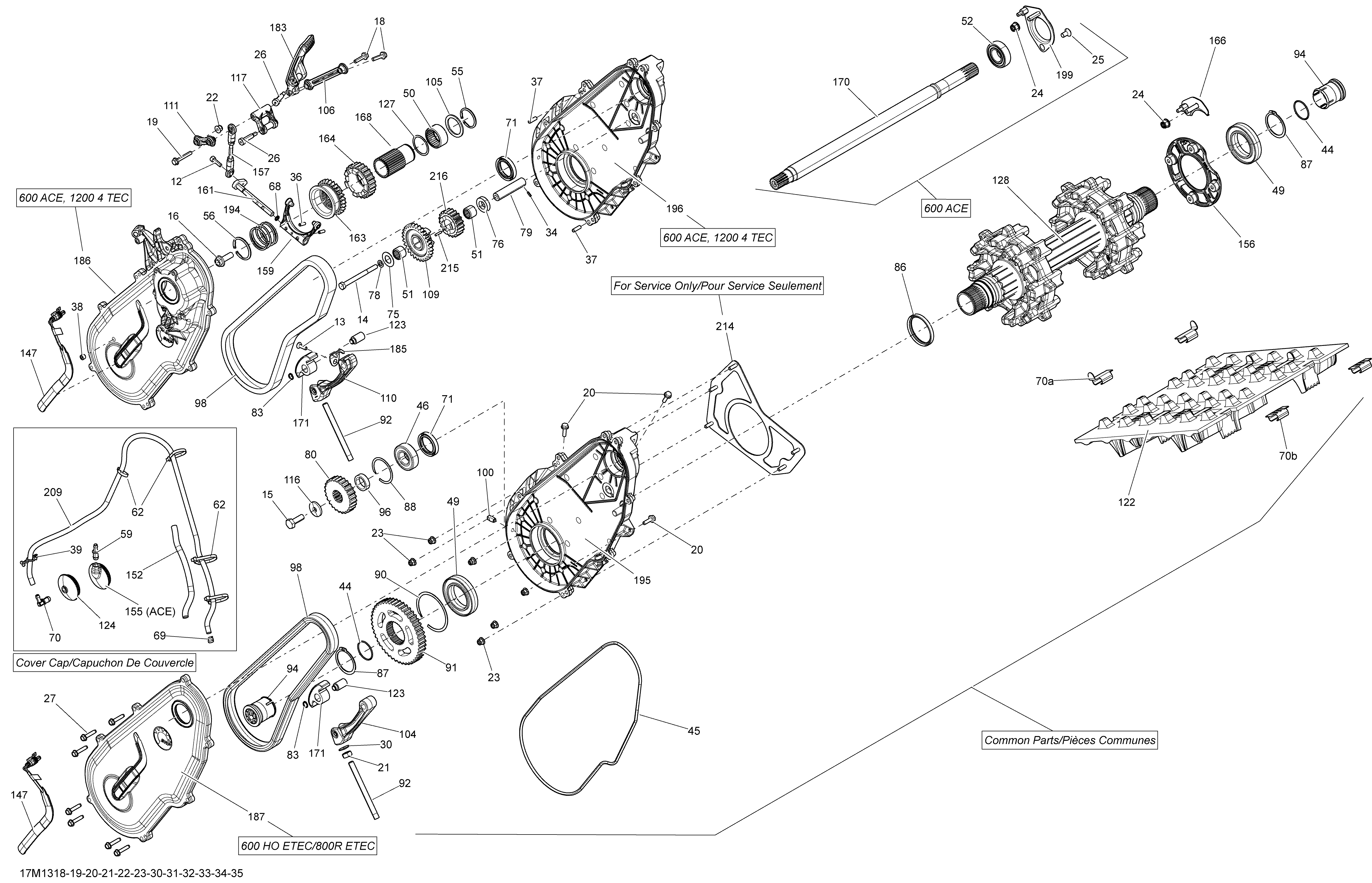

05- Drive System для BRP Ski-Doo GRAND TOURING LE & SE 1200 XR - 2013

  • №
    Артикул
    Название
  • 12
    207564044 Socket Head Screw M6 X 40, Scotch Grip
    Socket Head Screw M6 X 40, Scotch Grip
  • 13
    205862044 Socket Head Screw M6 X 20, Scotch Grip
    Socket Head Screw M6 X 20, Scotch Grip
  • 14
    207089044 Hex. Screw M8 X 90
    Hex. Screw M8 X 90
  • 15
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 16
    207503046 Hex. Flanged Screw M10 X 30, Scotch Grip
    Hex. Flanged Screw M10 X 30, Scotch Grip
  • 18
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 19
    207564044 Socket Head Screw M6 X 40, Scotch Grip
    Socket Head Screw M6 X 40, Scotch Grip
  • 20
    207662034 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 21
    232006414 Hex. Nut M10
    Hex. Nut M10
  • 22
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 23
    233261434 Flanged Elastic Nut M6
    Flanged Elastic Nut M6
  • 24
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 26
    250000340 Socket Head Screw M8 X 25, Scotch Grip
    Socket Head Screw M8 X 25, Scotch Grip
  • 27
    210263080 Hex. Flanged Screw M6 X 30. ETEC, 1200
    Hex. Flanged Screw M6 X 30. ETEC, 1200
  • 30
    250200100 Bonded Washer
    Bonded Washer
  • 34
    250400010 Rolled Pin M3 X 10
    Rolled Pin M3 X 10
  • 36
    250400045 Spring Pin M5 X 16
    Spring Pin M5 X 16
  • 37
    250400048 Dowel Pin
    Dowel Pin
  • 38
    250500012 Allen Drive Plug 1/8-27 PTF
    Allen Drive Plug 1/8-27 PTF
  • 39
    291000714 Bracket
    Bracket
  • 44
    293300122 O-Ring
    O-Ring
  • 45
    293300130 O-Ring
    O-Ring
  • 46
    293350055 Ball Bearing
    Ball Bearing
  • 49
    293350059 Ball Bearing
    Ball Bearing
  • 50
    293350063 Needle Bearing
    Needle Bearing
  • 51
    293350064 Needle Bearing
    Needle Bearing
  • 55
    293370054 Circlip
    Circlip
  • 56
    293370055 Circlip
    Circlip
  • 62
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 68
    414484400 O-Ring
    O-Ring
  • 69
    414554800 Spring Clamp
    Spring Clamp
  • 71
    415049300 Oil Seal. ETEC, 1200
    Oil Seal. ETEC, 1200
  • 75
    504077300 Spacer
    Spacer
  • 76
    504078700 Ring
    Ring
  • 78
    504082900 Washer
    Washer
  • 79
    504083100 Reverse Shaft
    Reverse Shaft
  • 83
    504152282 Circlip
    Circlip
  • 86
    504152571 Seal
    Seal
  • 87
    504152572 Circlip
    Circlip
  • 88
    504152576 Circlip
    Circlip
  • 90
    504152582 Circlip
    Circlip
  • 91
    504152593 Sprocket, 45 Teeth. LE, SE
    Sprocket, 45 Teeth. LE, SE
  • 91
    504152581 Sprocket, 49 Teeth. SE Europe
    Sprocket, 49 Teeth. SE Europe
  • 92
    504152602 Adjustment Screw
    Adjustment Screw
  • 94
    504152619 Magnetic Cap
    Magnetic Cap
  • 98
    504152629 Drive Chain, 104 Links
    Drive Chain, 104 Links
  • 98
    504152630 Drive Chain, 106 Links. SE Europe
    Drive Chain, 106 Links. SE Europe
  • 100
    504152854 Magnetic Plug. ETEC, 1200
    Magnetic Plug. ETEC, 1200
  • 105
    504152689 Washer
    Washer
  • 106
    504152710 Double Ball Joint
    Double Ball Joint
  • 109
    504152724 Sprocket, 29 Teeth
    Sprocket, 29 Teeth
  • 110
    504152748 Chain Tensioner
    Chain Tensioner
  • 111
    504152766 Double Ball Joint
    Double Ball Joint
  • 117
    504152788 Lever
    Lever
  • 122
    504152755 Track Ass'y 15X137X1.0
    Track Ass'y 15X137X1.0
  • 122
    504152734 Track Ass'y, 16X137X1.2. TR16X137X1.2RS
    Track Ass'y, 16X137X1.2. TR16X137X1.2RS
  • 123
    504152841 Tensionner Axle
    Tensionner Axle
  • 127
    504152862 Washer
    Washer
  • 128
    504153083 Drive Axle Ass'y
    Drive Axle Ass'y
  • 147
    504152896 Sensor
    Sensor
  • 152
    504152900 Protector Tube
    Protector Tube
  • 156
    504152949 Housing Bearing
    Housing Bearing
  • 157
    504152951 Ball Joint
    Ball Joint
  • 159
    504152954 Fork Ass'y
    Fork Ass'y
  • 161
    504152956 Welded Axel Fork
    Welded Axel Fork
  • 163
    504152960 Slinding Gear, 27 Teeth
    Slinding Gear, 27 Teeth
  • 164
    504152961 Sprocket, 24 Teeth
    Sprocket, 24 Teeth
  • 166
    504152974 Bearing Housing
    Bearing Housing
  • 168
    504152979 Coupling
    Coupling
  • 171
    504153031 Slider Chain Ass'y
    Slider Chain Ass'y
  • 185
    504153122 Chain Slider
    Chain Slider
  • 186
    504153143 Chaincase Cover Ass'y. 1200
    Chaincase Cover Ass'y. 1200
  • 194
    504153178 Spring Release. 1200
    Spring Release. 1200
  • 196
    504153183 Chaincase
    Chaincase
  • 209
    415080200 Hose, Polyurethane
    Hose, Polyurethane
  • 214
    518325816 Plate
    Plate
  • 215
    570048600 Alignement Rod
    Alignement Rod
  • 216
    581096900 Sprock Ass'y, 19 Teeth
    Sprock Ass'y, 19 Teeth
  • 70a
    415129528 Track Guide. TR16X137X1.2RS
    Track Guide. TR16X137X1.2RS
  • 70a
    415129528 Track Guide. TR15X137X1.0ST
    Track Guide. TR15X137X1.0ST
  • 70b
    504152651 Cleat. TR16X137X1.2RS
    Cleat. TR16X137X1.2RS
  • 70b
    504152651 Cleat. TR15X137X1.0ST
    Cleat. TR15X137X1.0ST
