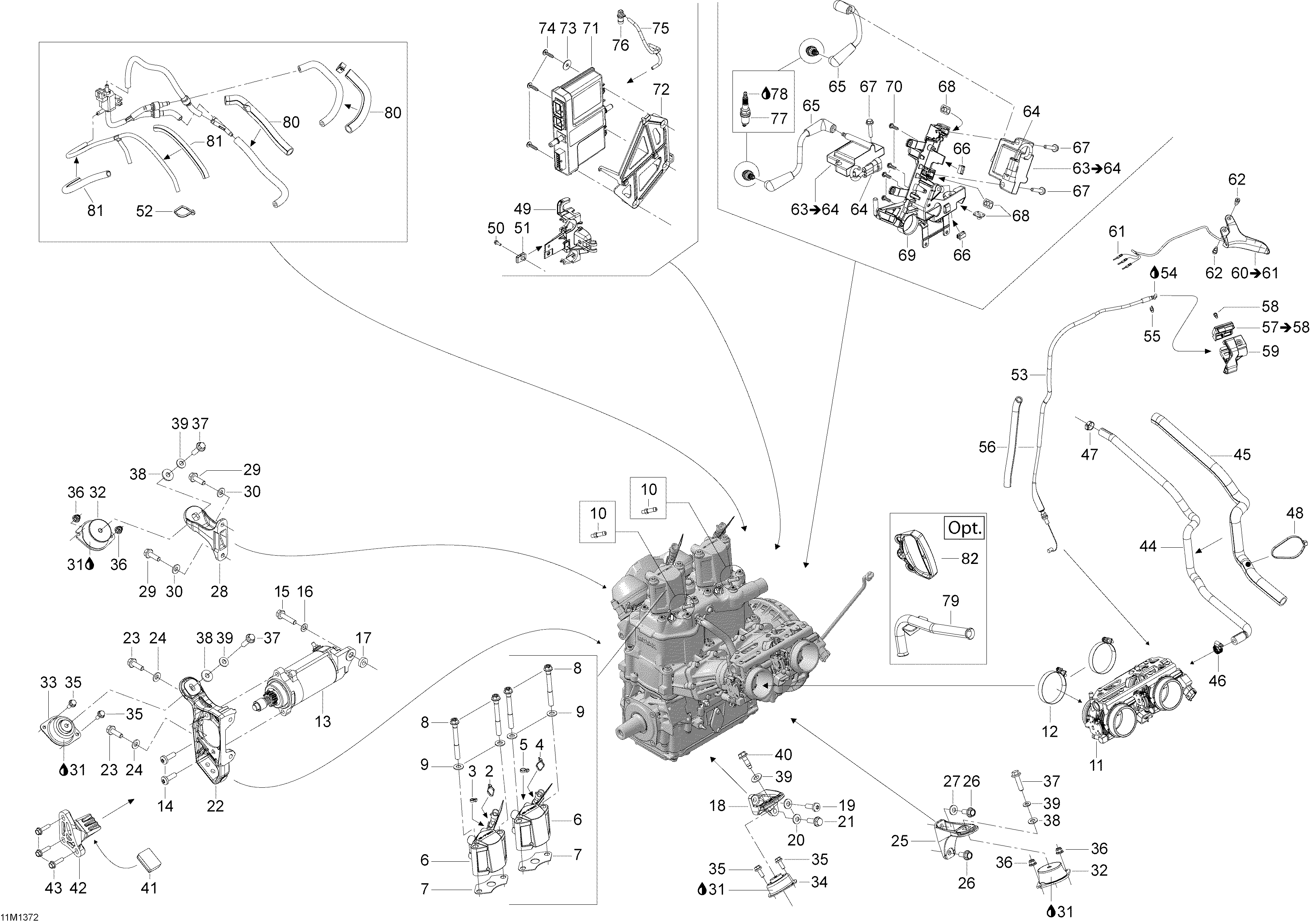

01- Engine And Engine Support для BRP Ski-Doo EXPEDITION SE 600HOE, REV XU - 2013
-
№АртикулНазвание
-
2293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
3293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
4293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
5293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
6512060727 Fuel Injector Ass'yFuel Injector Ass'y
-
7420430930 GasketGasket
-
8420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
9234001410 Flat Washer 10 mmFlat Washer 10 mm
-
10420924724 Hose NippleHose Nipple
-
11420889197 Throttle BodyThrottle Body
-
12293650158 Gemi ClampGemi Clamp
-
13515177389 StarterStarter
-
14250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
15207583544 Hex Flanged Screw M8 X 35, Scotch GripHex Flanged Screw M8 X 35, Scotch Grip
-
16250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
17515176500 WasherWasher
-
18512060478 Rear Support, PTORear Support, PTO
-
19250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
22512060712 Front Support PTOFront Support PTO
-
23207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
24234281474 Conical Spring Washer M8Conical Spring Washer M8
-
25512060559 Rear Support, MAGRear Support, MAG
-
26207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
27234281474 Conical Spring Washer M8Conical Spring Washer M8
-
28512060469 Front Support, MAGFront Support, MAG
-
29207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
30234281474 Conical Spring Washer M8Conical Spring Washer M8
-
32512060729 Rubber MountRubber Mount
-
33512060387 Rubber MountRubber Mount
-
34512060448 Rubber MountRubber Mount
-
35207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
36233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
37207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
38503183200 Washer, YellowWasher, Yellow
-
39234281474 Conical Spring Washer M8Conical Spring Washer M8
-
40250000570 Hex. Screw M8Hex. Screw M8
-
41512060627 StopperStopper
-
42512060576 Stopper SupportStopper Support
-
43207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
44509000793 Formed Hose Output TBFormed Hose Output TB
-
45415080000 Tubing 16 mmTubing 16 mm
-
46293650172 Tridon Gear ClampTridon Gear Clamp
-
47293650047 Crimp ClampCrimp Clamp
-
48293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
49512060298 Solenoid SupportSolenoid Support
-
50207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
51250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
52293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
53512060633 Throttle CableThrottle Cable
-
55414274500 CirclipCirclip
-
56409901700 Tubing 9 mmTubing 9 mm
-
57512060859 Upper Housing. Includes 57 To 58Upper Housing. Includes 57 To 58
-
58414440800 Socket Set Screw M8 X 10Socket Set Screw M8 X 10
-
59512060860 Lower HousingLower Housing
-
60512060616 Throttle Handle. Includes 60 to 62Throttle Handle. Includes 60 to 62
-
61515175232 Male TerminalMale Terminal
-
62732601143 Flanged ScrewFlanged Screw
-
63512060810 Ignition Coil. Includes 63 to 64Ignition Coil. Includes 63 to 64
-
64710000568 HousingHousing
-
65512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
66710000992 ClipClip
-
67250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
68293100003 Nut M6Nut M6
-
69512060696 Support CoilsSupport Coils
-
70241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
71512060871 Calibrated Module 600 E-TECCalibrated Module 600 E-TEC
-
72512060297 Calibrated Module SupportCalibrated Module Support
-
73250200040 Flat WasherFlat Washer
-
74250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
75415080100 LineLine
-
76414814100 Male ConnectorMale Connector
-
77415129432 Spark PlugSpark Plug
-
79512060451 TubingTubing
-
80409901800 Tubing 13 mmTubing 13 mm
-
81415079900 Tubing 10 mmTubing 10 mm
-
82512060136 Starter GripStarter Grip
