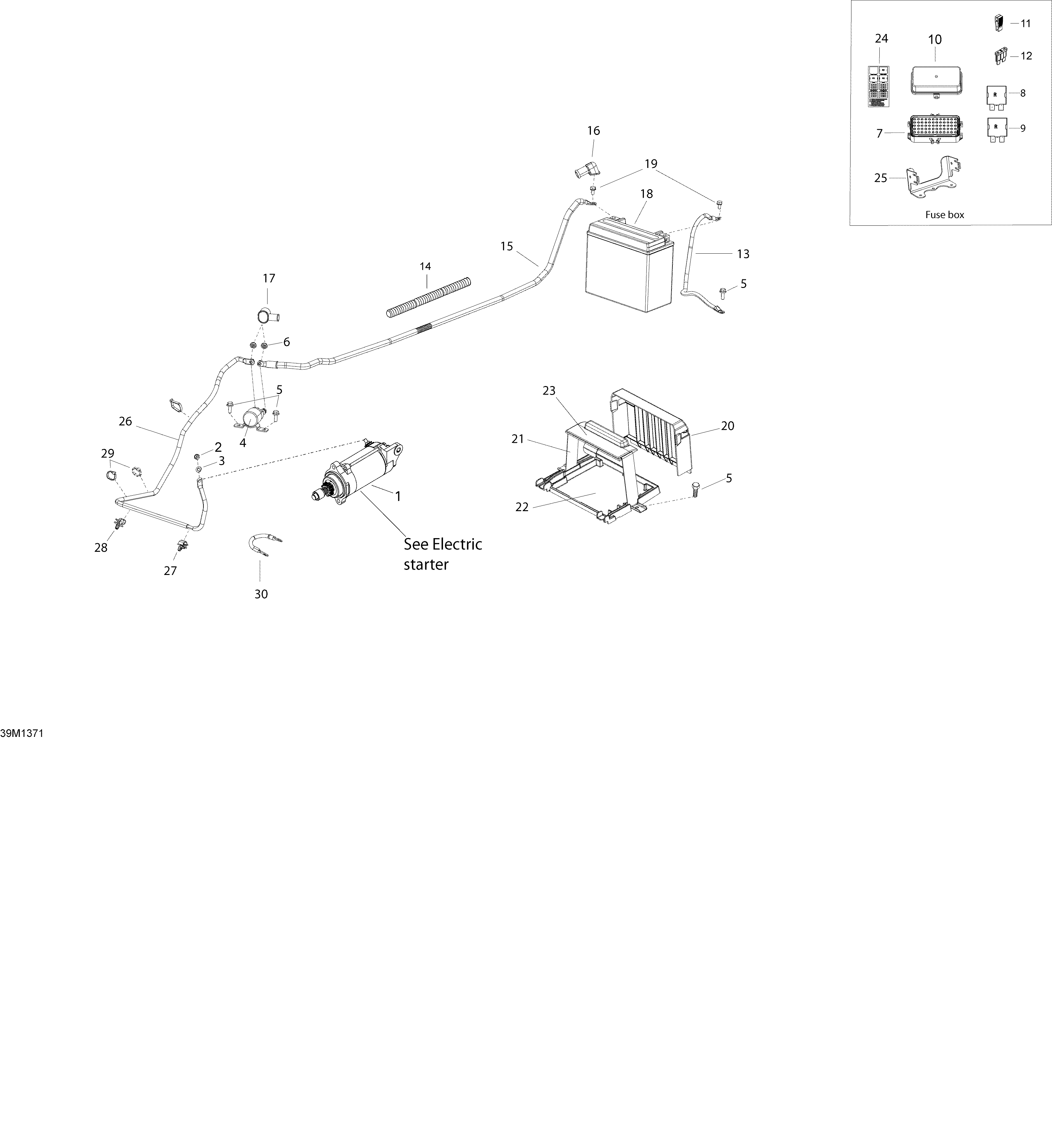

10- Battery And Starter для BRP Ski-Doo EXPEDITION LE 1200 XU - 2013
-
№АртикулНазвание
-
1420892421 Starter Ass'yStarter Ass'y
-
2232261414 Elastic stop nut M6Elastic stop nut M6
-
3234061410 Flat Washer 6 mmFlat Washer 6 mm
-
4515176011 Starter RelayStarter Relay
-
5207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
6233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8515176774 Relay, 30 AMPRelay, 30 AMP
-
9515176775 Relay, 50 AMPRelay, 50 AMP
-
10710001026 Fuse CoverFuse Cover
-
11515175811 Fuse ToolFuse Tool
-
12710000742 Little Fuse, 5 AmperesLittle Fuse, 5 Amperes
-
12710000743 Little Fuse, 7.5 AmperesLittle Fuse, 7.5 Amperes
-
12710000744 Little Fuse, 10 AmperesLittle Fuse, 10 Amperes
-
12710000745 Little Fuse, 15 AmperesLittle Fuse, 15 Amperes
-
12710000746 Little Fuse, 20 AmperesLittle Fuse, 20 Amperes
-
12710000747 Little Fuse, 30 AmperesLittle Fuse, 30 Amperes
-
13515176780 Ground WireGround Wire
-
14M28015 HousingHousing
-
15515176778 Battery WireBattery Wire
-
16278001771 Protector CapProtector Cap
-
17570151000 Protection CapProtection Cap
-
18410301203 Battery Ass'y, 18 Amperes. Includes 18 to 19Battery Ass'y, 18 Amperes. Includes 18 to 19
-
19295500849 Battery Fastener KitBattery Fastener Kit
-
20510005079 Battery CoverBattery Cover
-
21510005143 Battery StrapBattery Strap
-
22515176804 Battery SupportBattery Support
-
23510005146 Strap CoverStrap Cover
-
24516004919 Fuse decal 1200Fuse decal 1200
-
25515177073 Fusebox SupportFusebox Support
-
26515176779 Start cable 1000 mm.Start cable 1000 mm.
-
27515176795 ClipClip
-
29414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
30515176861 Ground WireGround Wire
