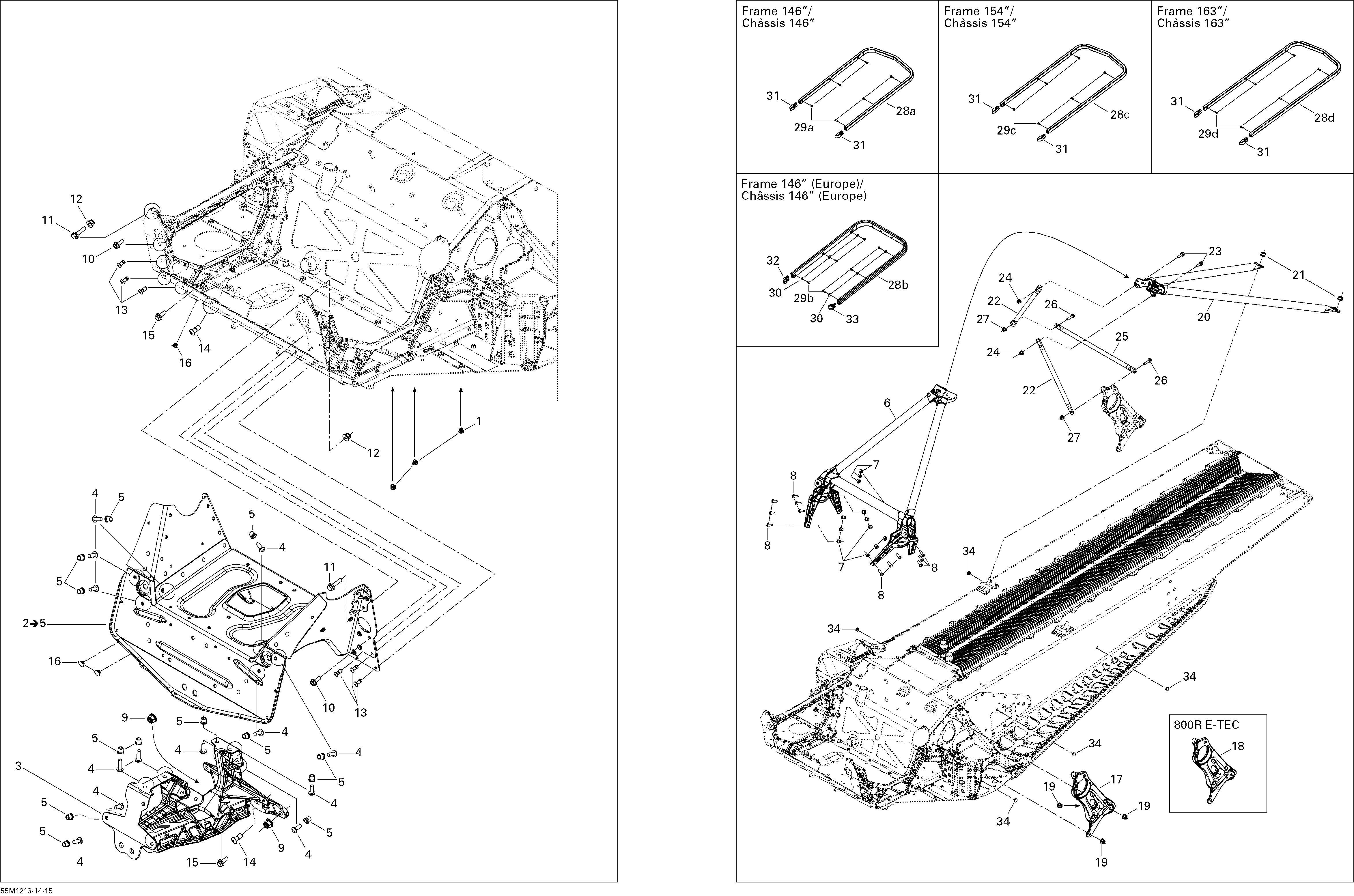

09- Frame and Components 800RPTEK для BRP Ski-Doo Summit SPORT 800R P-TEK - 2012

  • №
    Артикул
    Название
  • 1
    390402400 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 2
    518325924 S-Module. Includes 2 to 5
    S-Module. Includes 2 to 5
  • 3
    518325925 Front Suspension Support
    Front Suspension Support
  • 4
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 5
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 6
    518326970 Front Member
    Front Member
  • 7
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 8
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 9
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 10
    210261680 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 11
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 12
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 13
    293150191 Monobolt Rivet, 4.8 mm
    Monobolt Rivet, 4.8 mm
  • 14
    293150182 Monobolt Rivet 6.4
    Monobolt Rivet 6.4
  • 15
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 16
    293730042 Dart
    Dart
  • 17
    518326192 Driven Pulley Support
    Driven Pulley Support
  • 19
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 20
    518326559 Rear Member
    Rear Member
  • 21
    233281414 Hex. Flanged Elastic Nut M8
    Hex. Flanged Elastic Nut M8
  • 22
    518325114 Upper Column Support
    Upper Column Support
  • 23
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 24
    233261416 Elastic Flanged Nut M6
    Elastic Flanged Nut M6
  • 25
    518325115 Center Column Support
    Center Column Support
  • 26
    207662544 Hex. Flanged Screw M6 X 25
    Hex. Flanged Screw M6 X 25
  • 27
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 28a
    518325374 Rear Bumper, 146''. Track 146''
    Rear Bumper, 146''. Track 146''
  • 28c
    518324982 Rear Bumper, 154''. Track 154''
    Rear Bumper, 154''. Track 154''
  • 29a
    250000402 Torx-Truss Screw M6 X 18. Track 146''
    Torx-Truss Screw M6 X 18. Track 146''
  • 29c
    250000402 Torx-Truss Screw M6 X 18. Track 154''
    Torx-Truss Screw M6 X 18. Track 154''
  • 31
    520000567 Cap. Track 146''
    Cap. Track 146''
  • 31
    520000567 Cap. Track 154''
    Cap. Track 154''
  • 34
    293730041 Dart 8 mm, Full Moon
    Dart 8 mm, Full Moon
