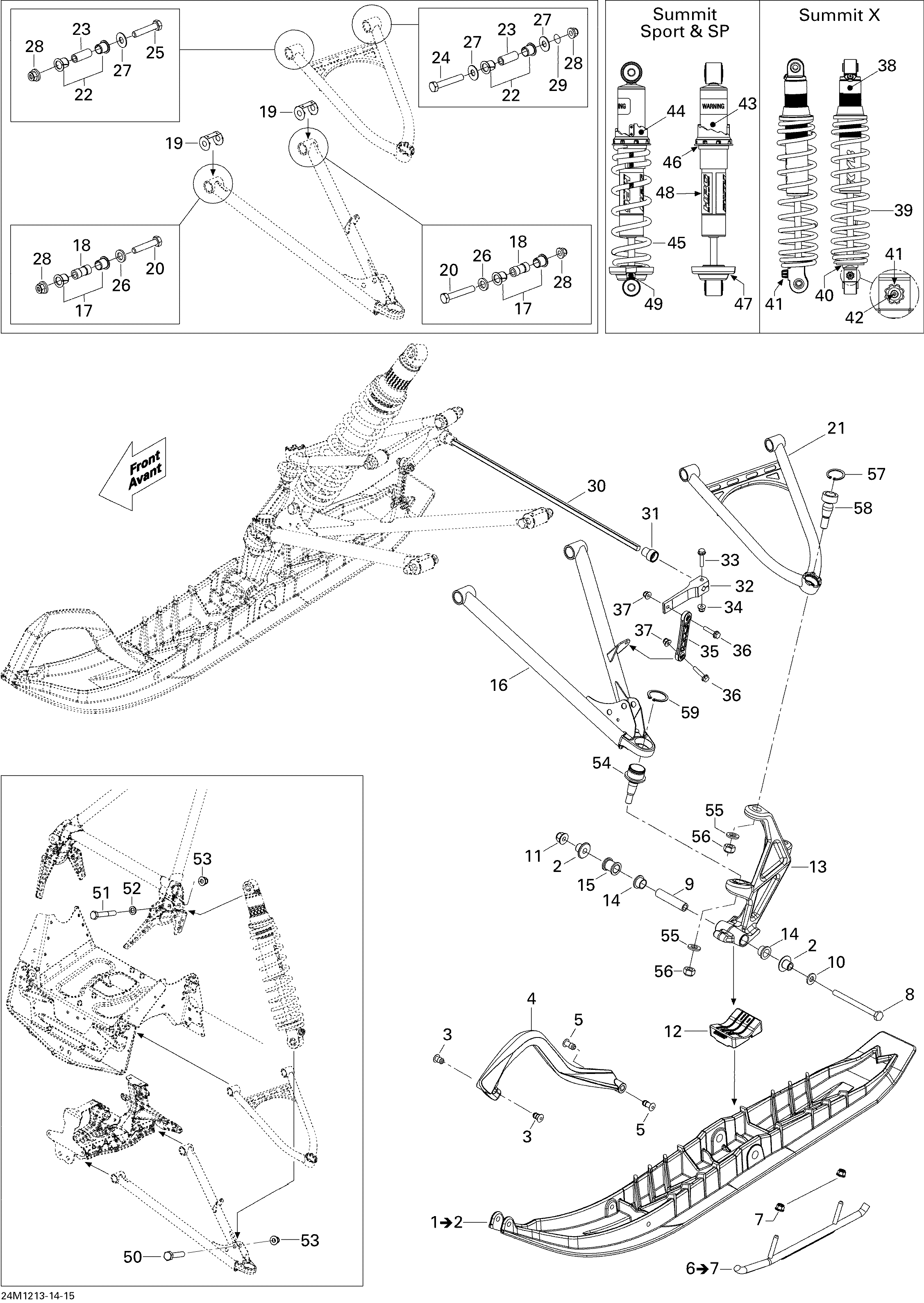

07- Front Suspension And Ski 600 для BRP Ski-Doo Summit SPORT 600 - 2012
-
№АртикулНазвание
-
1415129567 DS Ski, Black. Includes 1 to 2DS Ski, Black. Includes 1 to 2
-
2505071781 CushionCushion
-
3505071812 RetainerRetainer
-
4505073107 Handle, Yellow. Summit Sport & SPHandle, Yellow. Summit Sport & SP
-
5505072133 RetainerRetainer
-
6860200141 Carbide Runner Kit. Includes 6 to 7Carbide Runner Kit. Includes 6 to 7
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
9506133300 SpacerSpacer
-
10732900049 WasherWasher
-
11233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
12505072594 Ski StopperSki Stopper
-
13505073011 LH Ski Leg. Summit Sport & SPLH Ski Leg. Summit Sport & SP
-
13505073012 RH Ski Leg. Summit Sport & SPRH Ski Leg. Summit Sport & SP
-
14505072690 Leg CushionLeg Cushion
-
15505071999 SpacerSpacer
-
16505072497 RH Lower Arm. 600 SPORTRH Lower Arm. 600 SPORT
-
16505072498 LH Lower Arm. 600 SPORTLH Lower Arm. 600 SPORT
-
17505072208 BushingBushing
-
18505072393 Bushing. Summit Sport & SPBushing. Summit Sport & SP
-
19505072634 Wear PlateWear Plate
-
20250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
21505073074 LH Upper Arm. 600 SPORTLH Upper Arm. 600 SPORT
-
21505073076 RH Upper Arm. 600 SPORTRH Upper Arm. 600 SPORT
-
22505072250 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
25250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100088 Hex. Elastic Hex. Nut M10Hex. Elastic Hex. Nut M10
-
29505072448 O-RingO-Ring
-
30505072785 StabilisatorStabilisator
-
31505072786 BushingBushing
-
32505072787 Stabilisator LeverStabilisator Lever
-
33207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
34233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
35505072204 Double Ball Joint LinkDouble Ball Joint Link
-
36207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
37233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
43505073181 Front Shock. 600 SPORTFront Shock. 600 SPORT
-
44505070150 Adjustment CamAdjustment Cam
-
45505072667 Painted Spring. 600 SPORTPainted Spring. 600 SPORT
-
46503187500 Spring GuideSpring Guide
-
47706200881 Spring StopperSpring Stopper
-
48516004534 Shock Decal. 600 SPORTShock Decal. 600 SPORT
-
50207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
51207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
52503189564 WasherWasher
-
53233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
54505072682 Lower Ball JointLower Ball Joint
-
55234021410 Flat Washer 12 mmFlat Washer 12 mm
-
56250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
57293370070 CirclipCirclip
-
58505072913 Upper Ball JointUpper Ball Joint
-
59293370035 CirclipCirclip
