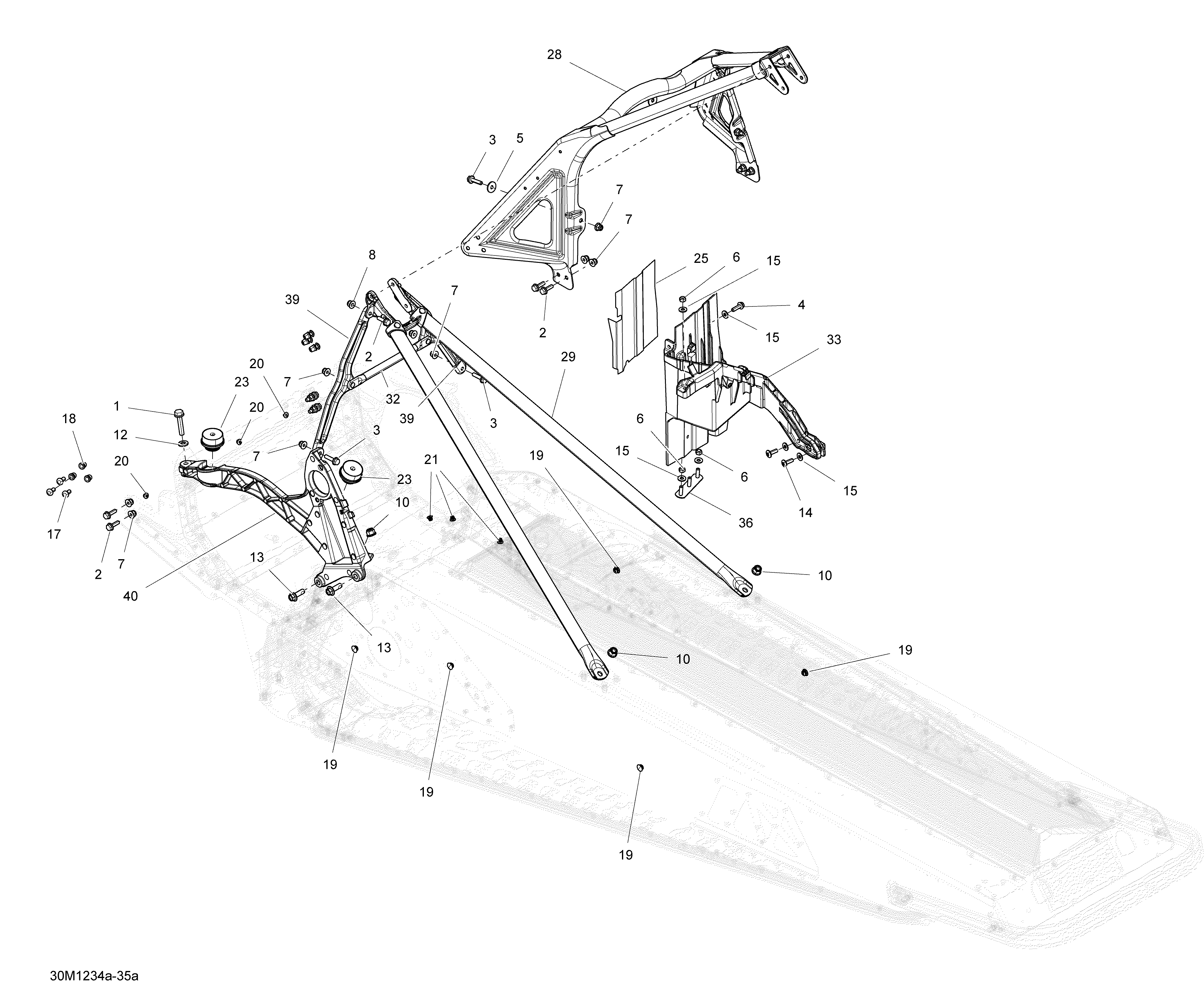

09- Frame 137'' Common Parts для BRP Ski-Doo Tundra Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1207584034 Hex. Flanged Screw, Scotch GripHex. Flanged Screw, Scotch Grip
-
2207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
3207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
4210262040 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5224061201 Flat WasherFlat Washer
-
6232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
7233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
8233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
10233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
12234281474 Conical Spring Washer M8Conical Spring Washer M8
-
13250000351 Hex. Flanged Screw M8 X 25, NylonHex. Flanged Screw M8 X 25, Nylon
-
14250000402 Torx-Truss Screw M6 X 18Torx-Truss Screw M6 X 18
-
15250200039 Flat WasherFlat Washer
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19293730041 Dart 8 mm, Full MoonDart 8 mm, Full Moon
-
20390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
21390402400 Pop Rivet 3/16''Pop Rivet 3/16''
-
23512060295 Rubber MountRubber Mount
-
25514054755 Heat ShieldHeat Shield
-
28518326557 Front MemberFront Member
-
29518326559 Rear MemberRear Member
-
32518326355 Center Column SupportCenter Column Support
-
33518326472 Battery SupportBattery Support
-
36518326550 Retaining PlateRetaining Plate
-
39518326848 Upper Column SupportUpper Column Support
-
40518327224 Brace Ass'yBrace Ass'y
