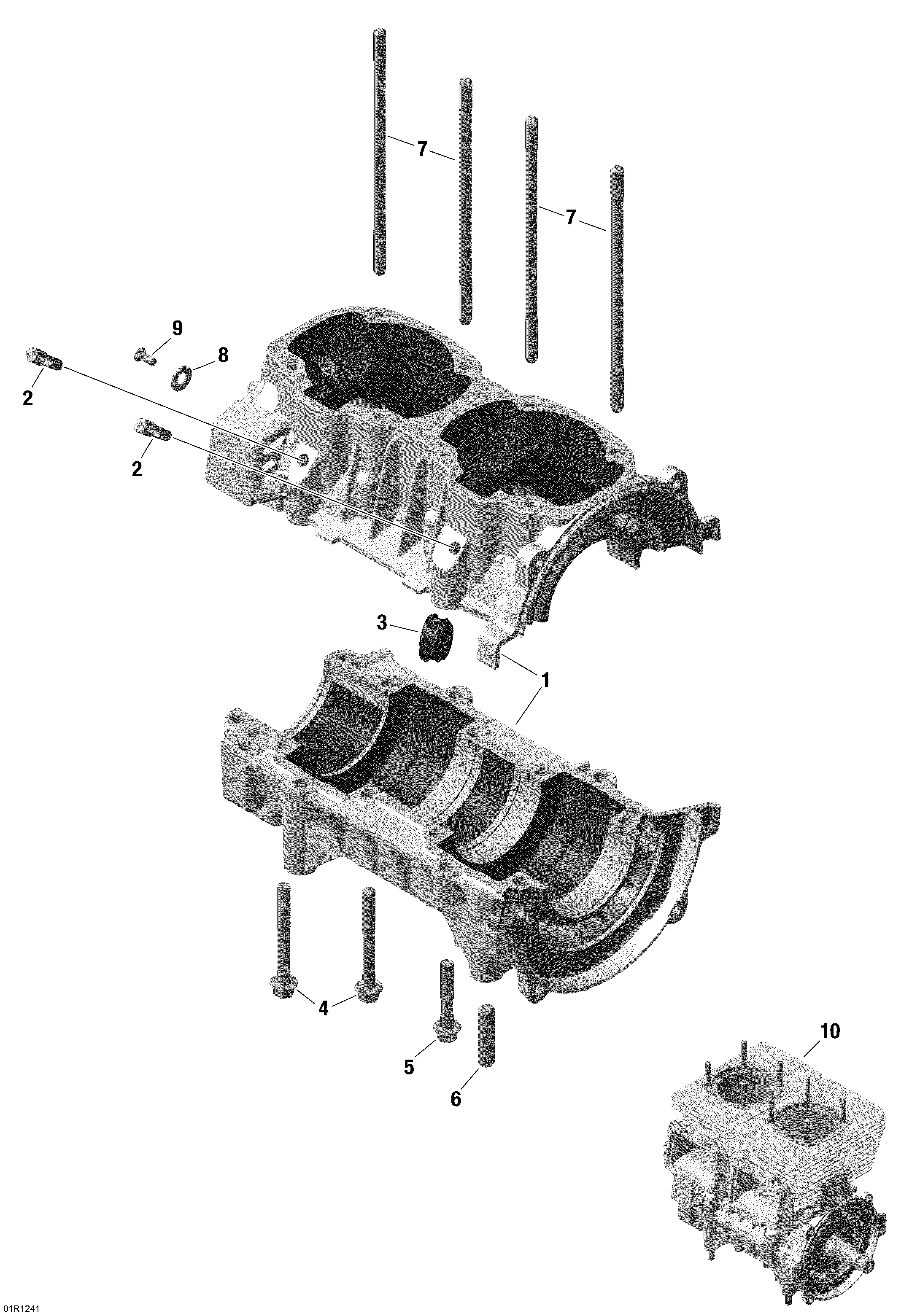

01- Crankcase для BRP Ski-Doo Skandic WT 550F XU - 2012
-
№АртикулНазвание
-
1-4420890237 Crankcase Ass'yCrankcase Ass'y
-
2420956510 Check ValveCheck Valve
-
3420860962 Cable GrommetCable Grommet
-
4420841306 Hex. Collar Screw M8 X 65Hex. Collar Screw M8 X 65
-
5420640431 Hex. Collar Screw M8 X 45Hex. Collar Screw M8 X 45
-
6420840266 Stud M10 X 45Stud M10 X 45
-
7420840556 Stud M8 X 173.5Stud M8 X 173.5
-
8420250311 Flat Washer 8.4 mmFlat Washer 8.4 mm
-
9420640896 Flat Head ScrewFlat Head Screw
-
10420055208 Short Block 552 XPShort Block 552 XP
