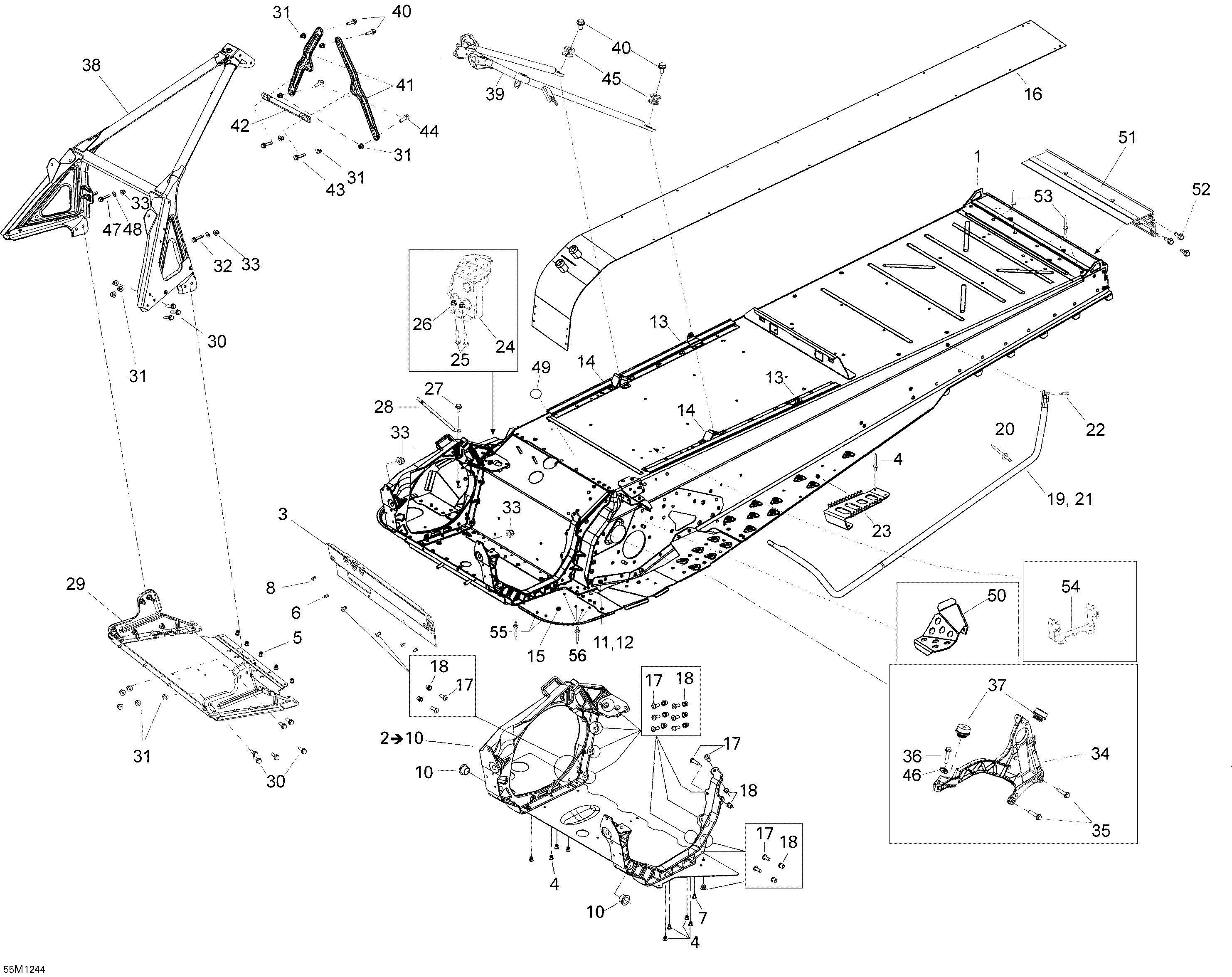

09- Frame and Components для BRP Ski-Doo Skandic SWT 600 ACE (4-strokes) - 2012
‹-+›
-
№АртикулНазвание
-
1518327038 FrameFrame
-
2518326518 E ModuleE Module
-
3518326140 Engine SupportEngine Support
-
4390909200 Avex RivetAvex Rivet
-
6293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
9390909100 Avex RivetAvex Rivet
-
10505072690 Leg CushionLeg Cushion
-
11518326658 Drive Axle Cover L.H.Drive Axle Cover L.H.
-
12518326659 Drive Axle Cover R.H.Drive Axle Cover R.H.
-
13518325987 Seat Box BracketSeat Box Bracket
-
14518326109 Support Tube Bracket LHSupport Tube Bracket LH
-
14518326110 Support Tube Bracket RHSupport Tube Bracket RH
-
15518325524 Frame Corner LHFrame Corner LH
-
15518325526 Frame Corner RHFrame Corner RH
-
16509000645 Radiator TunnelRadiator Tunnel
-
17207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
18233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
19518325641 Footboard Support Tube, LHFootboard Support Tube, LH
-
20293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
21518325642 Footboard Support Tube, RHFootboard Support Tube, RH
-
22207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
23520000492 FootrestFootrest
-
24518326726 Toe Hook LHToe Hook LH
-
24518326727 Toe Hook RHToe Hook RH
-
25207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
26233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27250000128 Torx Truss Screw M6 X 20Torx Truss Screw M6 X 20
-
28514054846 Spring BracketSpring Bracket
-
29518326213 S ModuleS Module
-
30207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
33233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
34518326142 Brace Ass.Brace Ass.
-
35207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
36207584044 Hex. Flanged Screw M8 X 40, Scotch GripHex. Flanged Screw M8 X 40, Scotch Grip
-
37512060295 Rubber MountRubber Mount
-
38518326754 Front Member Ass'yFront Member Ass'y
-
39518326103 Upper Support Tube WeldedUpper Support Tube Welded
-
40207662086 Hex. Flanged Screw DIN.6921Hex. Flanged Screw DIN.6921
-
41518326848 Upper Column SupportUpper Column Support
-
42518326355 Center Column SupportCenter Column Support
-
43250300027 Clinch Stud M6 X 20Clinch Stud M6 X 20
-
44250000450 Hex. Flange Screw DIN.6921Hex. Flange Screw DIN.6921
-
46234281474 Conical Spring Washer M8Conical Spring Washer M8
-
47207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
48224061201 Flat WasherFlat Washer
-
49518325560 Adhesive PatchAdhesive Patch
-
50518327035 Brake Hose CoverBrake Hose Cover
-
51518325645 Rear ProfileRear Profile
-
52250000376 Hex Forming Screw DIN.7500DHex Forming Screw DIN.7500D
-
53293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
54515177073 Fusebox SupportFusebox Support
-
55293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
56390909200 Avex RivetAvex Rivet
