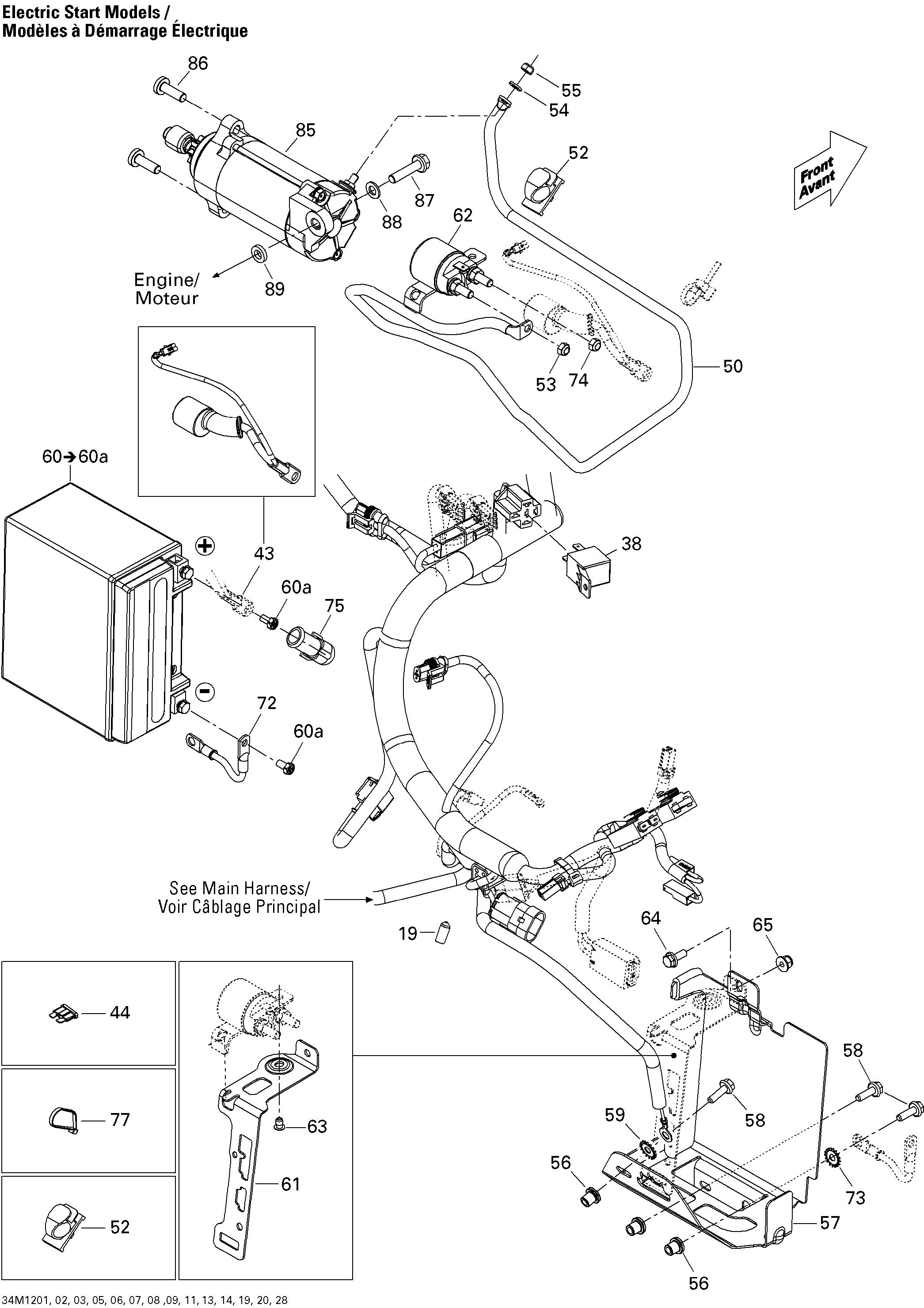

10- Battery And Starter 800R ETEC для BRP Ski-Doo Renegade X 800RETEC XP - 2012

  • №
    Артикул
    Название
  • 19
    515176141 Cap
    Cap
  • 38
    515177041 Relay. Electrical Starter
    Relay. Electrical Starter
  • 43
    515177200 Battery Fuse Wire. Electrical Starter
    Battery Fuse Wire. Electrical Starter
  • 44
    410917200 Fuse, 30 Amperes. Electrical Starter
    Fuse, 30 Amperes. Electrical Starter
  • 50
    515177067 Battery Wire. Electrical Starter
    Battery Wire. Electrical Starter
  • 52
    515177066 Clip. Electrical Starter
    Clip. Electrical Starter
  • 53
    232561414 Elastic Stop Nut M6. Electrical Starter
    Elastic Stop Nut M6. Electrical Starter
  • 54
    234061410 Flat Washer 6 mm. Electrical Starter
    Flat Washer 6 mm. Electrical Starter
  • 55
    232561414 Elastic Stop Nut M6. Electrical Starter
    Elastic Stop Nut M6. Electrical Starter
  • 56
    415107300 Insert
    Insert
  • 56
    415107300 Insert. Electrical Starter
    Insert. Electrical Starter
  • 57
    515176886 Battery Support Ass'y. Electrical Starter
    Battery Support Ass'y. Electrical Starter
  • 58
    207662044 Hex. Flanged Screw M6 X 20. Electrical Starter
    Hex. Flanged Screw M6 X 20. Electrical Starter
  • 58
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 59
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 60
    296000295 Battery 18 Amp. 800RE Electrical Starter
    Battery 18 Amp. 800RE Electrical Starter
  • 60a
    295500849 Battery Fastener Kit. 800RE Electrical Starter
    Battery Fastener Kit. 800RE Electrical Starter
  • 61
    515177008 Battery Strip. Electrical Starter
    Battery Strip. Electrical Starter
  • 62
    515176501 Starter Relay. Electrical Starter
    Starter Relay. Electrical Starter
  • 63
    390402200 Pop Rivet 3/16''. Electrical Starter
    Pop Rivet 3/16''. Electrical Starter
  • 64
    207661644 Hex. Flanged Screw M6 X 16. Electrical Starter
    Hex. Flanged Screw M6 X 16. Electrical Starter
  • 65
    233261414 Hex. Flanged Elastic Nut M6. Electrical Starter
    Hex. Flanged Elastic Nut M6. Electrical Starter
  • 72
    515176358 Ground Wire. Electrical Starter
    Ground Wire. Electrical Starter
  • 73
    250200041 Lock Washer Serrated M6. Electrical Starter
    Lock Washer Serrated M6. Electrical Starter
  • 74
    232561414 Elastic Stop Nut M6. Electrical Starter
    Elastic Stop Nut M6. Electrical Starter
  • 75
    710000495 Protector Cap. Electrical Starter
    Protector Cap. Electrical Starter
  • 77
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 77
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 77
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 77
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 85
    515176858 Starter Ass'y. Electric Start
    Starter Ass'y. Electric Start
  • 86
    250000248 Torx Screw M8 X 25, Scotch Grip. Electric Start
    Torx Screw M8 X 25, Scotch Grip. Electric Start
  • 87
    207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electric Start
    Hex Flanged Screw M8 X 35, Scotch Grip. Electric Start
  • 88
    250200008 Flat Washer 8 mm. Electric Start
    Flat Washer 8 mm. Electric Start
