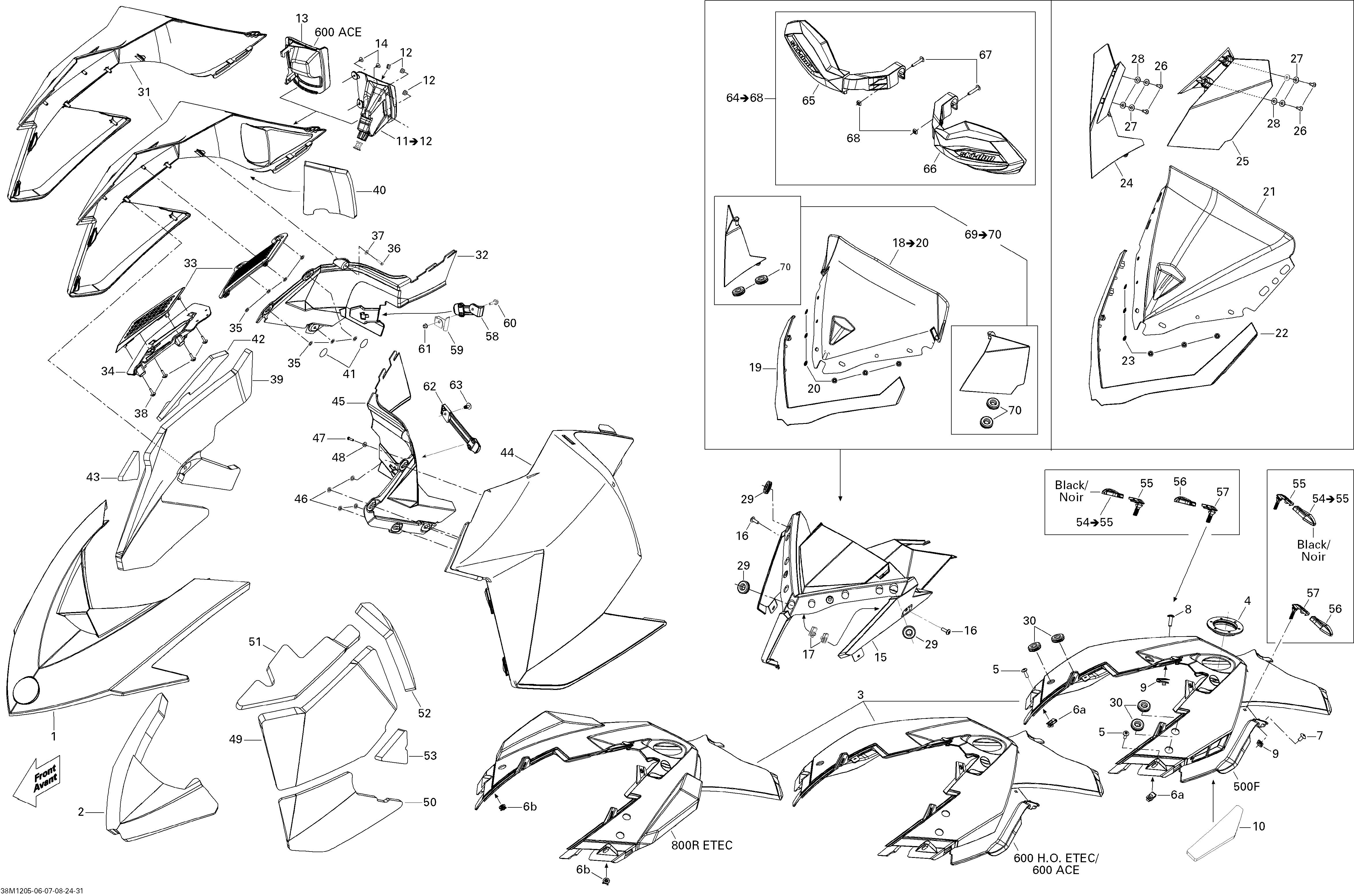

09- Hood, Windshield And Console 800RETEC для BRP Ski-Doo Renegade Adrenaline 800RETEC XP - 2012

  • №
    Артикул
    Название
  • 1
    517304530 Deep Black Hood
    Deep Black Hood
  • 2
    517304913 Hood Foam
    Hood Foam
  • 3
    517304639 Console
    Console
  • 4
    517304518 Console Nut
    Console Nut
  • 5
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 6b
    732610057 Jack Nut M6
    Jack Nut M6
  • 7
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 8
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 9
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 11
    517304322 Black RH Console. Includes 11 to 12, Manual Starter
    Black RH Console. Includes 11 to 12, Manual Starter
  • 12
    275500241 Black Cap. Manual Starter
    Black Cap. Manual Starter
  • 14
    250000113 Screw M4 X 16, Type K-40. Manual Starter
    Screw M4 X 16, Type K-40. Manual Starter
  • 15
    517304575 Gauge Support
    Gauge Support
  • 16
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 17
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 21
    860200478 Windsheld Kit 375. Includes 21 to 28
    Windsheld Kit 375. Includes 21 to 28
  • 21
    517304395 Windsheld 375mm. Windshield Only
    Windsheld 375mm. Windshield Only
  • 22
    517303607 Windshield Support
    Windshield Support
  • 23
    732610072 Push Nut
    Push Nut
  • 24
    517303604 RH Air Deflector
    RH Air Deflector
  • 25
    517303605 LH Air Deflector
    LH Air Deflector
  • 26
    250000146 Truss Head Torx Screw K50 X 16
    Truss Head Torx Screw K50 X 16
  • 27
    250200025 Washer M5
    Washer M5
  • 28
    250200024 Rubber Washer 5 mm
    Rubber Washer 5 mm
  • 29
    517303756 Grommet
    Grommet
  • 30
    517303756 Grommet
    Grommet
  • 31
    517304029 Deep Black RH Panel. Manual Starter
    Deep Black RH Panel. Manual Starter
  • 31
    517304210 Deep Black RH Panel. Electric Starter
    Deep Black RH Panel. Electric Starter
  • 32
    517304424 RH Moulding Panel
    RH Moulding Panel
  • 33
    517304763 External Grill
    External Grill
  • 34
    517304764 Internal Grill
    Internal Grill
  • 35
    732610072 Push Nut
    Push Nut
  • 36
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 37
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 38
    250000113 Screw M4 X 16, Type K-40
    Screw M4 X 16, Type K-40
  • 39
    517304883 RH Center Foam
    RH Center Foam
  • 40
    517304884 RH Panel Rear Foam
    RH Panel Rear Foam
  • 41
    518325560 Adhesive Patch
    Adhesive Patch
  • 44
    517304030 Deep Black LH Panel
    Deep Black LH Panel
  • 45
    517304431 LH Moulding Panel
    LH Moulding Panel
  • 46
    732610072 Push Nut
    Push Nut
  • 47
    241141660 Flanged Hex. Screw K40 X 16
    Flanged Hex. Screw K40 X 16
  • 48
    234042600 Flat Washer 4 mm, Stainless
    Flat Washer 4 mm, Stainless
  • 49
    517304887 LH Panel Center Foam
    LH Panel Center Foam
  • 50
    517304888 LH Panel Lower Foam
    LH Panel Lower Foam
  • 51
    517304889 LH Panel Upper Foam
    LH Panel Upper Foam
  • 52
    517304890 LH Panel Rear Foam
    LH Panel Rear Foam
  • 53
    517304891 Foam
    Foam
  • 54
    860200239 Black Latch Kit. Includes 54 to 55
    Black Latch Kit. Includes 54 to 55
  • 55
    517303981 Panel Latch
    Panel Latch
  • 58
    517303612 RH Panel Latch
    RH Panel Latch
  • 59
    517304221 Latch Support
    Latch Support
  • 60
    207652044 Flanged Hex. Screw M5 X 20
    Flanged Hex. Screw M5 X 20
  • 61
    233251414 Hex. Flanged Elastic Nut M5
    Hex. Flanged Elastic Nut M5
  • 62
    517303808 LH Panel Latch
    LH Panel Latch
  • 63
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
