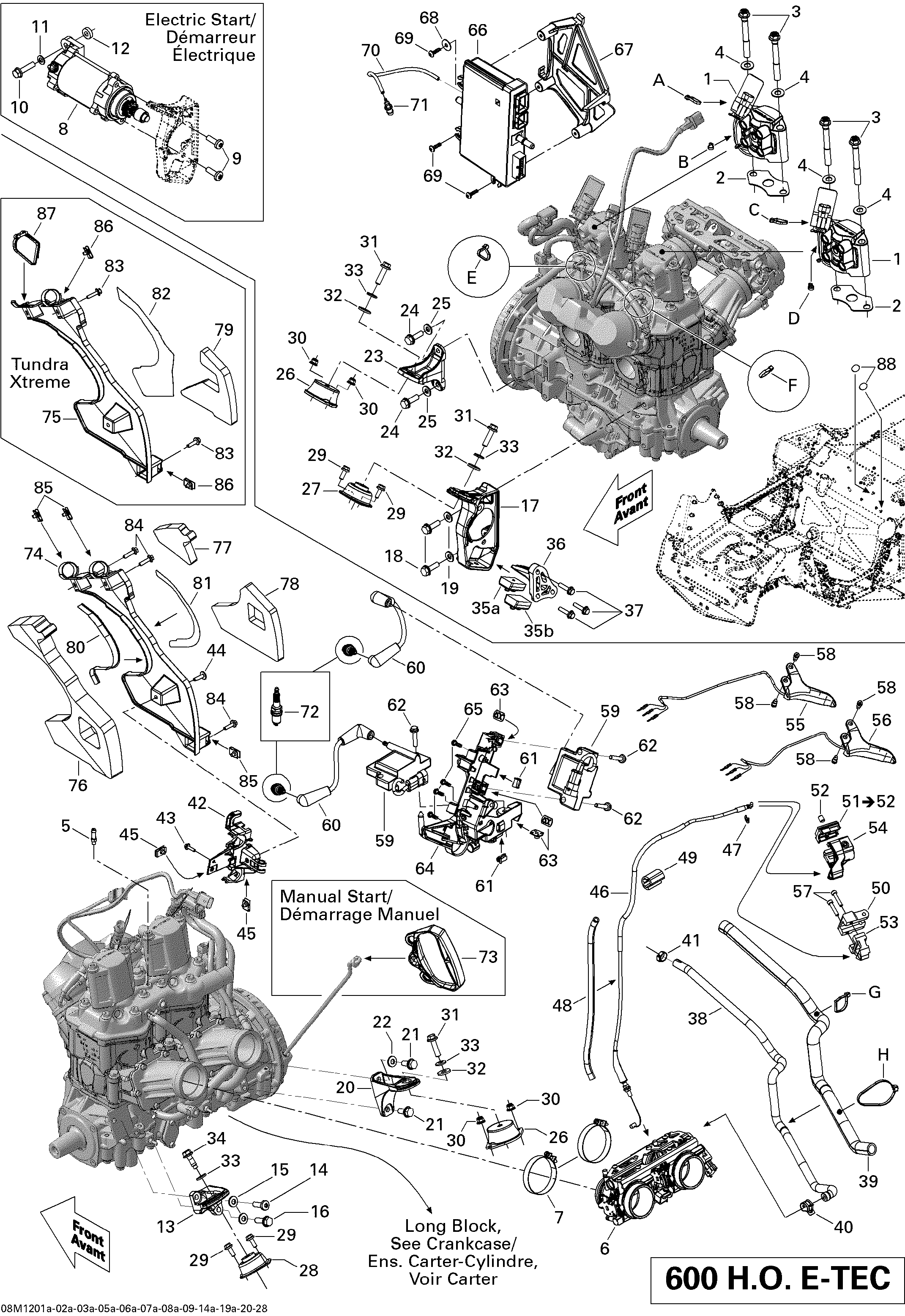

01- Engine 600HOETEC для BRP Ski-Doo MXZ XRS 600HOETEC - 2012
-
№АртикулНазвание
-
1512060649 Fuel InjectorFuel Injector
-
2420430930 GasketGasket
-
3420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
4234001410 Flat Washer 10 mmFlat Washer 10 mm
-
5420924720 Hose NippleHose Nipple
-
6420889197 Throttle BodyThrottle Body
-
7293650158 Gemi ClampGemi Clamp
-
8515176858 Starter Ass'y. Electric StartStarter Ass'y. Electric Start
-
9250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
10207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electric StartHex Flanged Screw M8 X 35, Scotch Grip. Electric Start
-
11250200008 Flat Washer 8 mm. Electric StartFlat Washer 8 mm. Electric Start
-
12515176500 Washer. Electric StartWasher. Electric Start
-
13512060478 Rear Support, PTORear Support, PTO
-
14250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
15234281474 Conical Spring Washer M8Conical Spring Washer M8
-
16207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
17512060699 Front Support, PTOFront Support, PTO
-
18207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
19234281474 Conical Spring Washer M8Conical Spring Washer M8
-
20512060559 Rear Support, MAGRear Support, MAG
-
21207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
22234281474 Conical Spring Washer M8Conical Spring Washer M8
-
23512060469 Front Support, MAGFront Support, MAG
-
24207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
25234281474 Conical Spring Washer M8Conical Spring Washer M8
-
26512060729 Rubber MountRubber Mount
-
27512060387 Rubber MountRubber Mount
-
28512060448 Rubber MountRubber Mount
-
29207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
30233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
31207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
32503183200 Washer, YellowWasher, Yellow
-
33234281474 Conical Spring Washer M8Conical Spring Washer M8
-
34250000570 Hex. Screw M8Hex. Screw M8
-
35a512060627 StopperStopper
-
36512060576 Stopper SupportStopper Support
-
37207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
38512060740 Formed Hose, OutputFormed Hose, Output
-
39415080000 Tubing 16 mmTubing 16 mm
-
40293650214 Norma Spring ClampNorma Spring Clamp
-
41293650046 Oetiker ClampOetiker Clamp
-
42512060298 Solenoid SupportSolenoid Support
-
43207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
44250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
45250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
46512060624 Throttle CableThrottle Cable
-
47414274500 CirclipCirclip
-
48409901700 Tubing 9 mmTubing 9 mm
-
49512060313 ProtectorProtector
-
50512059969 Upper HousingUpper Housing
-
53512059537 Lower HousingLower Housing
-
55512060616 Throttle HandleThrottle Handle
-
57205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
58732601143 Flanged ScrewFlanged Screw
-
59512060711 Ignition CoilIgnition Coil
-
60512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
61710000992 ClipClip
-
62250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
63293100003 Nut M6Nut M6
-
64512060696 Solenoid SupportSolenoid Support
-
65241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
66512060786 Calibrated ModuleCalibrated Module
-
67512060297 Calibrated Module SupportCalibrated Module Support
-
68250200040 Flat WasherFlat Washer
-
69250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
70415080100 LineLine
-
71414814100 Male ConnectorMale Connector
-
72415129432 Spark PlugSpark Plug
-
73512060136 Starter Grip. Manual StartStarter Grip. Manual Start
-
74512060339 Noise ShieldNoise Shield
-
76512060343 Interior Noise FoamInterior Noise Foam
-
77512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
78512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
80512060574 Heat ShieldHeat Shield
-
81512060575 Heat ShieldHeat Shield
-
84250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
85250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
88518325560 Adhesive PatchAdhesive Patch
-
A293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
B293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
C293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
D293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
E293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
F293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
G414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
H293750008 Tie-Rap 350 mmTie-Rap 350 mm
