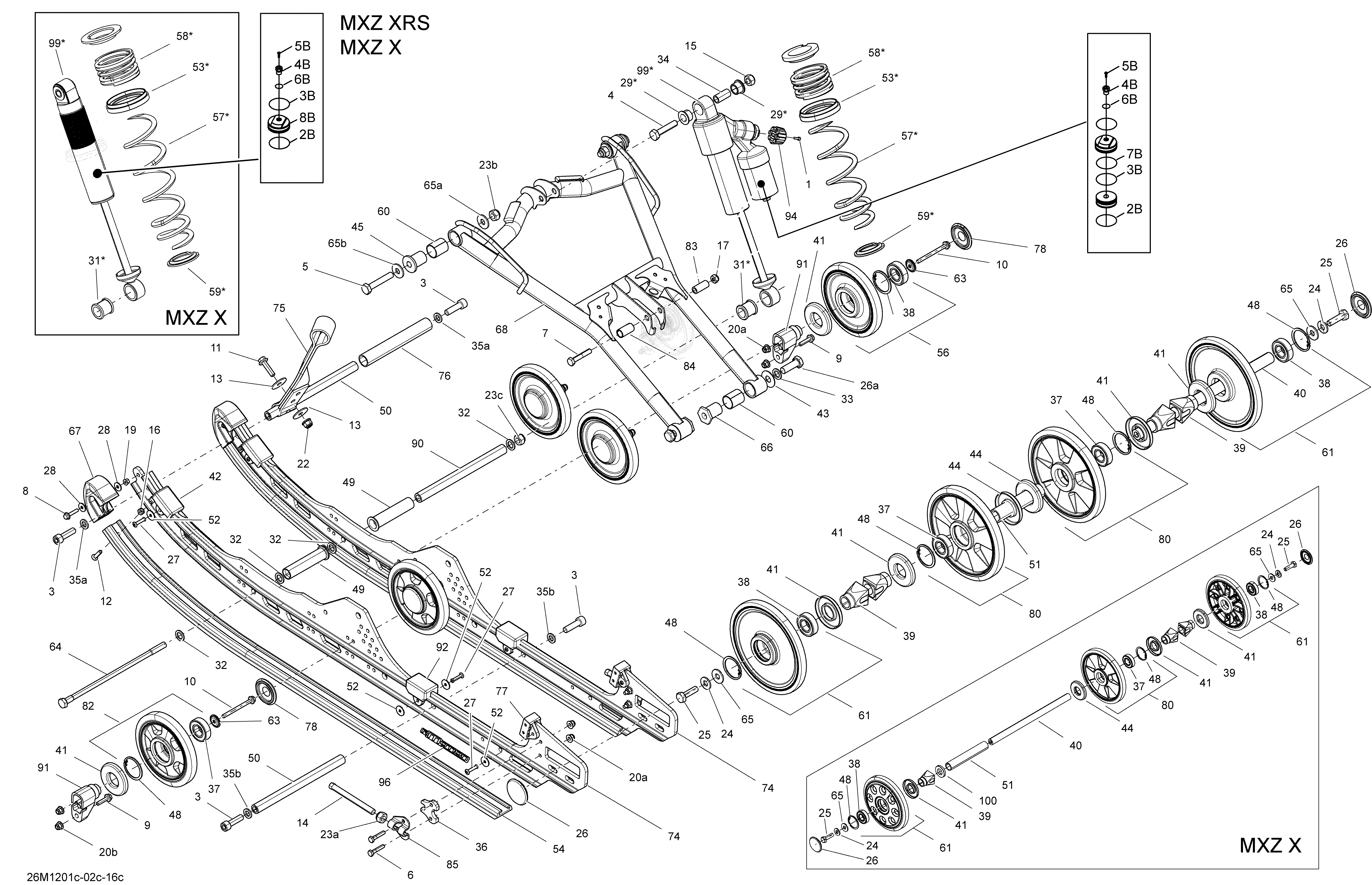

08- Rear Suspension Front Arm And Base для BRP Ski-Doo MXZ X 800RETEC XP - 2012
-
№АртикулНазвание
-
1205031060 Socket Screw M3 X 10Socket Screw M3 X 10
-
3205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
4207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
5207006056 Hex. Cap Screw M10 X 60Hex. Cap Screw M10 X 60
-
6207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
7207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
8207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
9207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
10207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
11207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
12208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
13224081301 Flat WasherFlat Washer
-
14230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
15233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
16232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
17233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
19233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
24234201474 Conical Spring Washer 10 mmConical Spring Washer 10 mm
-
25250000019 Hex. Screw With NylonHex. Screw With Nylon
-
26503192771 Wheel CapWheel Cap
-
27293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
28391301600 WasherWasher
-
29503189117 CushionCushion
-
31503189271 CushionCushion
-
32732900049 WasherWasher
-
33503192491 WasherWasher
-
34503189282 BushingBushing
-
36503190379 Tensioner SpacerTensioner Spacer
-
37503190396 Ball BearingBall Bearing
-
38503190396 Ball BearingBall Bearing
-
39503190428 Rear Wheel SpacerRear Wheel Spacer
-
40503190429 Rear AxleRear Axle
-
41503190434 Labyrinth SealLabyrinth Seal
-
42503190576 Rubber StopperRubber Stopper
-
43503190656 WasherWasher
-
44503190682 Labyrinth SealLabyrinth Seal
-
45503190698 AxleAxle
-
48415129371 Retaining RingRetaining Ring
-
49503191259 Center BushingCenter Bushing
-
50503191260 Axle StrapAxle Strap
-
51503190430 SpacerSpacer
-
52503191273 WasherWasher
-
53503191281 Spring SpacerSpring Spacer
-
54503191301 Slider Shoe 120'', BlackSlider Shoe 120'', Black
-
56503192758 Wheel 141 Ass'yWheel 141 Ass'y
-
57503193067 Black Spring (189mm Long)Black Spring (189mm Long)
-
58503193068 Spring PaintSpring Paint
-
59503192608 Spring StopperSpring Stopper
-
60503191554 BushingBushing
-
61503192766 Wheel, 180 mmWheel, 180 mm
-
63503191820 Wheel Cup M6Wheel Cup M6
-
64503191896 Bolt M10 X 251MMBolt M10 X 251MM
-
65503191910 WasherWasher
-
66503191966 Lower AxleLower Axle
-
67503192530 Slide ProtectorSlide Protector
-
68503192579 Welded Front ArmWelded Front Arm
-
74503192779 Paint Runner 120'', Yellow. Black-White ModelPaint Runner 120'', Yellow. Black-White Model
-
74503192951 Paint Runner 120'', Black. Black-Black ModelPaint Runner 120'', Black. Black-Black Model
-
75503192360 Stopper StrapStopper Strap
-
76503192678 SpacerSpacer
-
77503192750 Rubber StopperRubber Stopper
-
78503192771 Wheel CapWheel Cap
-
80503192778 Wheel 180, BlackWheel 180, Black
-
82503192794 Wheel 141 Ass'yWheel 141 Ass'y
-
83503189282 BushingBushing
-
84503193037 BushingBushing
-
85503192814 TensionerTensioner
-
90503192978 Pivot AxlePivot Axle
-
91503193082 Casted SupportCasted Support
-
92503193101 Rubber StopperRubber Stopper
-
94503193033 Shock Adjuster KnobShock Adjuster Knob
-
96516004755 Runner DecalRunner Decal
-
99503192769 Center ShockCenter Shock
-
100503190432 WasherWasher
-
20a233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
20b233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
23a233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
23b233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
23C233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
26a250000537 Hex. Cap Screw M12 X 35Hex. Cap Screw M12 X 35
-
2b415093807 O-RingO-Ring
-
35a503189564 WasherWasher
-
35b503192496 WasherWasher
-
4b505070398 Air ValveAir Valve
-
5b505070399 ScrewScrew
-
65a503191926 WasherWasher
-
65b503192496 WasherWasher
-
6b505070400 O-RingO-Ring
