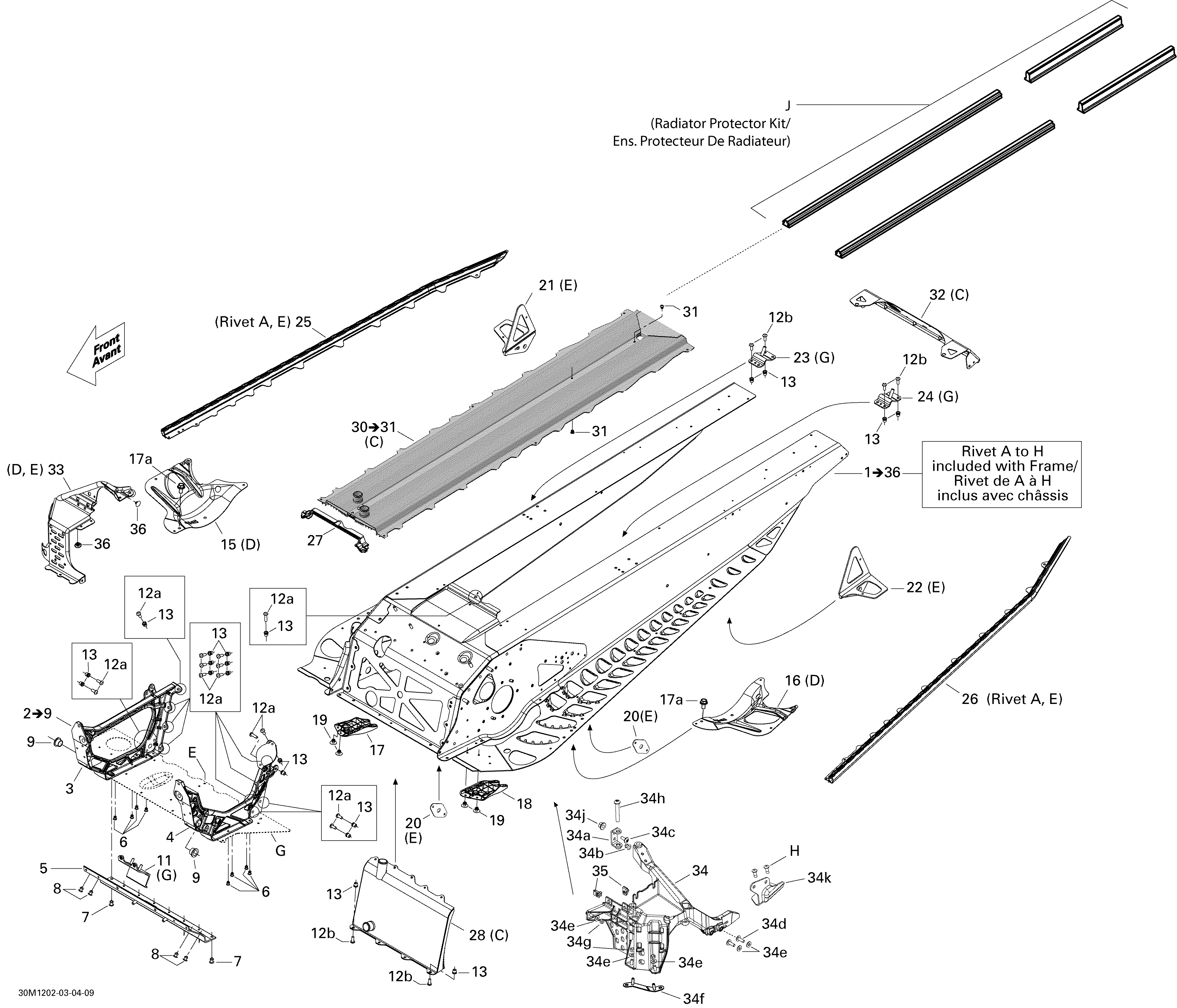

09- Frame для BRP Ski-Doo MXZ TNT 800RETEC XP - 2012
-
№АртикулНазвание
-
1415129631 Frame MXZ TNT. Includes 1 to 36Frame MXZ TNT. Includes 1 to 36
-
2518326843 E-Module Ass'y. Includes 2 to 9E-Module Ass'y. Includes 2 to 9
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6293150144 Stavex RivetStavex Rivet
-
7293150120 Hemlock Rivet 6.5 mmHemlock Rivet 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
8293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
9505072690 Leg CushionLeg Cushion
-
11518325943 MAG Engine SupportMAG Engine Support
-
15518324874 RH ReinforcementRH Reinforcement
-
16518324875 LH ReinforcementLH Reinforcement
-
17518325782 RH DeflectorRH Deflector
-
18518325783 LH DeflectorLH Deflector
-
19293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
20518326647 Reinforcement PlateReinforcement Plate
-
21518324885 RH Slide BracketRH Slide Bracket
-
22518324886 LH Slide BracketLH Slide Bracket
-
23518325973 RH Rear BaseRH Rear Base
-
24518325974 LH Rear BaseLH Rear Base
-
25518324812 RH RollerRH Roller
-
26518324813 LH RollerLH Roller
-
27518326656 SealSeal
-
28518326485 Front RadiatorFront Radiator
-
29518326486 Front RadiatorFront Radiator
-
30518325666 Rear Radiator Ass'y. Includes 30 to 31Rear Radiator Ass'y. Includes 30 to 31
-
31293150144 Stavex RivetStavex Rivet
-
32518325421 Rear CapRear Cap
-
33518326216 RH StirupRH Stirup
-
34518326820 LH StirupLH Stirup
-
35250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
36293730042 DartDart
-
17a207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
34a518326961 U-AttachU-Attach
-
34b293150147 Hemlock RivetHemlock Rivet
-
34c250000534 Tork Screw M6 X 16Tork Screw M6 X 16
-
34d250000536 Tork Screw M6 X 18Tork Screw M6 X 18
-
34E250200039 Flat WasherFlat Washer
-
34f518326986 AttachAttach
-
34g232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
34h250000535 Tork Screw M8 X 55Tork Screw M8 X 55
-
34j233061414 Hex. Flanged Nut M6Hex. Flanged Nut M6
-
34k518326960 SupportSupport
-
A390402300 Pop Rivet 3/16''Pop Rivet 3/16''
-
C390909200 Avex RivetAvex Rivet
-
D390909100 Avex RivetAvex Rivet
-
E293150144 Stavex RivetStavex Rivet
-
F293150146 Henrob RivetHenrob Rivet
-
G293150174 Hemlock Rivet, 6.4 mmHemlock Rivet, 6.4 mm
-
H293150194 Interlock Rivet 3/16''Interlock Rivet 3/16''
-
J860200267 Tunnel Protector KitTunnel Protector Kit
