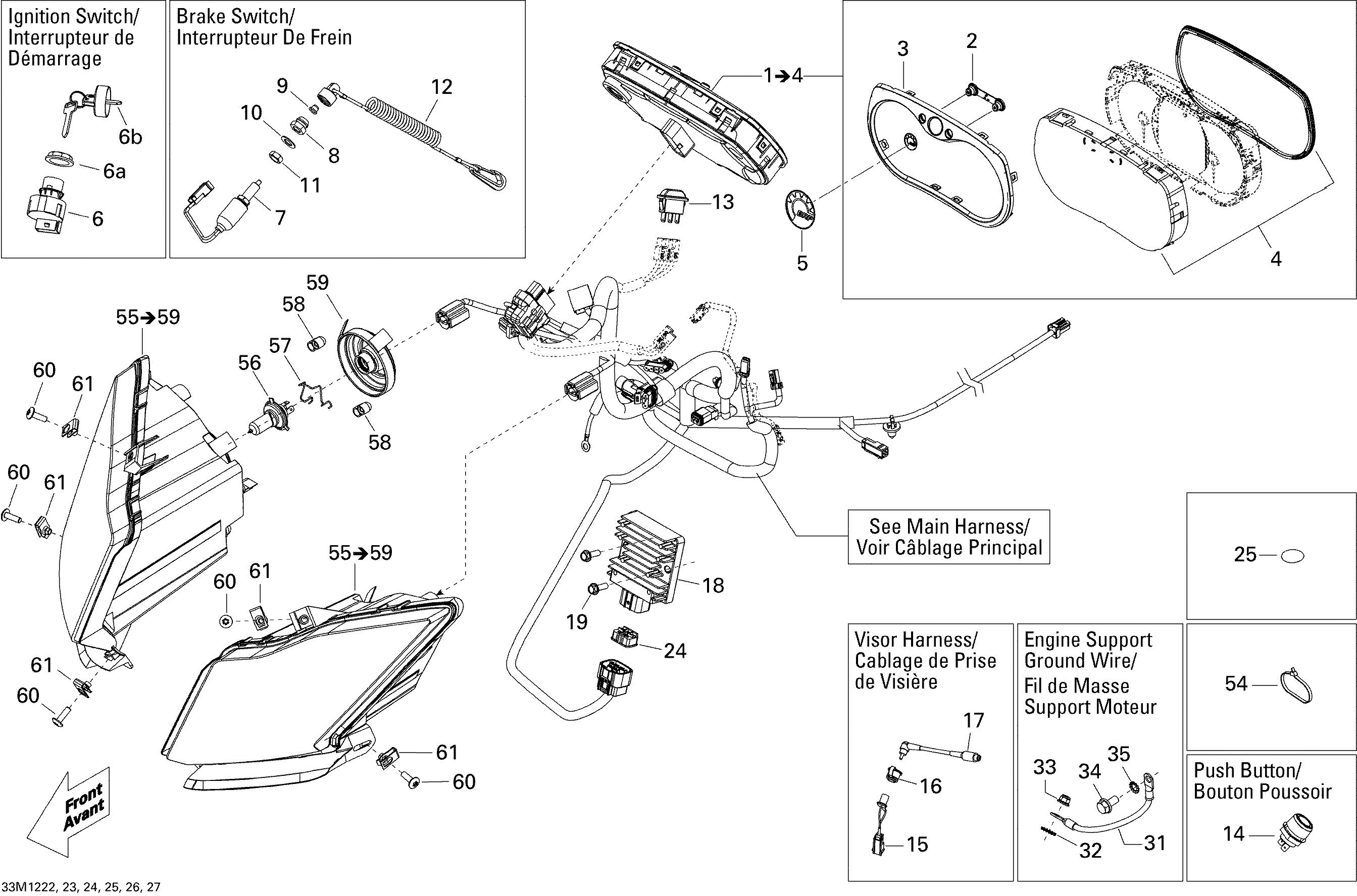

10- Electrical System для BRP Ski-Doo MXZ TNT 550F XP-FAN - 2012

  • №
    Артикул
    Название
  • 1
    515176992 Speedometer
    Speedometer
  • 3
    415129491 Ring Gage Speedometer
    Ring Gage Speedometer
  • 4
    415129349 Lens
    Lens
  • 5
    219902677 Logo BRP, 20 mm
    Logo BRP, 20 mm
  • 6
    515177063 Ignition Swirch. Includes 6 to 6b
    Ignition Swirch. Includes 6 to 6b
  • 7
    515175653 Brake Switch
    Brake Switch
  • 8
    515145900 Switch Nut
    Switch Nut
  • 9
    570151100 Plunger Cap
    Plunger Cap
  • 10
    250200084 Flat Washer
    Flat Washer
  • 11
    732610010 RH Hex. Jam Nut M10
    RH Hex. Jam Nut M10
  • 12
    515176463 Cap Ass'y
    Cap Ass'y
  • 18
    515176699 Voltage Regulator
    Voltage Regulator
  • 19
    210262040 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 24
    515176681 Lock
    Lock
  • 25
    518325560 Adhesive Patch
    Adhesive Patch
  • 31
    515176745 Ground Wire
    Ground Wire
  • 32
    250200041 Lock Washer Serrated M6
    Lock Washer Serrated M6
  • 33
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 34
    207581646 Hex. Flanged Screw M8 X 16, Scotch Grip
    Hex. Flanged Screw M8 X 16, Scotch Grip
  • 35
    234481608 Serrated Lock Washer 8 mm
    Serrated Lock Washer 8 mm
  • 54
    293750001 Tie-Rap 94 mm
    Tie-Rap 94 mm
  • 54
    293750002 Tie-Rap 142 mm
    Tie-Rap 142 mm
  • 54
    293750008 Tie-Rap 350 mm
    Tie-Rap 350 mm
  • 54
    293750009 Tie-Rap 173 mm
    Tie-Rap 173 mm
  • 54
    414115200 Tie-Rap 180 mm
    Tie-Rap 180 mm
  • 55
    517304194 RH Headlamp Ass'y. Includes 55 to 59
    RH Headlamp Ass'y. Includes 55 to 59
  • 55
    517304195 LH Headlamp Ass'y. Includes 55 to 59
    LH Headlamp Ass'y. Includes 55 to 59
  • 56
    515176274 Halogen Bulb, 60/55 W, 12 V
    Halogen Bulb, 60/55 W, 12 V
  • 57
    515176493 Bulb Holder
    Bulb Holder
  • 58
    515176498 Cap
    Cap
  • 59
    515176499 Cover
    Cover
  • 60
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 61
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
