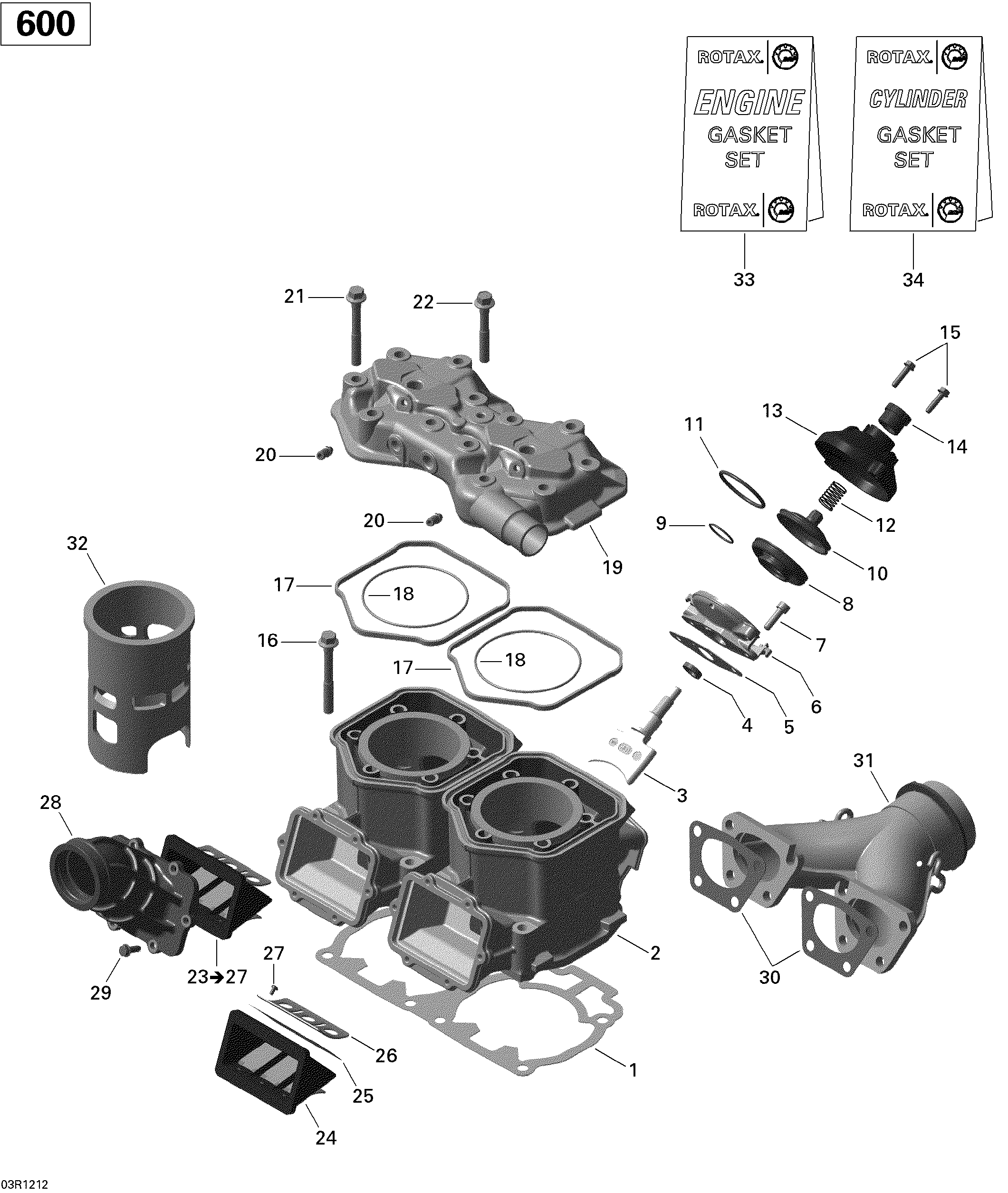

01- Cylinder and Cylinder Head для BRP Ski-Doo MXZ TNT & Sport 600 XP - 2012
-
№АртикулНазвание
-
1420931581 Gasket 0.4 mmGasket 0.4 mm
-
1420431420 Gasket 0.5 mmGasket 0.5 mm
-
1420931582 Gasket 0.6 mmGasket 0.6 mm
-
1420931962 Gasket 0.7 mmGasket 0.7 mm
-
1420431423 Gasket 0.8 mmGasket 0.8 mm
-
1420431424 Gasket 0.9 mmGasket 0.9 mm
-
2420613628 Cylinder With SleeveCylinder With Sleeve
-
3420854370 Exhaust ValveExhaust Valve
-
4420950730 Oil SealOil Seal
-
5420250239 GasketGasket
-
6420854266 Valve HousingValve Housing
-
7205062044 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
8420260723 Exhaust BellowsExhaust Bellows
-
9420838255 Hose SpringHose Spring
-
10420854449 Exhaust ValveExhaust Valve
-
11420939280 Hose SpringHose Spring
-
12420239944 SpringSpring
-
13420911552 Valve CoverValve Cover
-
14420241221 Adjuster ScrewAdjuster Screw
-
15420841555 Hex. Tapping Screw M5 X 20Hex. Tapping Screw M5 X 20
-
16420640951 Hex. Screw M8 X 68.5Hex. Screw M8 X 68.5
-
17420931590 Rubber RingRubber Ring
-
18293300026 O-RingO-Ring
-
19420413011 Cylinder Head CoverCylinder Head Cover
-
20420924724 Hose NippleHose Nipple
-
21420841306 Hex. Collar Screw M8 X 65Hex. Collar Screw M8 X 65
-
22420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
23420924519 Reed Valve Ass'y. Includes 23 to 27Reed Valve Ass'y. Includes 23 to 27
-
25420924532 Reed PedalReed Pedal
-
26420924539 Reed Pedal StopReed Pedal Stop
-
27420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
28420667490 Intake SocketIntake Socket
-
29420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
30420931610 GasketGasket
-
31420673131 Exhaust ManifoldExhaust Manifold
-
32420923443 Cylinder SleeveCylinder Sleeve
-
33420893070 Gasket Set, EngineGasket Set, Engine
-
34420893075 Gasket Set, CylinderGasket Set, Cylinder
