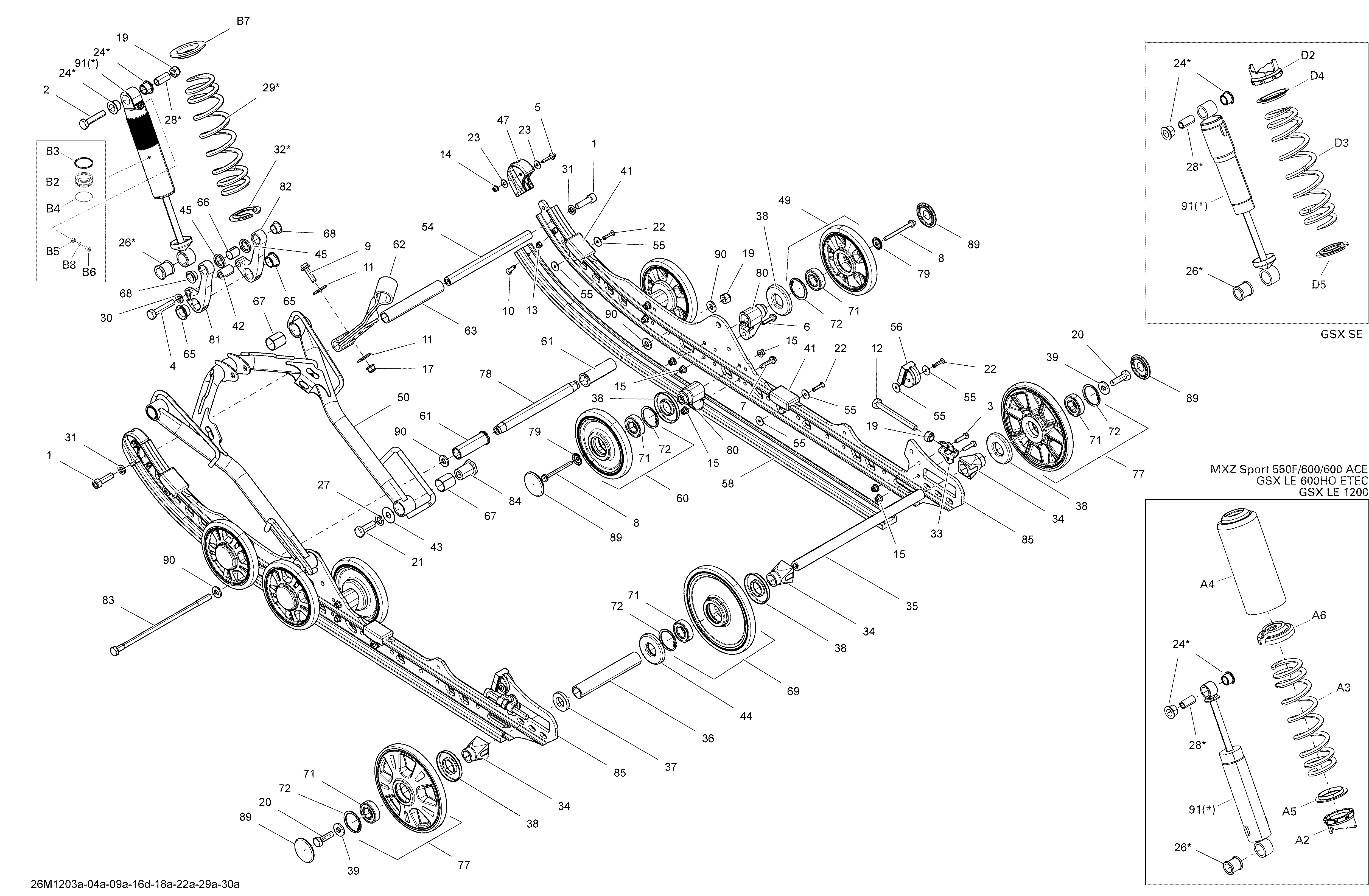

08- Rear Suspension Front Arm And Base для BRP Ski-Doo MXZ Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
2207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
3250000479 Hex. Screw Cap Full Thread M6 X 25Hex. Screw Cap Full Thread M6 X 25
-
4207205544 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
5207652544 Hex. Flanged Screw M5 X 25Hex. Flanged Screw M5 X 25
-
6250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
7250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
8250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
9207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
10208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
11224081301 Flat WasherFlat Washer
-
12230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14233251414 Hex. Flanged Elastic Nut M5Hex. Flanged Elastic Nut M5
-
15250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19250100132 Elastic Locking Nut M10Elastic Locking Nut M10
-
20250000019 Hex. Screw With NylonHex. Screw With Nylon
-
21250000225 Hex. Screw M12 X 35, Scotch GripHex. Screw M12 X 35, Scotch Grip
-
22293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
23391301600 WasherWasher
-
24503189117 CushionCushion
-
26503189271 CushionCushion
-
27503189276 WasherWasher
-
28503189282 BushingBushing
-
29503191329 SpringSpring
-
30503189564 WasherWasher
-
31503189564 WasherWasher
-
32503192029 Spring StopperSpring Stopper
-
33503192814 TensionerTensioner
-
34503190428 Rear Wheel SpacerRear Wheel Spacer
-
35503190429 Rear AxleRear Axle
-
36503190430 SpacerSpacer
-
37503190432 WasherWasher
-
38503190434 Labyrinth SealLabyrinth Seal
-
39503190439 WasherWasher
-
41503190576 Rubber StopperRubber Stopper
-
42503190604 Central Shock AxleCentral Shock Axle
-
43503190656 WasherWasher
-
44503190682 Labyrinth SealLabyrinth Seal
-
45503190694 Plastic SpacerPlastic Spacer
-
47503191137 Runner ProtectorRunner Protector
-
49503191151 Wheel 141 mm Ass'y, BlackWheel 141 mm Ass'y, Black
-
50503191579 Front Arm Ass'yFront Arm Ass'y
-
54503191260 Axle StrapAxle Strap
-
55503191273 WasherWasher
-
56503191291 Rubber StopperRubber Stopper
-
58503191301 Slider Shoe 120'', BlackSlider Shoe 120'', Black
-
60503191316 Wheel 141 Ass'yWheel 141 Ass'y
-
61503191351 Center BushingCenter Bushing
-
62503192360 Stopper StrapStopper Strap
-
63503191448 SpacerSpacer
-
65503191552 CushionCushion
-
66503191553 BushingBushing
-
67503191554 BushingBushing
-
68503191555 Swivel BushingSwivel Bushing
-
69503191559 Wheel, 180 mm, BlackWheel, 180 mm, Black
-
71503190396 Ball BearingBall Bearing
-
72415129371 Retaining RingRetaining Ring
-
77503191742 Wheel 180 mm Ass'y, BlackWheel 180 mm Ass'y, Black
-
78503191764 Center ShaftCenter Shaft
-
79503191820 Wheel Cup M6Wheel Cup M6
-
80503193082 Casted SupportCasted Support
-
81503191890 LH Rocker ArmLH Rocker Arm
-
82503191894 RH Rocker ArmRH Rocker Arm
-
83503191896 Bolt M10 X 251MMBolt M10 X 251MM
-
84503191966 Lower AxleLower Axle
-
85503192152 Runner 120''Runner 120''
-
89503192771 Wheel CapWheel Cap
-
90732900049 WasherWasher
-
91503191590 Center ShockCenter Shock
-
A2505070150 Adjustment CamAdjustment Cam
-
A3503191879 SpringSpring
-
A4503191126 ProtectorProtector
-
A5503191872 Spring GuideSpring Guide
-
A6706200881 Spring StopperSpring Stopper
