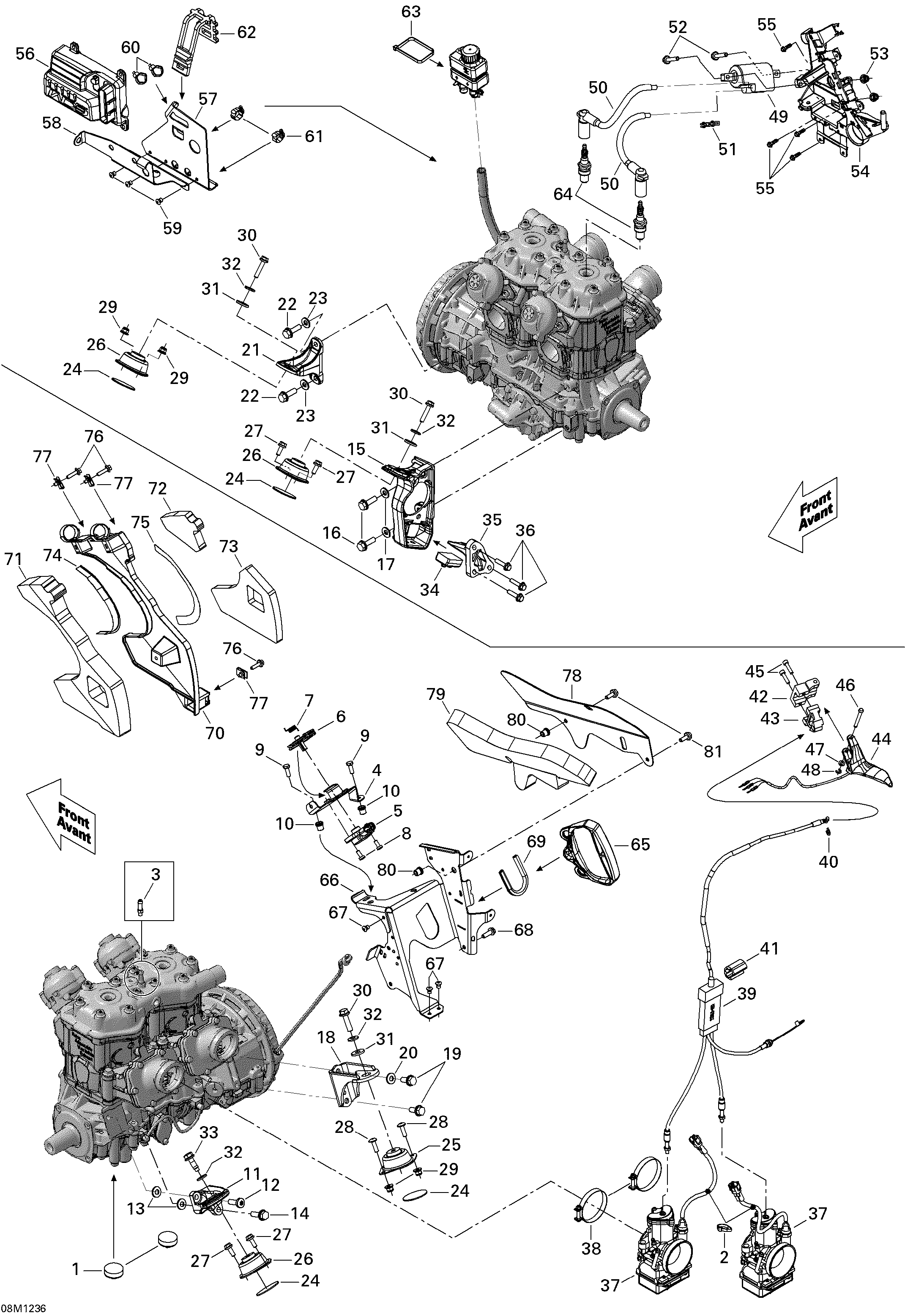

01- Engine And Engine Support для BRP Ski-Doo MX Z X 600RS - 2012
-
№АртикулНазвание
-
1512059738 StopperStopper
-
2414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
3420924724 Hose NippleHose Nipple
-
4512060336 TPS SupportTPS Support
-
5404162079 Sensor Ass'ySensor Ass'y
-
6512060335 Cap CamCap Cam
-
7512060638 Cam SpringCam Spring
-
8208651241 Phillips Screw M5 X 12Phillips Screw M5 X 12
-
9207361644 Hex. Screw M6 X 16, Scotch GripHex. Screw M6 X 16, Scotch Grip
-
10415107300 InsertInsert
-
11512060173 Rear Support, PTORear Support, PTO
-
12250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
15512060699 Front Support, PTOFront Support, PTO
-
16207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
17234281474 Conical Spring Washer M8Conical Spring Washer M8
-
18512060568 Rear Engine Support, MAGRear Engine Support, MAG
-
19207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
20234281474 Conical Spring Washer M8Conical Spring Washer M8
-
21512060108 Front Support, MAGFront Support, MAG
-
22207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24512060410 Rubber WasherRubber Washer
-
25512060772 Rubber MountRubber Mount
-
26512060385 Rubber MountRubber Mount
-
27207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
28250000335 Socket Head Screw M6 X 20Socket Head Screw M6 X 20
-
29233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
30207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
31503183200 Washer, YellowWasher, Yellow
-
32234281474 Conical Spring Washer M8Conical Spring Washer M8
-
33250000570 Hex. Screw M8Hex. Screw M8
-
34512060766 StopperStopper
-
35512060576 Stopper SupportStopper Support
-
36207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
37403138816 Carburator, TMX38-73Carburator, TMX38-73
-
38512059835 Gemi ClampGemi Clamp
-
39512060550 Throttle CableThrottle Cable
-
40414274500 CirclipCirclip
-
41512060313 ProtectorProtector
-
42512059538 Upper HousingUpper Housing
-
43512059537 Lower HousingLower Housing
-
44512060431 Handle Ass'yHandle Ass'y
-
45205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
46414438700 Lever PinLever Pin
-
47234051600 Flat Washer M5, StainlessFlat Washer M5, Stainless
-
48293370050 CirclipCirclip
-
49512059968 Ignition CoilIgnition Coil
-
50512060291 CableCable
-
51410914600 Plastic Clip, Spark Plug WirePlastic Clip, Spark Plug Wire
-
52207663044 Hex. Flanged Screw M6 X 30Hex. Flanged Screw M6 X 30
-
53233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
54512060746 Coils SupportCoils Support
-
55241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
56512060804 Calibrated ModuleCalibrated Module
-
57512060337 ECM SupportECM Support
-
58512060379 Tank SupportTank Support
-
59390909200 Avex RivetAvex Rivet
-
60414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
61293650172 Tridon Gear ClampTridon Gear Clamp
-
62570069700 LatchLatch
-
63293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
64512059552 Spark Plug, NGK BR9ECS-5Spark Plug, NGK BR9ECS-5
-
65512060136 Starter GripStarter Grip
-
66512060770 Grip SupportGrip Support
-
67390909200 Avex RivetAvex Rivet
-
68210262080 Hex. Forming Screw M6 X 20Hex. Forming Screw M6 X 20
-
69414506600 TrimTrim
-
70512060339 Noise ShieldNoise Shield
-
71512060343 Interior Noise FoamInterior Noise Foam
-
72512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
73512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
74512060574 Heat ShieldHeat Shield
-
75512060575 Heat ShieldHeat Shield
-
76207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
77250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
78512060492 Rear Noise ShieldRear Noise Shield
-
79512060381 Rear Noise FoamRear Noise Foam
-
80415107300 InsertInsert
-
81207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
