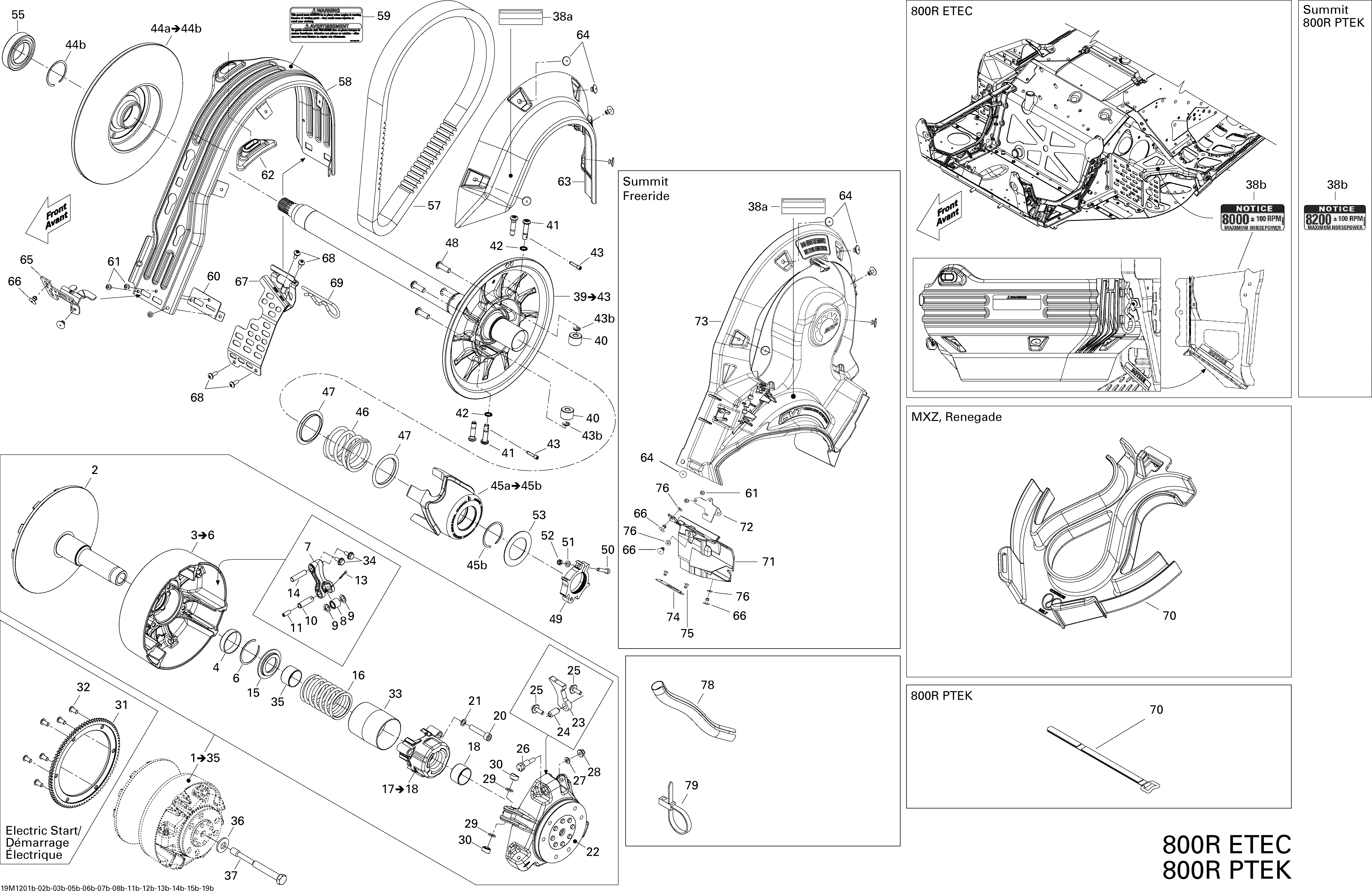

05- Pulley System для BRP Ski-Doo Freeride 137 & 146 & 154 800RETEC XP - 2012

  • №
    Артикул
    Название
  • 2
    417223232 Fixed Flange Ass'y
    Fixed Flange Ass'y
  • 3
    417223444 Sliding Flange Ass'y. Includes 3 to 6
    Sliding Flange Ass'y. Includes 3 to 6
  • 4
    417223086 Bushing
    Bushing
  • 6
    293370071 Circlip
    Circlip
  • 7
    417222671 Lever
    Lever
  • 8
    417222947 Roller
    Roller
  • 9
    417004302 Stopper Washer
    Stopper Washer
  • 10
    417222594 Pin. Freeride 137, Europe 146-154
    Pin. Freeride 137, Europe 146-154
  • 10
    417223177 Dowel Pin Ass'y. Freeride 146,154 X 2.2 and 2.5
    Dowel Pin Ass'y. Freeride 146,154 X 2.2 and 2.5
  • 10
    417222595 Threaded Pin, M6. Freeride 146,154 X 2.2 and 2.5
    Threaded Pin, M6. Freeride 146,154 X 2.2 and 2.5
  • 11
    250000407 Socket Set Screw M6 X 12. Freeride 146,154 X 2.2 and 2.5
    Socket Set Screw M6 X 12. Freeride 146,154 X 2.2 and 2.5
  • 13
    250400060 Cotter Pin
    Cotter Pin
  • 14
    417223164 Lever Axle
    Lever Axle
  • 15
    417222312 Spring Seat
    Spring Seat
  • 16
    415034900 Spring, Violet/blue. Freeride 137
    Spring, Violet/blue. Freeride 137
  • 16
    414949500 Spring, Violet/pink. Freeride 146,154 X 2.2 and 2.5
    Spring, Violet/pink. Freeride 146,154 X 2.2 and 2.5
  • 16
    414742100 Spring Yellow/Green. Freeride 146,154 Europe
    Spring Yellow/Green. Freeride 146,154 Europe
  • 17
    417222759 Spring Cover Ass'y. Includes 17 to 18
    Spring Cover Ass'y. Includes 17 to 18
  • 18
    417009204 Bushing
    Bushing
  • 20
    205084044 Socket Head Screw M8 X 40
    Socket Head Screw M8 X 40
  • 21
    250200009 Lock Washer 8 mm
    Lock Washer 8 mm
  • 22
    417223666 Governor Cup Ass'y
    Governor Cup Ass'y
  • 23
    417222508 Ramp 413. Freeride 137, Europe 146-154
    Ramp 413. Freeride 137, Europe 146-154
  • 23
    417223098 Ramp 441. Freeride 146,154 X 2.2 and 2.5
    Ramp 441. Freeride 146,154 X 2.2 and 2.5
  • 24
    250400050 Spring Pin M10 X 22
    Spring Pin M10 X 22
  • 25
    250000418 Flanged Hex. Screw M6 X 18, Scotch Grip
    Flanged Hex. Screw M6 X 18, Scotch Grip
  • 26
    417223501 Calibration Screw
    Calibration Screw
  • 27
    417005600 Washer
    Washer
  • 28
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 29
    732401030 O-Ring
    O-Ring
  • 30
    417223271 Slider Shoe
    Slider Shoe
  • 31
    417222952 Ring Gear
    Ring Gear
  • 32
    250000533 Hex. Flange Screw M8 X 16
    Hex. Flange Screw M8 X 16
  • 33
    417009205 Guard
    Guard
  • 34
    250000416 Serrated Hex. Flange Bolt M6
    Serrated Hex. Flange Bolt M6
  • 35
    417223471 Bushing
    Bushing
  • 36
    250200006 Spring Washer 14 mm
    Spring Washer 14 mm
  • 37
    417300409 TRA 7 Bolt (M14 X 153.5 mm)
    TRA 7 Bolt (M14 X 153.5 mm)
  • 39
    417127296 Fixe Flange Ass'y. Includes 39 to 43
    Fixe Flange Ass'y. Includes 39 to 43
  • 40
    417127016 Roller
    Roller
  • 41
    417127294 Pivot Stud
    Pivot Stud
  • 42
    250200009 Lock Washer 8 mm
    Lock Washer 8 mm
  • 43
    417222813 Pin Screw
    Pin Screw
  • 46
    417127118 Spring
    Spring
  • 47
    417126322 Swivel Abutment
    Swivel Abutment
  • 48
    250000283 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 49
    417127248 Adjustment Pulley Ass'y
    Adjustment Pulley Ass'y
  • 50
    205052544 Socket Screw M5 X 25
    Socket Screw M5 X 25
  • 51
    234051410 Flat Washer M5
    Flat Washer M5
  • 52
    232551414 Elastic Stop Nut M5
    Elastic Stop Nut M5
  • 53
    417127155 Washer
    Washer
  • 55
    504152574 Ball Bearing
    Ball Bearing
  • 57
    417300391 Belt
    Belt
  • 58
    417300357 Belt Guard
    Belt Guard
  • 59
    516004595 Security Label Decal English
    Security Label Decal English
  • 61
    390909200 Avex Rivet
    Avex Rivet
  • 62
    417300381 Guide
    Guide
  • 64
    293150103 Black Pop Rivet 3/16''
    Black Pop Rivet 3/16''
  • 66
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 67
    417300375 Belt Guard Bracket
    Belt Guard Bracket
  • 68
    250000145 Torx Screw M5 X 14
    Torx Screw M5 X 14
  • 69
    114045200 Hair Pin
    Hair Pin
  • 71
    417300422 Front Support
    Front Support
  • 72
    417300423 Front Bracket
    Front Bracket
  • 73
    417300420 CVT Pulley Air Duct
    CVT Pulley Air Duct
  • 74
    417300421 Reinforcement Plate
    Reinforcement Plate
  • 75
    390909100 Avex Rivet
    Avex Rivet
  • 76
    517225900 Flat Washer
    Flat Washer
  • 38a
    516004542 English Decal
    English Decal
  • 38b
    516005118 RPM Decal, (English Version)
    RPM Decal, (English Version)
  • 44a
    417126955 Sliding Flange Ass'y. Includes 44a to 44b
    Sliding Flange Ass'y. Includes 44a to 44b
  • 44b
    293370049 Circlip
    Circlip
  • 45a
    417126956 Cam Ass'y. Inccludes 45a to 45b
    Cam Ass'y. Inccludes 45a to 45b
  • 45b
    293370049 Circlip
    Circlip
