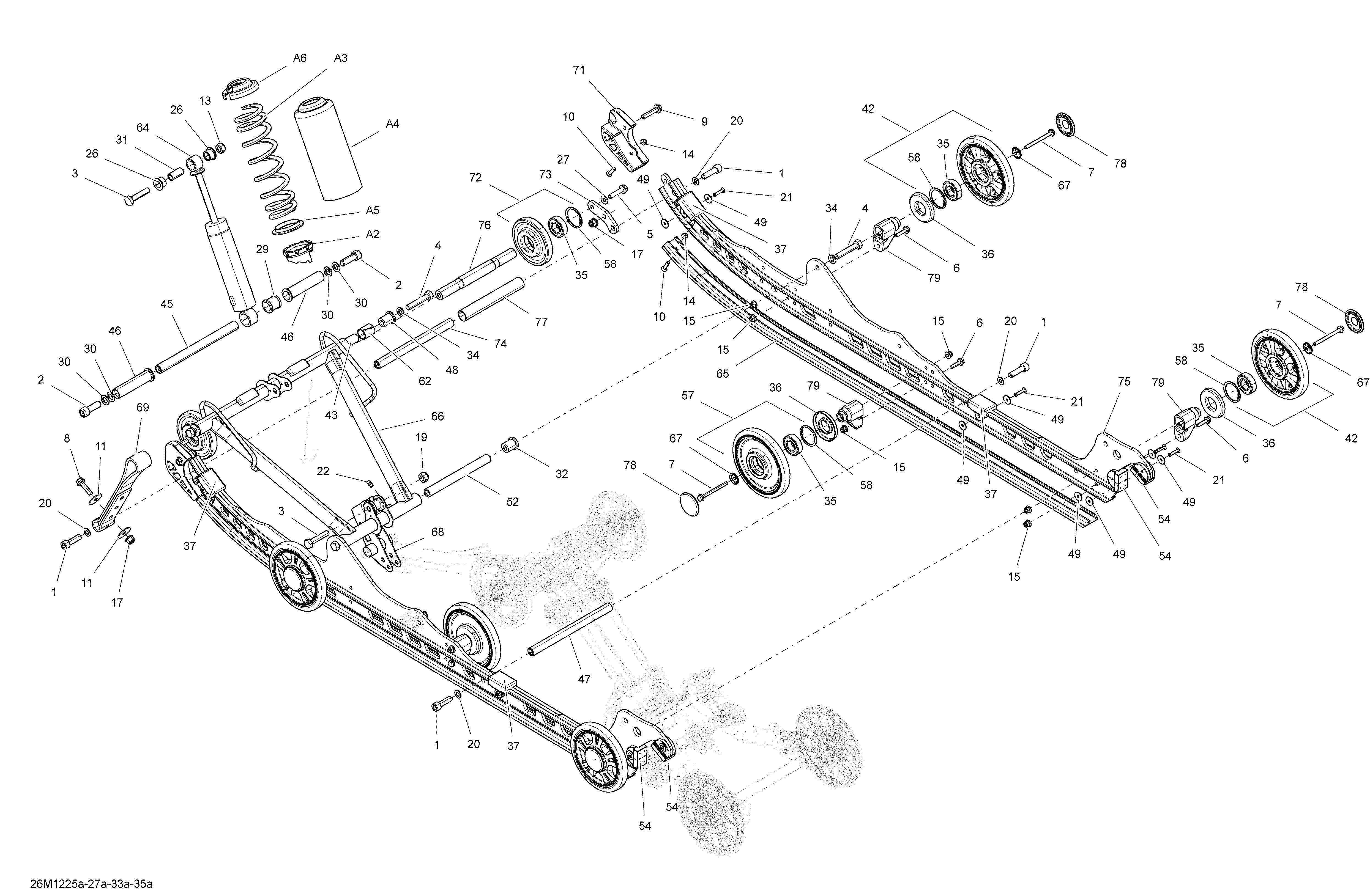

08- Rear Suspension Base And Front Arm для BRP Ski-Doo Expedition Sport 600ACE LFF - 2012
-
№АртикулНазвание
-
1205503544 Socket Head Screw M10 X 35, Scotch GripSocket Head Screw M10 X 35, Scotch Grip
-
2205523544 Socket Head Screw M12 X 35, Scotch GripSocket Head Screw M12 X 35, Scotch Grip
-
3207005044 Hex. Screw M10 X 50Hex. Screw M10 X 50
-
4207205586 Hex. Screw M10 X 55, Scotch GripHex. Screw M10 X 55, Scotch Grip
-
5207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
6250000522 Hex Flanged Screw M6 x 25Hex Flanged Screw M6 x 25
-
7250000475 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
8207683044 Hex. Flanged Screw M8 X 30Hex. Flanged Screw M8 X 30
-
9207684044 Hex. Flanged Screw M8 X 40Hex. Flanged Screw M8 X 40
-
10208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
11224081301 Flat WasherFlat Washer
-
13233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
14232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
15250100130 Elastic Flange Nut M6Elastic Flange Nut M6
-
17233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
19233601416 Elastic Locking Nut M10Elastic Locking Nut M10
-
20503189564 WasherWasher
-
21293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
22408200700 Grease FittingGrease Fitting
-
26503189117 CushionCushion
-
27503189157 WasherWasher
-
29503189271 CushionCushion
-
30503189276 WasherWasher
-
31503189282 BushingBushing
-
32503189324 CushionCushion
-
34503192496 WasherWasher
-
35503190396 Ball BearingBall Bearing
-
37503190576 Rubber StopperRubber Stopper
-
42503191152 Wheel Ass'y, 147 mmWheel Ass'y, 147 mm
-
43503191215 Upper ShaftUpper Shaft
-
45503191258 Center Shock ShaftCenter Shock Shaft
-
46503191259 Center BushingCenter Bushing
-
47503191260 Axle StrapAxle Strap
-
48503191262 BushingBushing
-
49503191273 WasherWasher
-
52503191279 Lower ShaftLower Shaft
-
54503191291 Rubber StopperRubber Stopper
-
57503191311 Wheel Ass'y, 147 mmWheel Ass'y, 147 mm
-
58415129371 Retaining RingRetaining Ring
-
62503191556 Extended BushingExtended Bushing
-
64503192266 Center ShockCenter Shock
-
65503192618 Slider 154Slider 154
-
66503191752 Front ArmFront Arm
-
67503191820 Wheel Cup M6Wheel Cup M6
-
68503192211 RockerRocker
-
69503192360 Stopper StrapStopper Strap
-
71503192610 ProtectorProtector
-
72503192611 Wheel 100Wheel 100
-
73503192612 PlatePlate
-
74503192613 Axle StrapAxle Strap
-
75503192617 Runner MachinedRunner Machined
-
76503192644 Front Wheel AxleFront Wheel Axle
-
77503192678 SpacerSpacer
-
78503192771 Wheel CapWheel Cap
-
79503193082 Casted SupportCasted Support
-
A2505070150 Adjustment CamAdjustment Cam
-
A3503191882 SpringSpring
-
A4503191126 ProtectorProtector
-
A5503191872 Spring GuideSpring Guide
-
A6706200881 Spring StopperSpring Stopper
