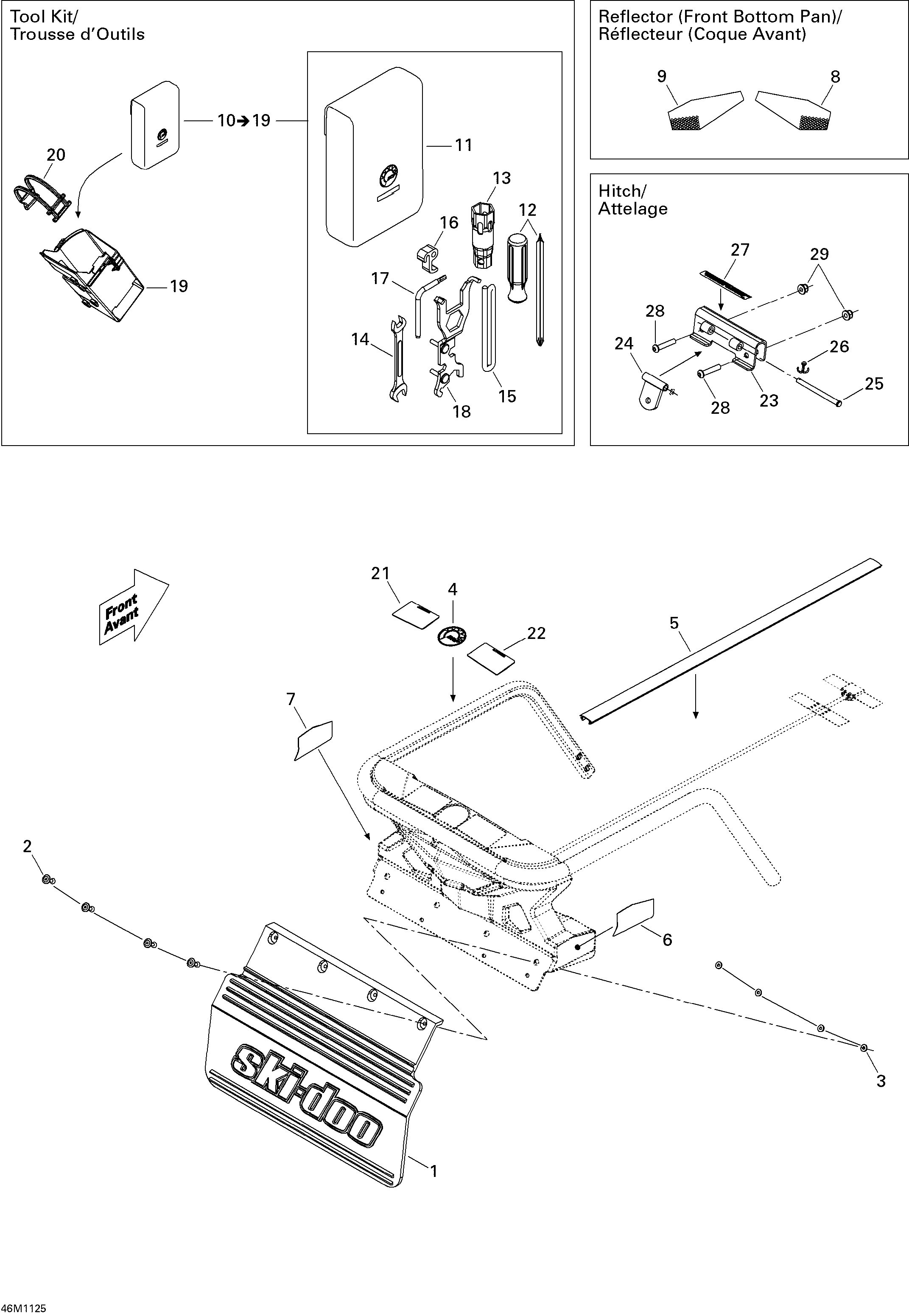

09- Utilities для BRP Ski-Doo Expedition Sport 550F XP-FAN - 2012
-
№АртикулНазвание
-
1520000606 Snow GuardSnow Guard
-
2293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
5520000829 Radiator TrimRadiator Trim
-
6520000881 RH Reflector. North AmericaRH Reflector. North America
-
7520000880 LH Reflector. North AmericaLH Reflector. North America
-
8520000718 RH Front ReflectorRH Front Reflector
-
9520000719 LH Front ReflectorLH Front Reflector
-
10529000065 Tool Kit. Includes 10 to 19Tool Kit. Includes 10 to 19
-
12529000004 Screw DriverScrew Driver
-
14529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
15412500200 Starter Rope, MeterStarter Rope, Meter
-
16529000060 Starter GripStarter Grip
-
17520001142 Spacing ToolSpacing Tool
-
18520000988 Wrench SuspensionWrench Suspension
-
19520000894 Tool Kit RackTool Kit Rack
-
20520000528 LatchLatch
-
21516005043 LH Warning Decal, SecurityLH Warning Decal, Security
-
22516005044 RH Warning Decal, SecurityRH Warning Decal, Security
-
23511000768 SupportSupport
-
24511000521 Hitch Plate WeldedHitch Plate Welded
-
25511000520 Clevis PinClevis Pin
-
26371800200 Cotter PinCotter Pin
-
27516004568 Warning Decal, SecurityWarning Decal, Security
-
28205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
29233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
