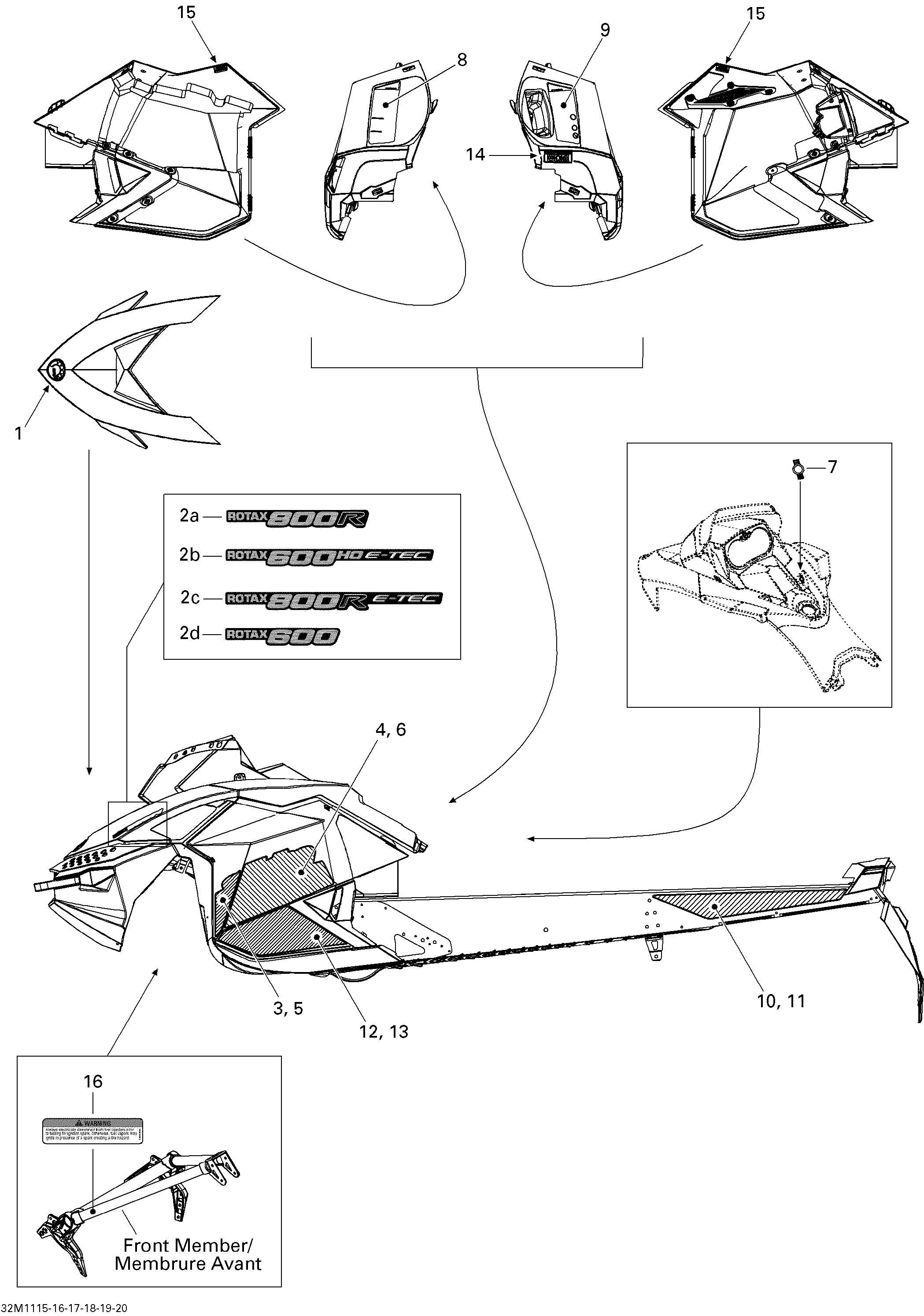

09- Decals 800RETEC для BRP Ski-Doo Summit X 800R E-TEC - 2011
-
№АртикулНазвание
-
1219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
2c516004253 Hood Decal, Rotax 800R E-TECHood Decal, Rotax 800R E-TEC
-
6516004445 Side Decal. Black-White ModelSide Decal. Black-White Model
-
6516004455 Side Decal. Black-Black ModelSide Decal. Black-Black Model
-
8516004561 Warning Decal, SecurityWarning Decal, Security
-
9516004589 Warning Decal, SecurityWarning Decal, Security
-
10516004450 RH Frame Decal, REV XP 146''. Black-White Model, Track 146''RH Frame Decal, REV XP 146''. Black-White Model, Track 146''
-
10516004452 RH Frame Decal, REV XP 154''. Black-White Model, Track 154''RH Frame Decal, REV XP 154''. Black-White Model, Track 154''
-
10516004454 RH Frame Decal, REV XP 163''. Black-White Model, Track 163''RH Frame Decal, REV XP 163''. Black-White Model, Track 163''
-
10516004460 RH Frame Decal, REV XP 146''. Black-Black Model, Track 146''RH Frame Decal, REV XP 146''. Black-Black Model, Track 146''
-
10516004462 RH Frame Decal, REV XP 154''. Black-Black Model, Track 154''RH Frame Decal, REV XP 154''. Black-Black Model, Track 154''
-
10516004464 RH Frame Decal, REV XP 163''. Black-Black Model, Track 163''RH Frame Decal, REV XP 163''. Black-Black Model, Track 163''
-
11516004449 LH Frame Decal, REV XP 146''. Black-White Model, Track 146''LH Frame Decal, REV XP 146''. Black-White Model, Track 146''
-
11516004451 LH Frame Decal, REV XP 154''. Black-White Model, Track 154''LH Frame Decal, REV XP 154''. Black-White Model, Track 154''
-
11516004453 LH Frame Decal, REV XP 163''. Black-White Model, Track 163''LH Frame Decal, REV XP 163''. Black-White Model, Track 163''
-
11516004459 LH Frame Decal, REV XP 146''. Black-Black Model, Track 146''LH Frame Decal, REV XP 146''. Black-Black Model, Track 146''
-
11516004461 LH Frame Decal, REV XP 154''. Black-Black Model, Track 154''LH Frame Decal, REV XP 154''. Black-Black Model, Track 154''
-
11516004463 LH Frame Decal, REV XP 163''. Black-Black Model, Track 163''LH Frame Decal, REV XP 163''. Black-Black Model, Track 163''
-
12516004395 RH Lower Decal. Black-Black ModelRH Lower Decal. Black-Black Model
-
12516004448 RH Lower Decal. Black-White ModelRH Lower Decal. Black-White Model
-
13516004394 LH Lower Decal. Black-Black ModelLH Lower Decal. Black-Black Model
-
13516004447 LH Lower Decal. Black-White ModelLH Lower Decal. Black-White Model
-
14516004696 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
15516004566 Warning Decal, Hot PartsWarning Decal, Hot Parts
-
16516003940 Warning Decal, InjectorsWarning Decal, Injectors
