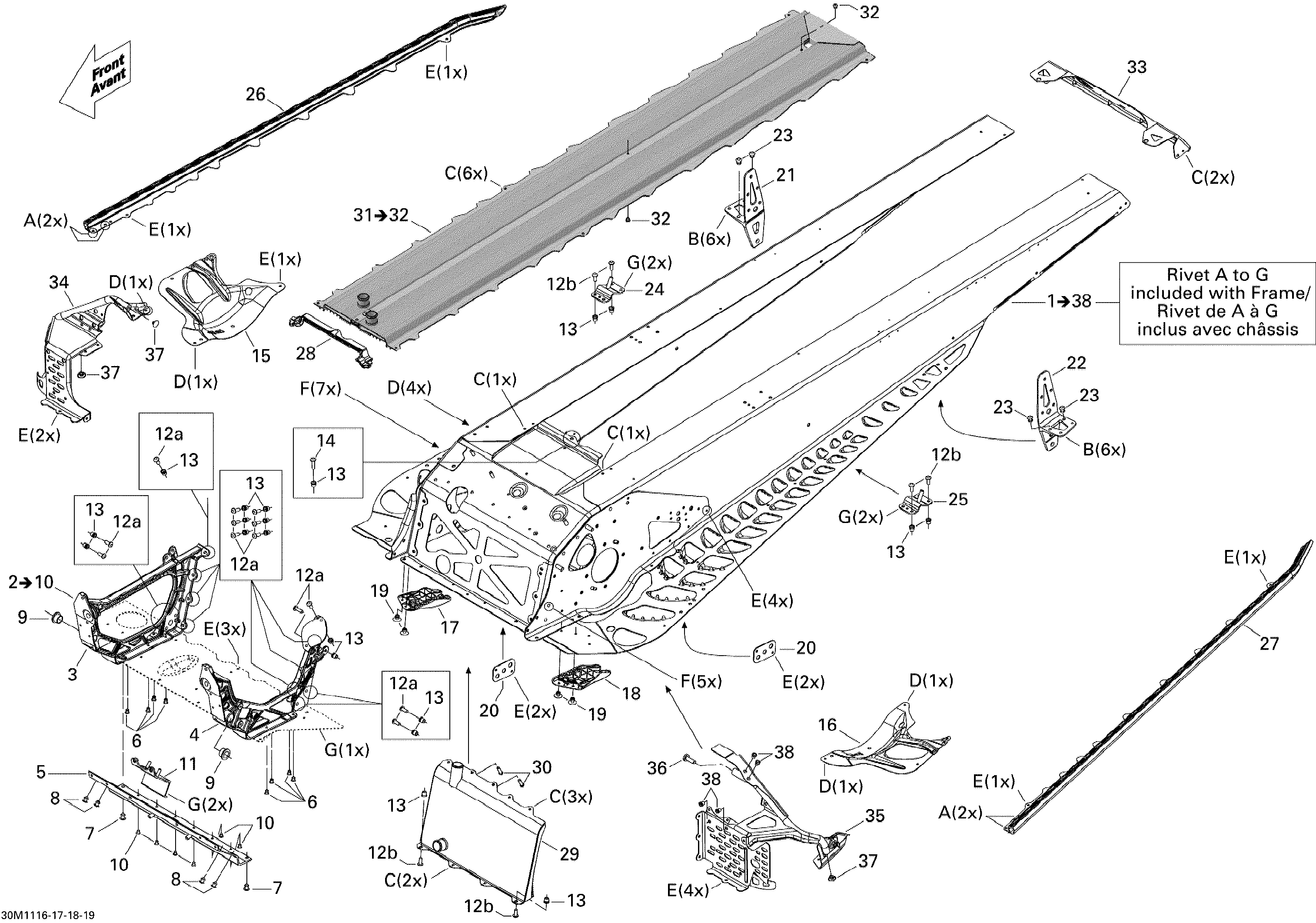

09- Frame для BRP Ski-Doo Summit EVEREST 800R E-TEC - 2011

  • №
    Артикул
    Название
  • 1
    415129582 Frame 146''. Includes 1 to 38, Track 146''
    Frame 146''. Includes 1 to 38, Track 146''
  • 1
    415129581 Frame 154''. Includes 1 to 38, Track 154''
    Frame 154''. Includes 1 to 38, Track 154''
  • 2
    518326290 E Module Ass'y. Includes 2 to 10
    E Module Ass'y. Includes 2 to 10
  • 3
    518325922 RH Member
    RH Member
  • 4
    518325923 LH Member
    LH Member
  • 5
    518326198 Front Member
    Front Member
  • 6
    293150144 Stavex Rivet
    Stavex Rivet
  • 7
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 8
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 9
    505070954 Cushion
    Cushion
  • 11
    518325943 MAG Engine Support
    MAG Engine Support
  • 12a
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 12b
    207661644 Hex. Flanged Screw M6 X 16
    Hex. Flanged Screw M6 X 16
  • 13
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 14
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 15
    518324874 RH Reinforcement
    RH Reinforcement
  • 16
    518324875 LH Reinforcement
    LH Reinforcement
  • 17
    518325782 RH Deflector
    RH Deflector
  • 18
    518325783 LH Deflector
    LH Deflector
  • 19
    293150104 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 20
    518201321 Reinforcement Plate
    Reinforcement Plate
  • 21
    518324976 RH Suspension Bracket
    RH Suspension Bracket
  • 22
    518324977 LH Suspension Bracket
    LH Suspension Bracket
  • 23
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 24
    518325973 RH Rear Base
    RH Rear Base
  • 25
    518325974 LH Rear Base
    LH Rear Base
  • 26
    518325159 RH Roller
    RH Roller
  • 27
    518325160 LH Roller
    LH Roller
  • 28
    518326656 Seal
    Seal
  • 29
    518326486 Front Radiator
    Front Radiator
  • 30
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 31
    518326728 Rear Radiator Ass'y, 146''. Includes 31 to 32, Track 146''
    Rear Radiator Ass'y, 146''. Includes 31 to 32, Track 146''
  • 31
    518326692 Rear Radiator Ass'y, 154''. Includes 31 to 32, Track 154''
    Rear Radiator Ass'y, 154''. Includes 31 to 32, Track 154''
  • 32
    293150144 Stavex Rivet
    Stavex Rivet
  • 33
    518325421 Rear Cap
    Rear Cap
  • 34
    518326216 RH Stirup
    RH Stirup
  • 35
    518326239 LH Stirup
    LH Stirup
  • 36
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 37
    293730042 Dart
    Dart
  • 38
    293450268 Insert
    Insert
  • A
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • B
    293150174 Rivet
    Rivet
  • C
    390909200 Avex Rivet
    Avex Rivet
  • D
    390909100 Avex Rivet
    Avex Rivet
  • E
    293150144 Stavex Rivet
    Stavex Rivet
  • F
    293150146 Henrob Rivet
    Henrob Rivet
  • G
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
