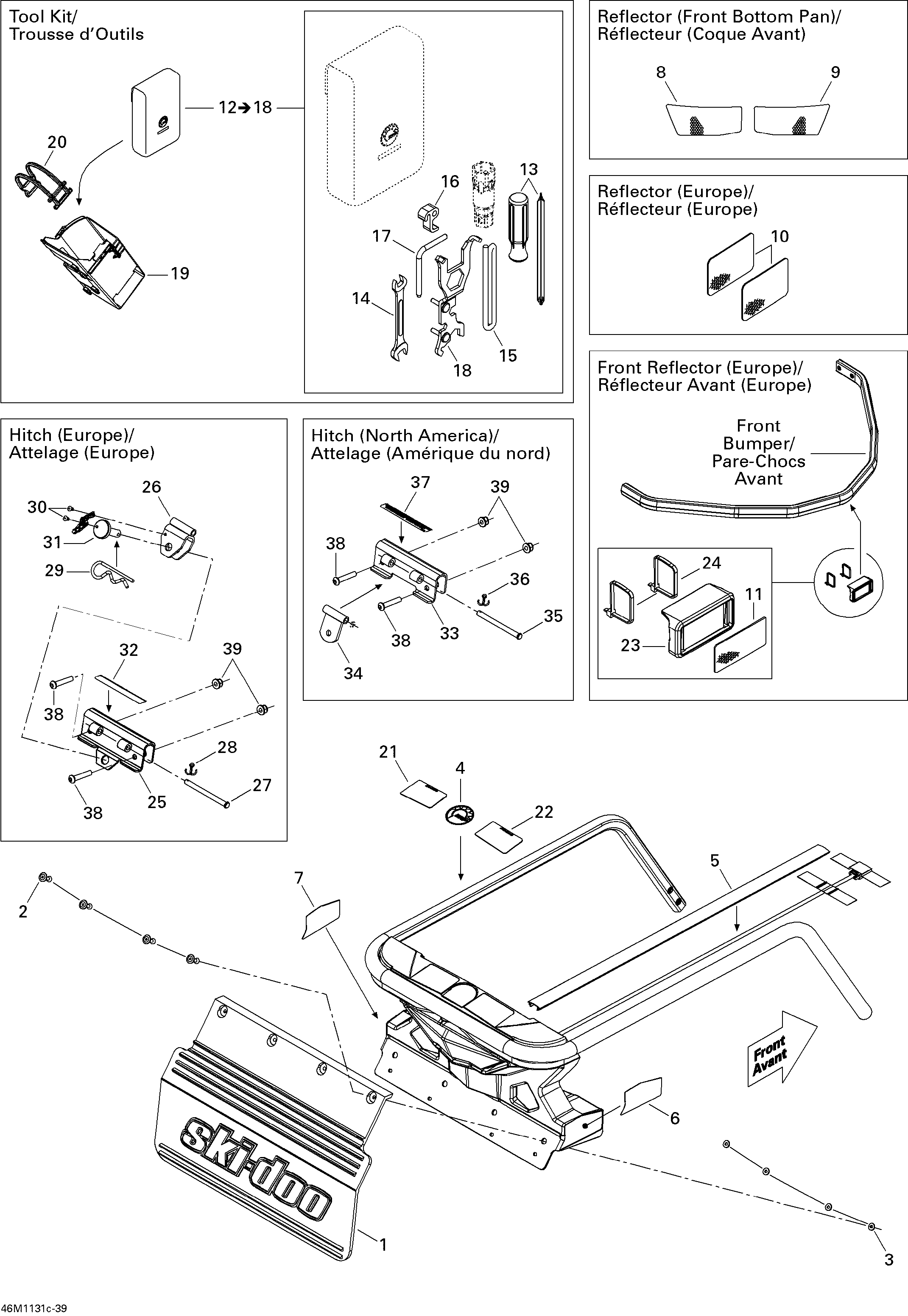

09- Utilities для BRP Ski-Doo Tundra LT 600ACE - 2011
-
№АртикулНазвание
-
1520000949 Snow GuardSnow Guard
-
2293150100 Pop Rivet 3/16''Pop Rivet 3/16''
-
3517124300 WasherWasher
-
4219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
6520000881 RH Reflector. North AmericaRH Reflector. North America
-
6520000883 RH Reflector. EuropeRH Reflector. Europe
-
7520000880 LH Reflector. North AmericaLH Reflector. North America
-
7520000882 LH Reflector. EuropeLH Reflector. Europe
-
8520000891 RH ReflectorRH Reflector
-
9520000892 LH ReflectorLH Reflector
-
10520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
11415037900 Reflector, White. EuropeReflector, White. Europe
-
12529000054 Tool Kit. Includes 12 to 18Tool Kit. Includes 12 to 18
-
13529000004 Screw DriverScrew Driver
-
14529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
15412500200 Starter Rope, MeterStarter Rope, Meter
-
16529019400 Starter GripStarter Grip
-
17520001028 Spacing ToolSpacing Tool
-
18520000988 Wrench SuspensionWrench Suspension
-
19520000894 Tool Kit RackTool Kit Rack
-
20520000528 LatchLatch
-
21516004583 LH Warning Decal, SecurityLH Warning Decal, Security
-
22516004605 RH Warning Decal, SecurityRH Warning Decal, Security
-
23520000871 Reflector Support. EuropeReflector Support. Europe
-
24293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
25511000554 Support. EuropeSupport. Europe
-
26511000588 Hitch Plate. EuropeHitch Plate. Europe
-
27511000520 Clevis Pin. EuropeClevis Pin. Europe
-
28371800200 Cotter Pin. EuropeCotter Pin. Europe
-
29114045200 Hair Pin. EuropeHair Pin. Europe
-
30390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
31511000555 Pin. EuropePin. Europe
-
32516004568 Warning Decal, Security. EuropeWarning Decal, Security. Europe
-
33511000768 Support. North AmericaSupport. North America
-
34511000521 Hitch Plate Welded. North AmericaHitch Plate Welded. North America
-
35511000520 Clevis Pin. North AmericaClevis Pin. North America
-
36371800200 Cotter Pin. North AmericaCotter Pin. North America
-
37516004568 Warning Decal, Security. North AmericaWarning Decal, Security. North America
-
38205484546 Socket Head Screw M8 X 45Socket Head Screw M8 X 45
-
39233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
