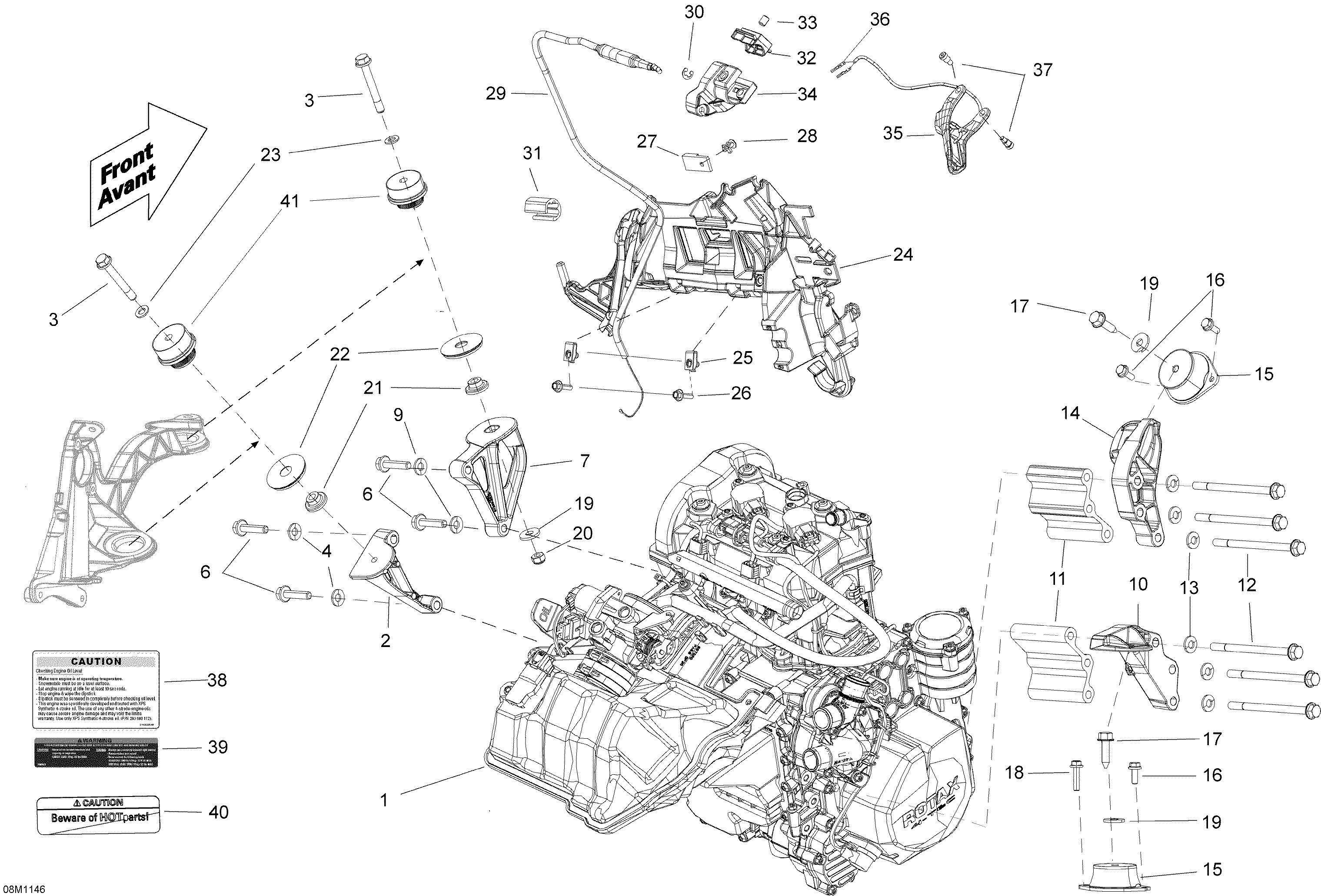

01- Engine And Engine Support для BRP Ski-Doo Skandic WT 600 ACE XU - 2011
-
№АртикулНазвание
-
1420060201 Long Block 602 ACELong Block 602 ACE
-
2512060474 Rear Support, PTORear Support, PTO
-
3207585086 Hex. Flanged Screw M8 X 50, Scotch GripHex. Flanged Screw M8 X 50, Scotch Grip
-
4234281474 Conical Spring Washer M8Conical Spring Washer M8
-
6207583586 Hex. Flanged Screw M8 X 35, Scotch GripHex. Flanged Screw M8 X 35, Scotch Grip
-
7512060475 Front Support, PTOFront Support, PTO
-
9234281474 Conical Spring Washer M8Conical Spring Washer M8
-
10512060497 Rear Support, MAGRear Support, MAG
-
11512060505 ShimShim
-
12230582044 Screw-Hex.Flange Din.6921 S.GripScrew-Hex.Flange Din.6921 S.Grip
-
13234281474 Conical Spring Washer M8Conical Spring Washer M8
-
14512060498 Front Support, MAGFront Support, MAG
-
15512060457 Rubber MountRubber Mount
-
16207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
17250000257 Cone Bolt, M8 X 30Cone Bolt, M8 X 30
-
18207586044 Hex. Flanged Screw M8 X 60, Scotch GripHex. Flanged Screw M8 X 60, Scotch Grip
-
19503183200 Washer, YellowWasher, Yellow
-
20232581414 Hex. Elastic Nut M8Hex. Elastic Nut M8
-
21512060285 SpacerSpacer
-
22512060647 StopperStopper
-
23250200008 Flat Washer 8 mmFlat Washer 8 mm
-
24512060509 Module SupportModule Support
-
25250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
26250000130 Torx Screw M5 X 20Torx Screw M5 X 20
-
27515175917 ClipClip
-
28293150027 Avdel RivetAvdel Rivet
-
29512060607 Throttle CableThrottle Cable
-
30414274500 CirclipCirclip
-
31512060313 ProtectorProtector
-
32512060198 Upper Housing Ass'yUpper Housing Ass'y
-
33414440800 Set Screw M8 X 10Set Screw M8 X 10
-
34512060430 Lower HousingLower Housing
-
35512060616 Throttle HandleThrottle Handle
-
36515175232 Male TerminalMale Terminal
-
37732601143 Flanged ScrewFlanged Screw
-
38516004718 Caution Decal, Checking Engine Oil LevelCaution Decal, Checking Engine Oil Level
-
39516003927 Warning DecalWarning Decal
-
40516004651 Caution Label, Air IntakeCaution Label, Air Intake
-
41512060295 Rubber MountRubber Mount
