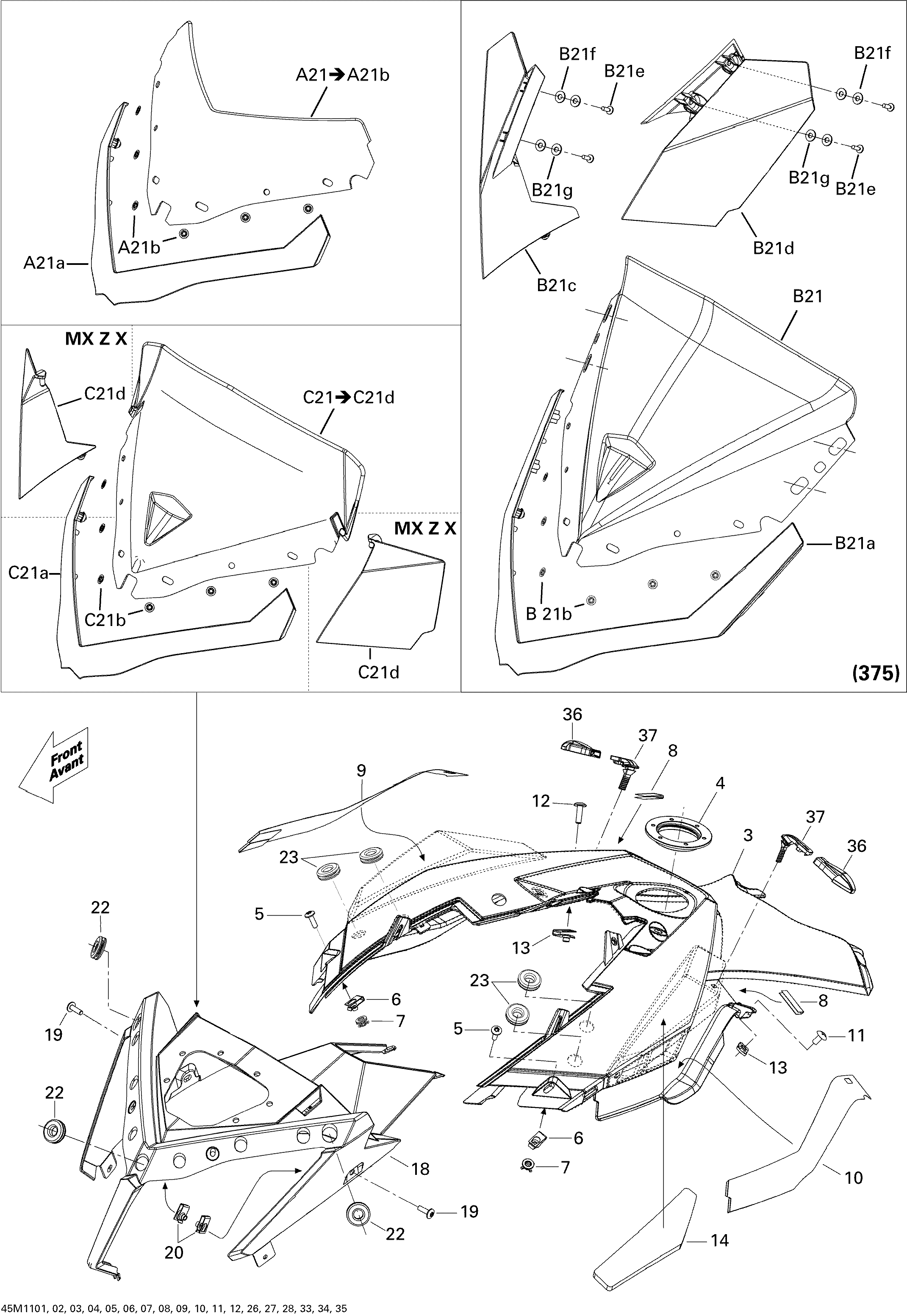

09- Windshield And Console для BRP Ski-Doo Renegade BackCountry, BackCountry X 600HO ETEC - 2011

  • №
    Артикул
    Название
  • 3
    517303924 Deep Black Console. Black Hood
    Deep Black Console. Black Hood
  • 3
    517304668 Roadster Red Console. Red Hood
    Roadster Red Console. Red Hood
  • 4
    517304518 Console Nut
    Console Nut
  • 5
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 6
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 8
    517304105 Console Decal. Red Hood
    Console Decal. Red Hood
  • 9
    517304103 RH Decal. Red Hood
    RH Decal. Red Hood
  • 10
    517304104 LH Decal. Red Hood
    LH Decal. Red Hood
  • 11
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 12
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 13
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 18
    517304575 Gauge Support
    Gauge Support
  • 19
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 20
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • B21
    860200478 Windsheld Kit 375. Includes B21 to B21g, BackCountry
    Windsheld Kit 375. Includes B21 to B21g, BackCountry
  • B21
    517304395 Windsheld 375mm. Windshield Only, BackCountry
    Windsheld 375mm. Windshield Only, BackCountry
  • B21a
    517303607 Windshield Support. BackCountry
    Windshield Support. BackCountry
  • B21b
    732610072 Push Nut. BackCountry
    Push Nut. BackCountry
  • 21c
    517303604 RH Air Deflector. BackCountry
    RH Air Deflector. BackCountry
  • 21d
    517303605 LH Air Deflector. BackCountry
    LH Air Deflector. BackCountry
  • 21e
    250000146 Truss Head Torx Screw K50 X 16. BackCountry
    Truss Head Torx Screw K50 X 16. BackCountry
  • 21f
    250200025 Washer M5. BackCountry
    Washer M5. BackCountry
  • 21g
    250200024 Rubber Washer 5 mm. BackCountry
    Rubber Washer 5 mm. BackCountry
  • C21
    517304390 Windshield 285 Ass'y. BackCountry X
    Windshield 285 Ass'y. BackCountry X
  • C21a
    517303757 Windshield Support. BackCountry X
    Windshield Support. BackCountry X
  • C21b
    732610072 Push Nut
    Push Nut
  • 22
    517303756 Grommet
    Grommet
  • 23
    517303756 Grommet
    Grommet
  • 36
    860200239 Black Latch Kit
    Black Latch Kit
  • 36
    517304435 End Piece Latch
    End Piece Latch
  • 37
    517303981 Panel Latch
    Panel Latch
