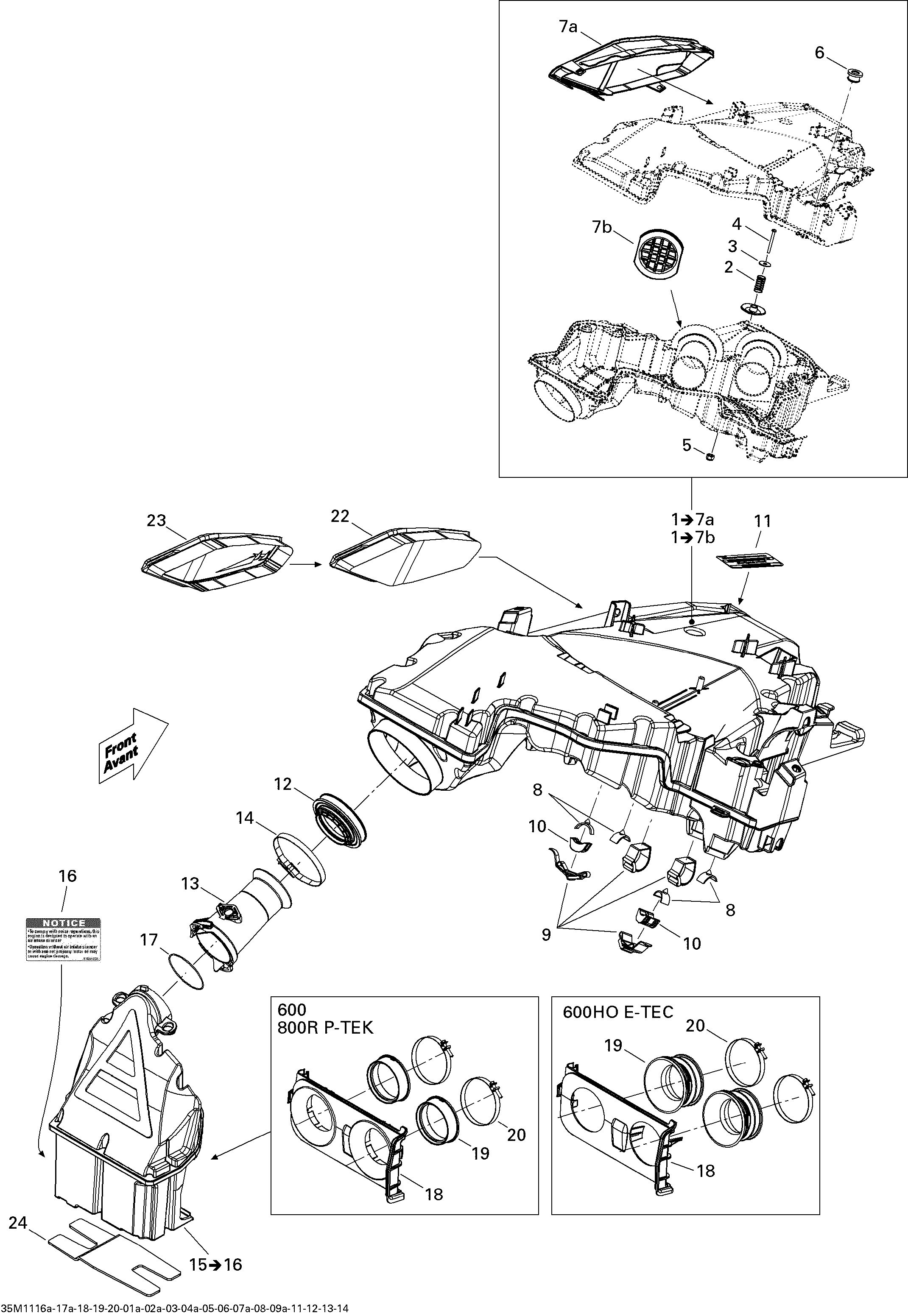

02- Air Intake System для BRP Ski-Doo Renegade BackCountry 800R PTEK - 2011

  • №
    Артикул
    Название
  • 1
    508000624 Secondary Chamber Ass'y. Includes 1 to 7a, 800R P-TEK
    Secondary Chamber Ass'y. Includes 1 to 7a, 800R P-TEK
  • 2
    508000576 Spring
    Spring
  • 3
    224060201 Flat Washer
    Flat Washer
  • 4
    205444086 Socket Head Screw M4 X 40
    Socket Head Screw M4 X 40
  • 5
    232541414 Elastic Stop Nut M4
    Elastic Stop Nut M4
  • 6
    508000574 Grommet
    Grommet
  • 7A
    508000568 Air Filter
    Air Filter
  • 8
    508000537 Stopper
    Stopper
  • 9
    508000532 Strip Velcro
    Strip Velcro
  • 10
    508000572 Bumper
    Bumper
  • 11
    516004566 Caution Decal, Hot Parts
    Caution Decal, Hot Parts
  • 12
    508000567 Boot
    Boot
  • 13
    508000662 Flute
    Flute
  • 14
    514052924 Norma Clamp
    Norma Clamp
  • 15
    508000680 Primary Chamber Ass'y. Includes 15 to 16, 800R P-TEK
    Primary Chamber Ass'y. Includes 15 to 16, 800R P-TEK
  • 16
    516004572 Decal, Air Intake
    Decal, Air Intake
  • 17
    293300140 O'Ring
    O'Ring
  • 18
    508000500 Plate Adapter. 800R P-TEK
    Plate Adapter. 800R P-TEK
  • 19
    508000501 Air Intake Adapter. 800R P-TEK
    Air Intake Adapter. 800R P-TEK
  • 20
    508000346 Gemi Clamp
    Gemi Clamp
  • 24
    508000674 Insulated Foam
    Insulated Foam
