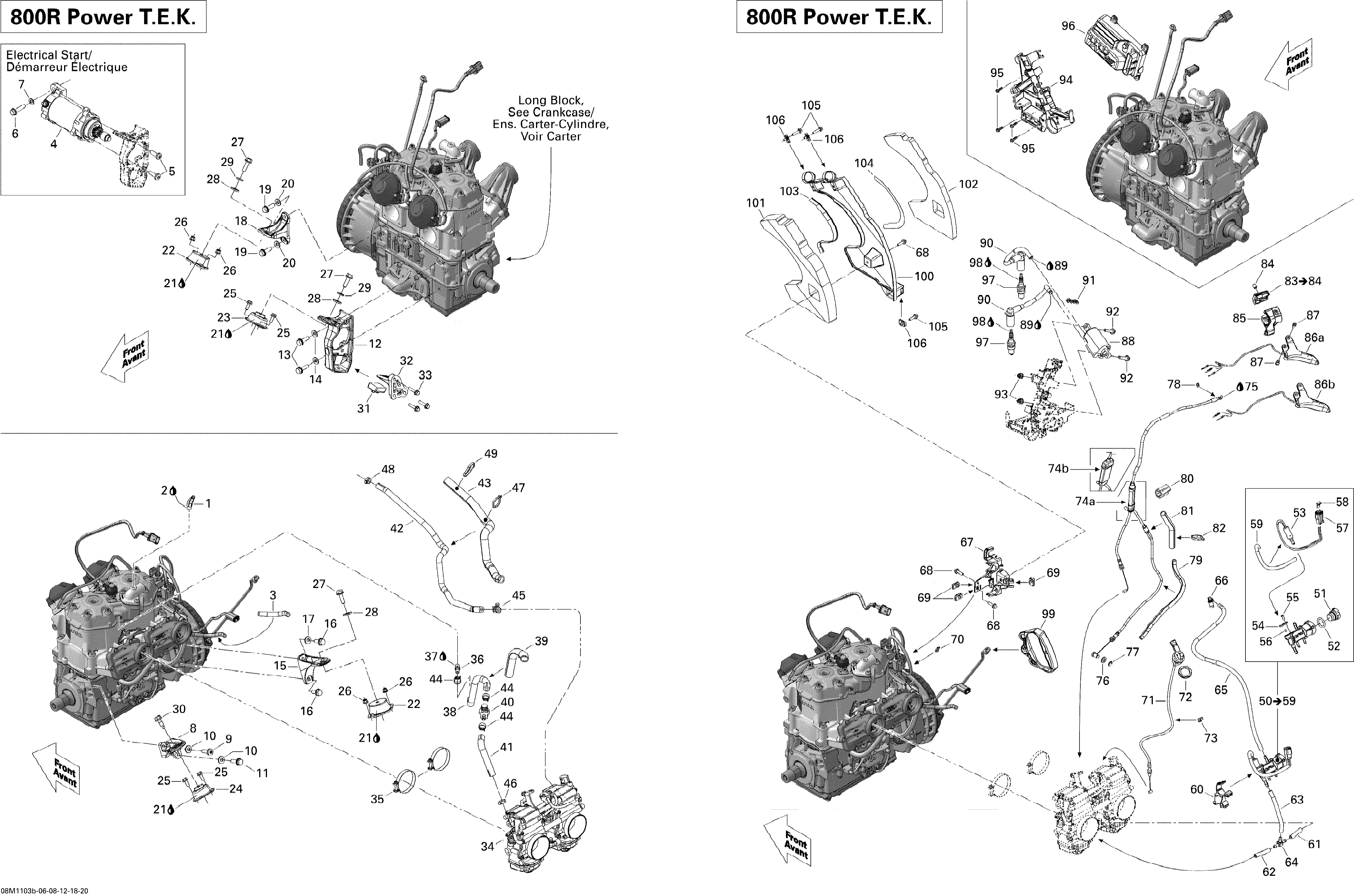

01- Engine для BRP Ski-Doo Renegade ADRENALINE 800R PTEK - 2011

№

Артикул

Название
1

293700045 Elbow Fitting 90°

Elbow Fitting 90°
2

293800018 Loctite 592, Pipe Sealant, 50 ml

Loctite 592, Pipe Sealant, 50 ml
3

415079900 Tubing 10 mm

Tubing 10 mm
4

515176858 Starter Ass'y. Electric Start

Starter Ass'y. Electric Start
5

250000248 Torx Screw M8 X 25, Scotch Grip. Electric Start

Torx Screw M8 X 25, Scotch Grip. Electric Start
6

207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electric Start

Hex Flanged Screw M8 X 35, Scotch Grip. Electric Start
7

250200008 Flat Washer 8 mm. Electric Start

Flat Washer 8 mm. Electric Start
8

512060478 Rear Support, PTO

Rear Support, PTO
9

250000248 Torx Screw M8 X 25, Scotch Grip

Torx Screw M8 X 25, Scotch Grip
10

234281474 Conical Spring Washer M8

Conical Spring Washer M8
11

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
12

512060561 Front Support, PTO

Front Support, PTO
13

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
14

234281474 Conical Spring Washer M8

Conical Spring Washer M8
15

512060559 Rear Support, MAG

Rear Support, MAG
16

207582044 Hex. Flanged Screw M8 X 20, Scotch Grip

Hex. Flanged Screw M8 X 20, Scotch Grip
17

234281474 Conical Spring Washer M8

Conical Spring Washer M8
18

512060469 Front Support, MAG

Front Support, MAG
19

207582586 Hex. Flanged Screw M8 X 25, Scotch Grip

Hex. Flanged Screw M8 X 25, Scotch Grip
20

234281474 Conical Spring Washer M8

Conical Spring Washer M8
21

293550033 Suspension Grease, 10 X 400 G

Suspension Grease, 10 X 400 G
22

512060457 Rubber Mount

Rubber Mount
23

512060387 Rubber Mount

Rubber Mount
24

512060448 Rubber Mount

Rubber Mount
25

207561644 Hex. Flanged Screw M6 X 16, Scotch Grip

Hex. Flanged Screw M6 X 16, Scotch Grip
26

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
27

207583086 Flanged Hex. Screw M8 X 30, Scotch Grip

Flanged Hex. Screw M8 X 30, Scotch Grip
28

503183200 Washer, Yellow

Washer, Yellow
29

234281474 Conical Spring Washer M8

Conical Spring Washer M8
30

250000361 Hex. Screw M8

Hex. Screw M8
31

512060577 Stopper

Stopper
32

512060576 Stopper Support

Stopper Support
33

207562544 Hex. Flanged Screw M6 X 25, Scotch Grip

Hex. Flanged Screw M6 X 25, Scotch Grip
34

403138805 Carburator Kit, TM40-B397

Carburator Kit, TM40-B397
35

512059835 Gemi Clamp

Gemi Clamp
36

512060196 Male Connector 1/8''-27 NPT

Male Connector 1/8''-27 NPT
37

293800018 Loctite 592, Pipe Sealant, 50 ml

Loctite 592, Pipe Sealant, 50 ml
38

512060357 Hose Formed Engine Outlet

Hose Formed Engine Outlet
39

415080000 Tubing 16 mm

Tubing 16 mm
40

512059324 Valve 5/16''

Valve 5/16''
41

512060353 Hose Formed

Hose Formed
42

512060347 Hose Formed

Hose Formed
43

415080000 Tubing 16 mm

Tubing 16 mm
44

414655700 Spring Clamp

Spring Clamp
45

293650214 Norma Spring Clamp

Norma Spring Clamp
46

293650125 Oetiker Clamp

Oetiker Clamp
47

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
48

293650046 Oetiker Clamp

Oetiker Clamp
49

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
50

512060002 Pressure Manifold Ass'y. Includes 50 to 59

Pressure Manifold Ass'y. Includes 50 to 59
51

270600009 Cap

Cap
52

293300042 O-Ring

O-Ring
53

515175701 Solenoid Valve

Solenoid Valve
54

415061600 Solenoid Lock

Solenoid Lock
55

241140060 Screw K40 X 10

Screw K40 X 10
56

404161825 Starter Jet

Starter Jet
57

515175670 Female Terminal Housing, 2 Circuits

Female Terminal Housing, 2 Circuits
58

515175675 Female Lock, 2 Circuits

Female Lock, 2 Circuits
59

515175332 Vinyl Tubing, Low Temperature

Vinyl Tubing, Low Temperature
60

512060229 DPM Support

DPM Support
61

415080200 Hose, Polyurethane

Hose, Polyurethane
62

415080200 Hose, Polyurethane

Hose, Polyurethane
63

415080200 Hose, Polyurethane

Hose, Polyurethane
64

414729300 T-Fitting

T-Fitting
65

415080200 Hose, Polyurethane

Hose, Polyurethane
66

414580700 Male Connector

Male Connector
67

512060298 Solenoid Support

Solenoid Support
68

207652044 Flanged Hex. Screw M5 X 20

Flanged Hex. Screw M5 X 20
69

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
70

293750001 Tie-Rap 94 mm

Tie-Rap 94 mm
71

512060153 Choke Cable

Choke Cable
72

512060016 Plastic Nut

Plastic Nut
73

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
74A

512060546 Throttle Cable

Throttle Cable
75

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
76

234081100 Flat Washer 8 mm

Flat Washer 8 mm
77

414753500 Circlip

Circlip
78

414274500 Circlip

Circlip
79

515175442 Tubing 6 mm

Tubing 6 mm
80

512060313 Protector

Protector
81

415079900 Tubing 10 mm

Tubing 10 mm
82

414115200 Tie-Rap 180 mm

Tie-Rap 180 mm
83

512060198 Upper Housing Ass'y. Includes 83 to 84

Upper Housing Ass'y. Includes 83 to 84
84

414440800 Set Screw M8 X 10

Set Screw M8 X 10
85

512060430 Lower Housing

Lower Housing
86A

512060616 Throttle Handle

Throttle Handle
87

732601143 Flanged Screw

Flanged Screw
88

512059968 Ignition Coil

Ignition Coil
89

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
90

512060291 Cable

Cable
91

410914600 Plastic Clip, Spark Plug Wire

Plastic Clip, Spark Plug Wire
92

207663044 Hex. Flanged Screw M6 X 30

Hex. Flanged Screw M6 X 30
93

233261414 Hex. Flanged Elastic Nut M6

Hex. Flanged Elastic Nut M6
94

512060278 Coil Support

Coil Support
95

241151640 Hex. Flanged Screw K50 X 16

Hex. Flanged Screw K50 X 16
96

512060682 Calibrated Module, 800R PowerT.E.K.

Calibrated Module, 800R PowerT.E.K.
97

415128524 Spark Plug, NGK BR9ECS, 0.8 mm

Spark Plug, NGK BR9ECS, 0.8 mm
98

293550004 Dielectric Grease, 150 g

Dielectric Grease, 150 g
99

512060136 Starter Grip

Starter Grip
100

512060338 Noise Shield

Noise Shield
101

512060341 Inner Noise Foam

Inner Noise Foam
102

512060342 Outer Noise Foam

Outer Noise Foam
103

512060574 Heat Shield

Heat Shield
104

512060575 Heat Shield

Heat Shield
105

207652044 Flanged Hex. Screw M5 X 20

Flanged Hex. Screw M5 X 20
106

250000079 Panel Nut M5 X 0.8

Panel Nut M5 X 0.8
