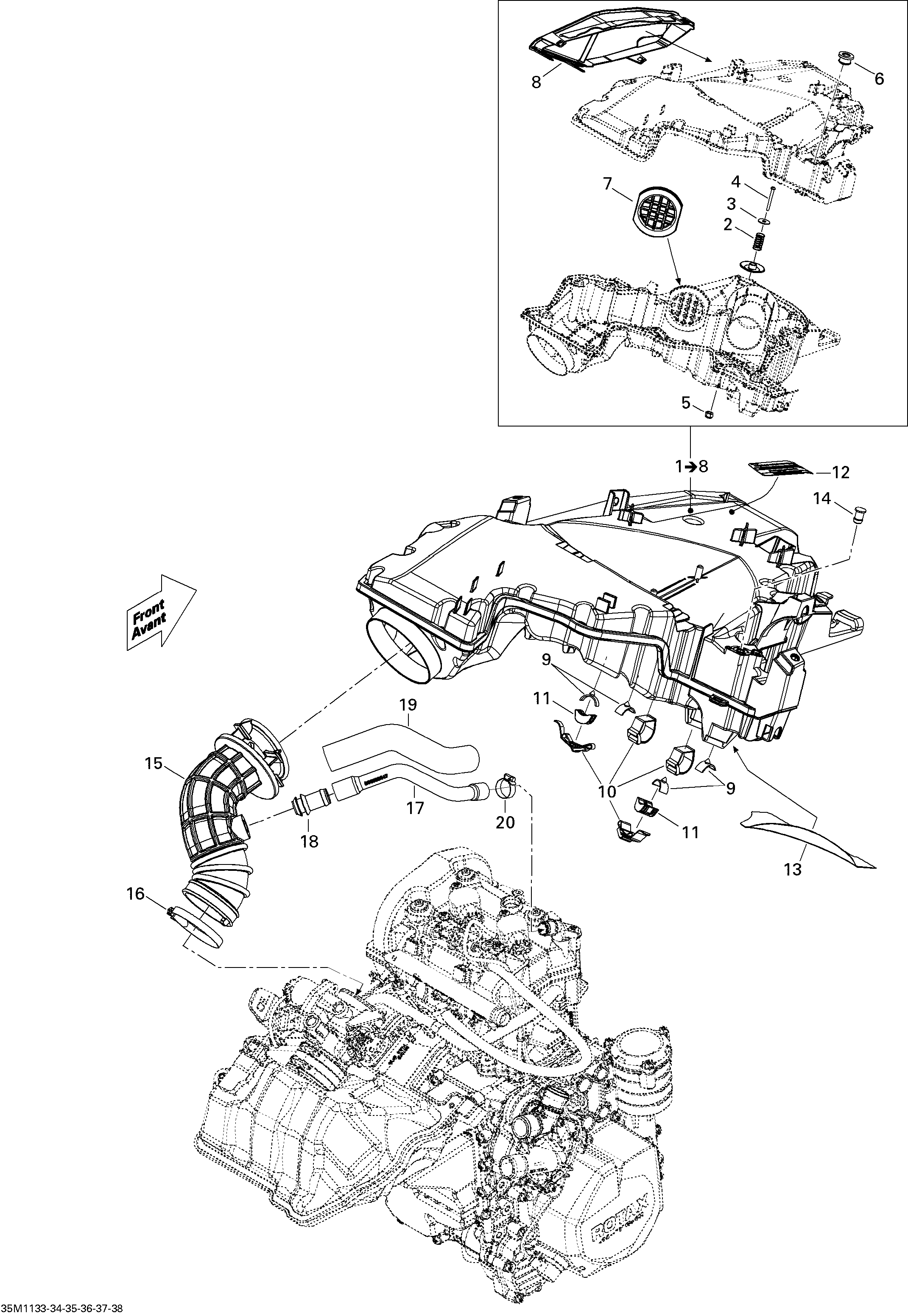

02- Air Intake System для BRP Ski-Doo MXZ Sport 600ACE - 2011
-
№АртикулНазвание
-
1508000625 Secondary Chamber Ass'y. Includes 1 to 8Secondary Chamber Ass'y. Includes 1 to 8
-
2508000576 SpringSpring
-
3224060201 Flat WasherFlat Washer
-
4205444086 Socket Head Screw M4 X 40Socket Head Screw M4 X 40
-
5232541414 Elastic Stop Nut M4Elastic Stop Nut M4
-
6508000574 GrommetGrommet
-
7508000590 CapCap
-
8508000568 Air FilterAir Filter
-
9508000537 StopperStopper
-
10508000532 Strip VelcroStrip Velcro
-
11508000572 BumperBumper
-
12516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
13508000622 Reflective SheetReflective Sheet
-
14572092900 CapCap
-
15508000717 Air Intake HoseAir Intake Hose
-
16293650212 GEMI ClampGEMI Clamp
-
17508000647 Formed Vent HoseFormed Vent Hose
-
18273000234 BreatherBreather
-
19508000648 Tube IsolatorTube Isolator
-
20293650172 Tridon Gear ClampTridon Gear Clamp
