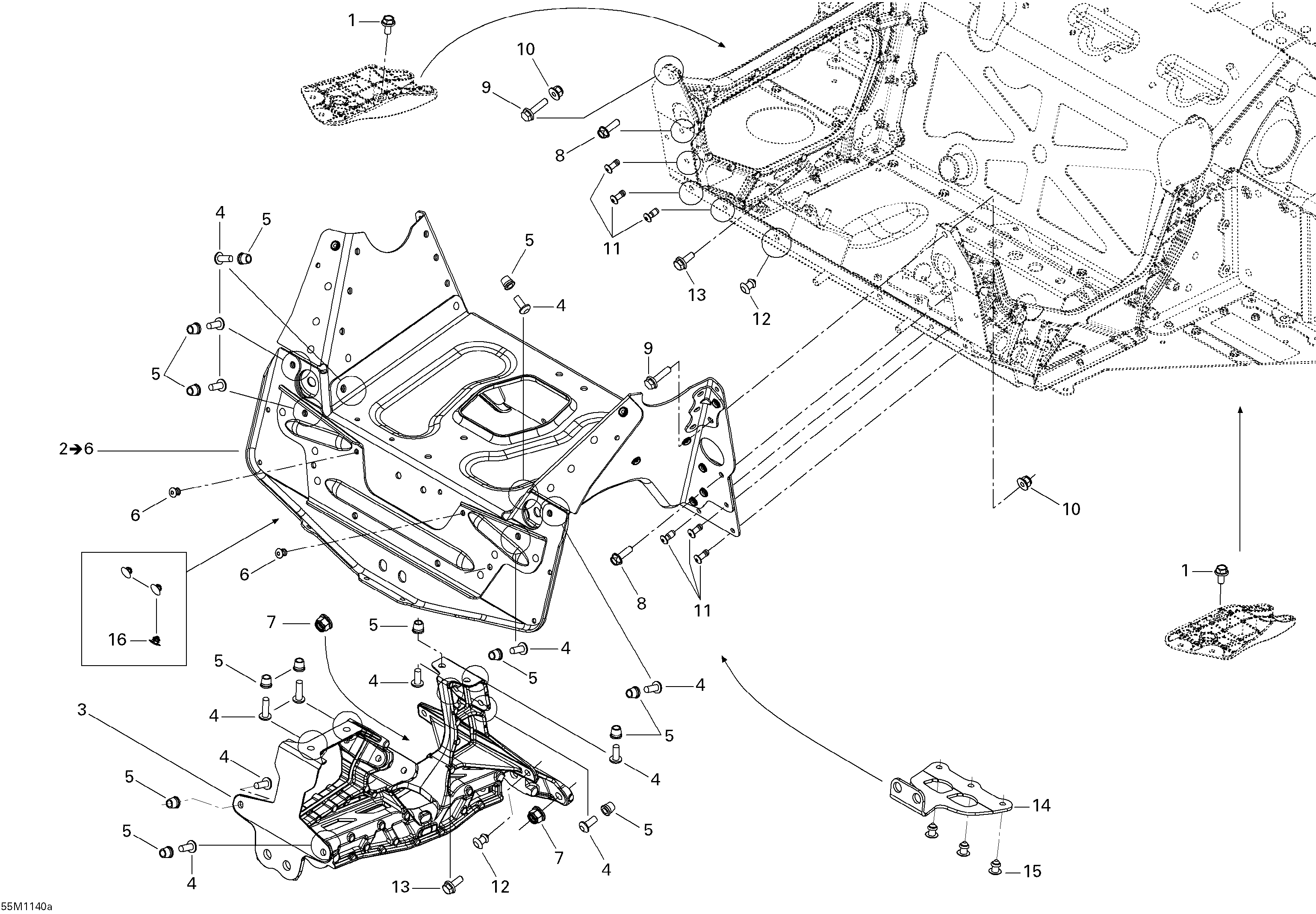

09- Frame and Components 1 для BRP Ski-Doo MX Z X 600RS - 2011
-
№АртикулНазвание
-
1207561244 Hex. Flanged Screw M6 X 12, Scotch GripHex. Flanged Screw M6 X 12, Scotch Grip
-
2518326752 S Module. Includes 2 to 6S Module. Includes 2 to 6
-
3518325925 Front Suspension SupportFront Suspension Support
-
4207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
5233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
6293150144 Stavex RivetStavex Rivet
-
7233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
8210261680 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
9207662544 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11293150191 Monobolt Rivet, 4.8 mmMonobolt Rivet, 4.8 mm
-
12293150182 Monobolt Rivet 6.4Monobolt Rivet 6.4
-
13207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
14518326466 Module ReinforcementModule Reinforcement
-
15293150147 Hemlock RivetHemlock Rivet
-
16293730042 DartDart
