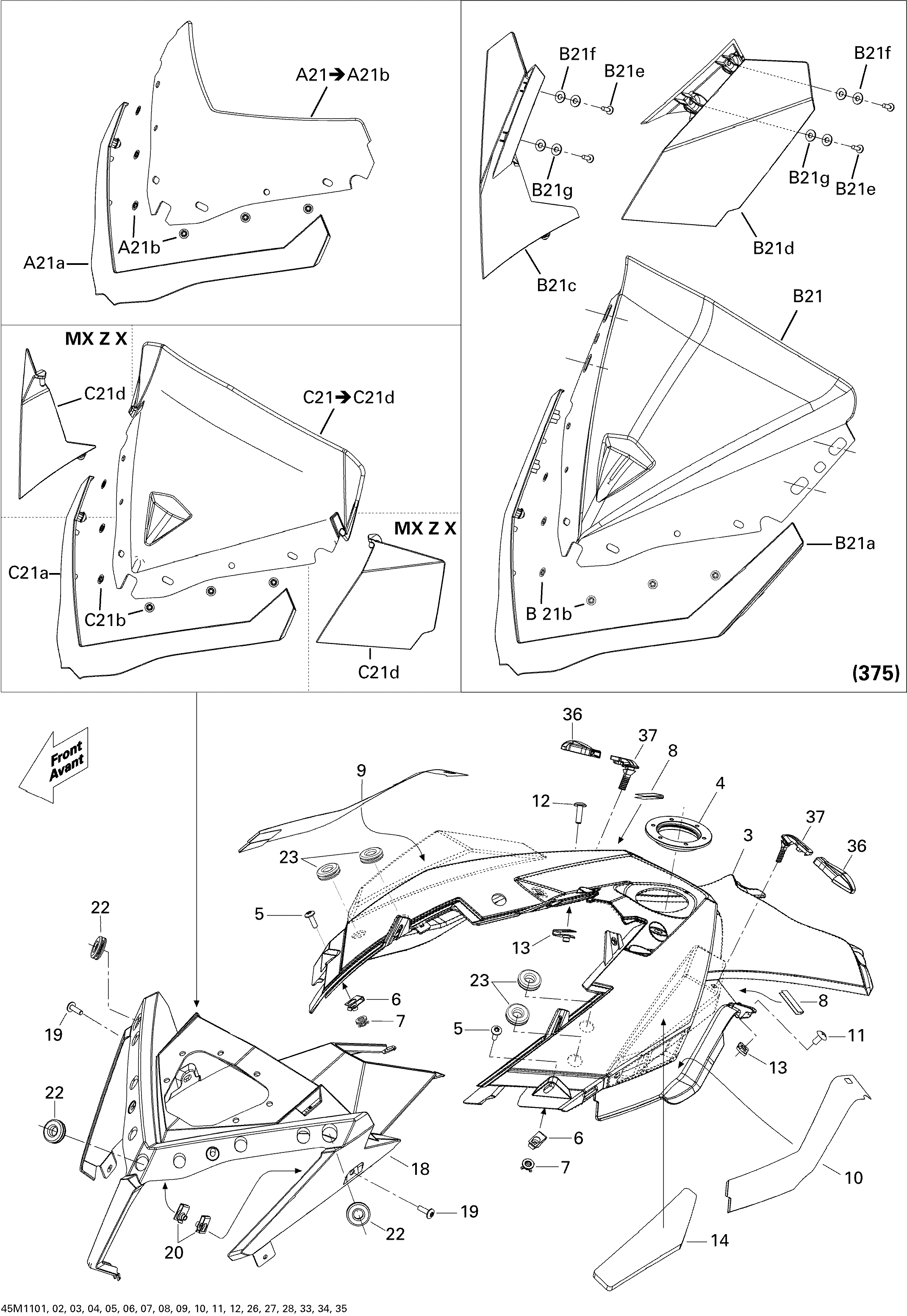

09- Windshield And Console 600HO ETEC для BRP Ski-Doo MX Z X 600HO ETEC - 2011

  • №
    Артикул
    Название
  • 3
    517303924 Deep Black Console. 600HOE
    Deep Black Console. 600HOE
  • 4
    517304518 Console Nut
    Console Nut
  • 5
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 6
    250100113 Panel Nut, M6 X 1.0. 600HOE
    Panel Nut, M6 X 1.0. 600HOE
  • 11
    250000129 Torx Screw M6 X 16
    Torx Screw M6 X 16
  • 12
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 13
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • 18
    517304575 Gauge Support
    Gauge Support
  • 19
    250000128 Torx Truss Screw M6 X 20
    Torx Truss Screw M6 X 20
  • 20
    250100113 Panel Nut, M6 X 1.0
    Panel Nut, M6 X 1.0
  • C21
    517304390 Windshield Ass'y. X
    Windshield Ass'y. X
  • C21a
    517303757 Windshield Support. X
    Windshield Support. X
  • C21b
    732610072 Push Nut. X
    Push Nut. X
  • C21d
    860200498 Air Deflector Kit (LH and RH). X
    Air Deflector Kit (LH and RH). X
  • 23
    517303756 Grommet
    Grommet
  • 36
    860200239 Black Latch Kit. Black/Black
    Black Latch Kit. Black/Black
  • 36
    517304435 End Piece Latch, Bright White. Black/White
    End Piece Latch, Bright White. Black/White
  • 37
    517303981 Panel Latch
    Panel Latch
