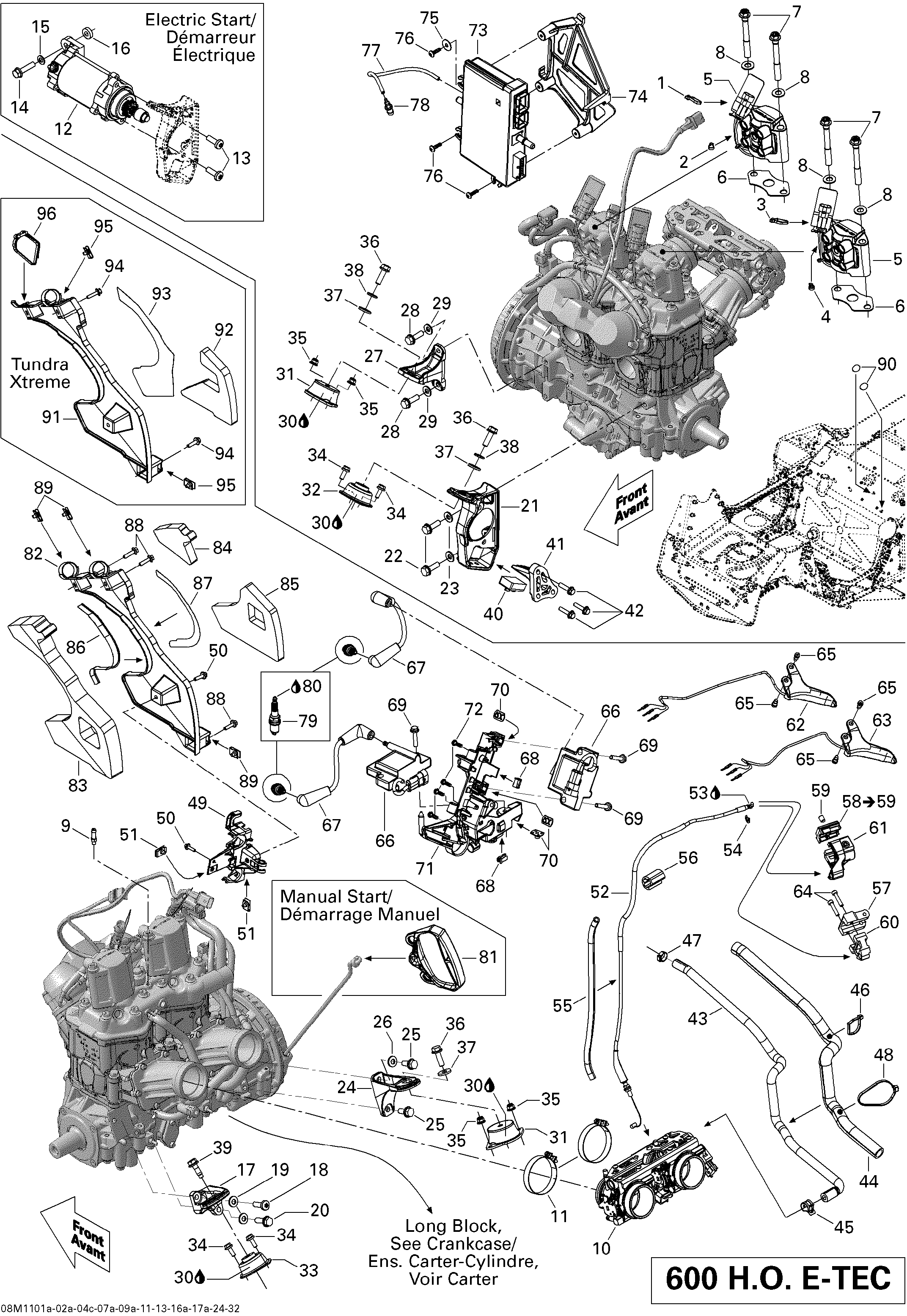

01- Engine 600HOETEC для BRP Ski-Doo MX Z TNT 600HO ETEC - 2011
-
№АртикулНазвание
-
1293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
2293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
3293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
4293750002 Tie-Rap 130 mmTie-Rap 130 mm
-
5512060649 Fuel InjectorFuel Injector
-
6420430930 GasketGasket
-
7420441187 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
8234001410 Flat Washer 10 mmFlat Washer 10 mm
-
9420924720 Hose NippleHose Nipple
-
10420889197 Throttle BodyThrottle Body
-
11293650158 Gemi ClampGemi Clamp
-
12515176858 Starter. Electric StartStarter. Electric Start
-
13250000248 Torx Screw M8 X 25, Scotch Grip. Electric StartTorx Screw M8 X 25, Scotch Grip. Electric Start
-
14207583544 Hex Flanged Screw M8 X 35, Scotch Grip. Electric StartHex Flanged Screw M8 X 35, Scotch Grip. Electric Start
-
15250200008 Flat Washer 8 mm. Electric StartFlat Washer 8 mm. Electric Start
-
16515176500 Washer. Electric StartWasher. Electric Start
-
17512060478 Rear Support, PTORear Support, PTO
-
18250000248 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
19234281474 Conical Spring Washer M8Conical Spring Washer M8
-
20207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
21512060560 Front Support, PTOFront Support, PTO
-
22207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
23234281474 Conical Spring Washer M8Conical Spring Washer M8
-
24512060559 Rear Support, MAGRear Support, MAG
-
25207582044 Hex. Flanged Screw M8 X 20, Scotch GripHex. Flanged Screw M8 X 20, Scotch Grip
-
26234281474 Conical Spring Washer M8Conical Spring Washer M8
-
27512060469 Front Support, MAGFront Support, MAG
-
28207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
29234281474 Conical Spring Washer M8Conical Spring Washer M8
-
30293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
31512060457 Rubber MountRubber Mount
-
32512060387 Rubber MountRubber Mount
-
33512060448 Rubber MountRubber Mount
-
34207561644 Hex. Flanged Screw M6 X 16, Scotch GripHex. Flanged Screw M6 X 16, Scotch Grip
-
35233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
36207583086 Flanged Hex. Screw M8 X 30, Scotch GripFlanged Hex. Screw M8 X 30, Scotch Grip
-
37503183200 Washer, YellowWasher, Yellow
-
38234281474 Conical Spring Washer M8Conical Spring Washer M8
-
39250000361 Hex. Screw M8Hex. Screw M8
-
40512060577 StopperStopper
-
41512060576 Stopper SupportStopper Support
-
42207562544 Hex. Flanged Screw M6 X 25, Scotch GripHex. Flanged Screw M6 X 25, Scotch Grip
-
43512060349 Formed Hose, OutputFormed Hose, Output
-
44513033412 TubingTubing
-
45293650214 Norma Spring ClampNorma Spring Clamp
-
46414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
47293650046 Oetiker ClampOetiker Clamp
-
48414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
49512060298 Solenoid SupportSolenoid Support
-
50207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
51250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
52512060611 Throttle CableThrottle Cable
-
53293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
54414274500 CirclipCirclip
-
55409901700 Tubing 9 mmTubing 9 mm
-
56512060313 ProtectorProtector
-
58512060198 Upper Housing Ass'y. Includes 58 to 58Upper Housing Ass'y. Includes 58 to 58
-
59414440800 Set Screw M8 X 10Set Screw M8 X 10
-
61512060430 Lower HousingLower Housing
-
62512060616 Throttle HandleThrottle Handle
-
65732601143 Flanged ScrewFlanged Screw
-
66512060644 Ignition CoilIgnition Coil
-
67512060094 Ignition Cable, 177 mmIgnition Cable, 177 mm
-
68710000992 ClipClip
-
69250000253 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
70293100003 Nut M6Nut M6
-
71512060287 Support CoilsSupport Coils
-
72241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
73512060612 Calibrated ModuleCalibrated Module
-
74512060297 Calibrated Module SupportCalibrated Module Support
-
75250200040 Flat WasherFlat Washer
-
76250000297 Truss Head Torx Screw K50 X 20Truss Head Torx Screw K50 X 20
-
77415080100 LineLine
-
78414814100 Male ConnectorMale Connector
-
79415129432 Spark PlugSpark Plug
-
80293550004 Dielectric Grease, 150 gDielectric Grease, 150 g
-
81512060136 Starter Grip. Manual StartStarter Grip. Manual Start
-
82512060339 Noise ShieldNoise Shield
-
83512060343 Interior Noise FoamInterior Noise Foam
-
84512060344 Upper Exterior Noise FoamUpper Exterior Noise Foam
-
85512060362 Lower Exterior Noise FoamLower Exterior Noise Foam
-
86512060574 Heat ShieldHeat Shield
-
87512060575 Heat ShieldHeat Shield
-
88207652044 Flanged Hex. Screw M5 X 20Flanged Hex. Screw M5 X 20
-
89250000079 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
90518325560 Adhesive PatchAdhesive Patch
