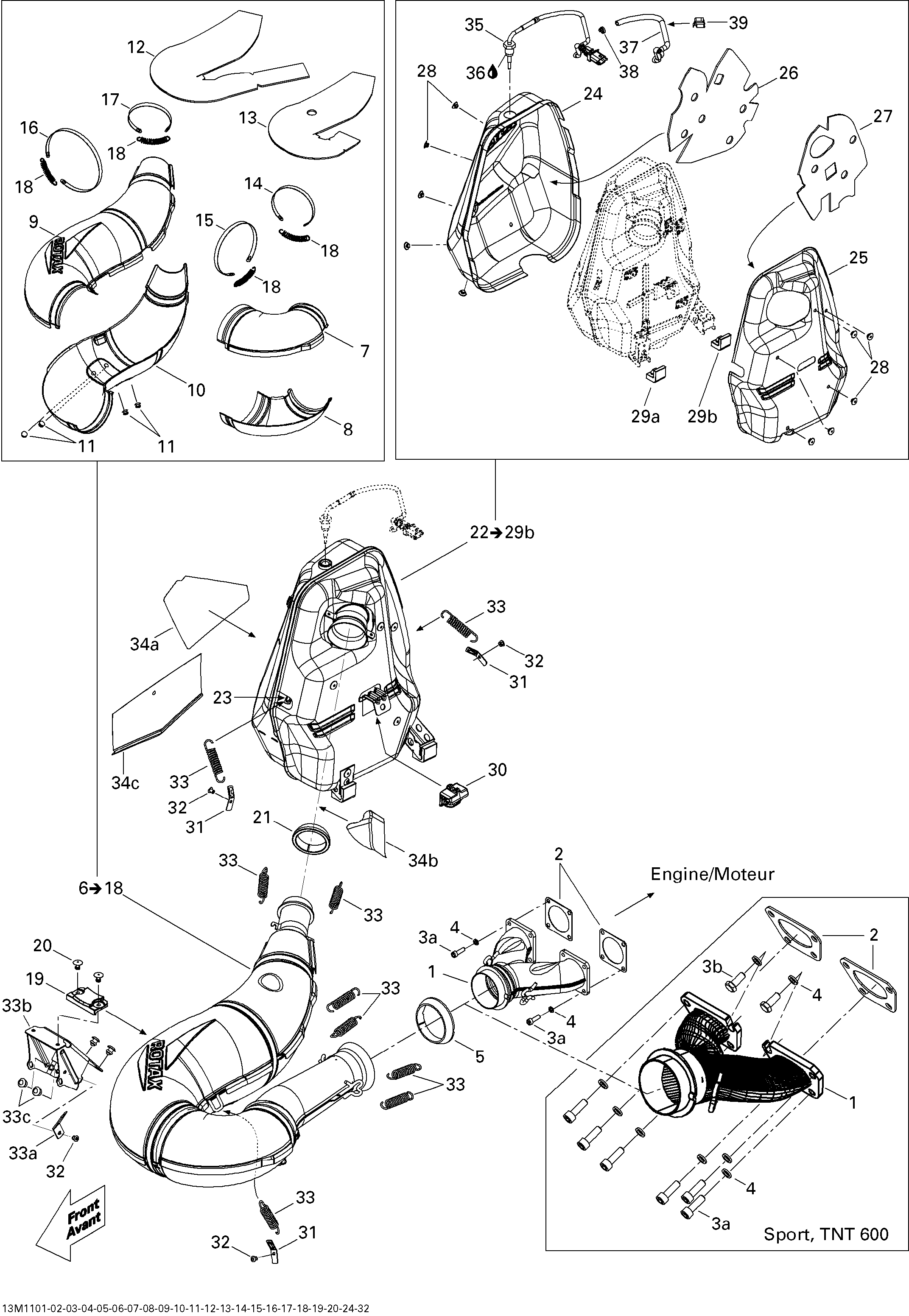

01- Exhaust System 600 для BRP Ski-Doo MX Z TNT 600 - 2011

  • №
    Артикул
    Название
  • 1
    420673131 Exhaust Manifold. 600
    Exhaust Manifold. 600
  • 2
    420931610 Gasket. 600
    Gasket. 600
  • 3a
    205082544 Socket Head Screw M8 X 25. 600
    Socket Head Screw M8 X 25. 600
  • 3b
    207182044 Hex. Screw M8 X 20. 600
    Hex. Screw M8 X 20. 600
  • 4
    250200111 Washer. 600
    Washer. 600
  • 5
    514053487 Exhaust Gasket
    Exhaust Gasket
  • 6
    514054594 Tune Pipe Ass'y. Includes 6 to 18, 600
    Tune Pipe Ass'y. Includes 6 to 18, 600
  • 7
    514054485 Front Upper Enveloppe. 600
    Front Upper Enveloppe. 600
  • 8
    514054486 Front Lower Enveloppe. 600
    Front Lower Enveloppe. 600
  • 9
    514054590 Rear Upper Half Enveloppe
    Rear Upper Half Enveloppe
  • 10
    514054279 Rear Lower Half Enveloppe
    Rear Lower Half Enveloppe
  • 11
    293150091 Henrob Rivet
    Henrob Rivet
  • 12
    514054487 Insulating Wool. 600
    Insulating Wool. 600
  • 14
    514054408 Retaining Strap
    Retaining Strap
  • 15
    514054409 Retaining Strap
    Retaining Strap
  • 16
    514054410 Retaining Strap
    Retaining Strap
  • 17
    514053499 Retaining Strap
    Retaining Strap
  • 18
    514053643 Spring
    Spring
  • 19
    514054275 Bumper
    Bumper
  • 20
    293150103 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 21
    514053812 Exhaust Gasket. 600
    Exhaust Gasket. 600
  • 22
    514054447 Muffler Ass'y. Includes 22 to 29b, 600
    Muffler Ass'y. Includes 22 to 29b, 600
  • 23
    514054155 Spring Bracket
    Spring Bracket
  • 24
    514054433 RH Deflector
    RH Deflector
  • 25
    514054202 LH Deflector
    LH Deflector
  • 26
    514054711 RH Insulating Wool
    RH Insulating Wool
  • 27
    514054299 LH Insulating Wool
    LH Insulating Wool
  • 28
    390910000 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 29a
    514054274 Lower Stopper
    Lower Stopper
  • 29b
    514054496 Lower Stopper
    Lower Stopper
  • 30
    514054606 Upper Stopper
    Upper Stopper
  • 31
    514054391 Spring Bracket
    Spring Bracket
  • 32
    390402200 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • 33
    514054226 Spring
    Spring
  • 34a
    514054488 Reflective Sheet
    Reflective Sheet
  • 34b
    514054817 Heat Shield
    Heat Shield
  • 36
    293800070 Loctite 767, Antiseize Lubricant, 8 oz
    Loctite 767, Antiseize Lubricant, 8 oz
