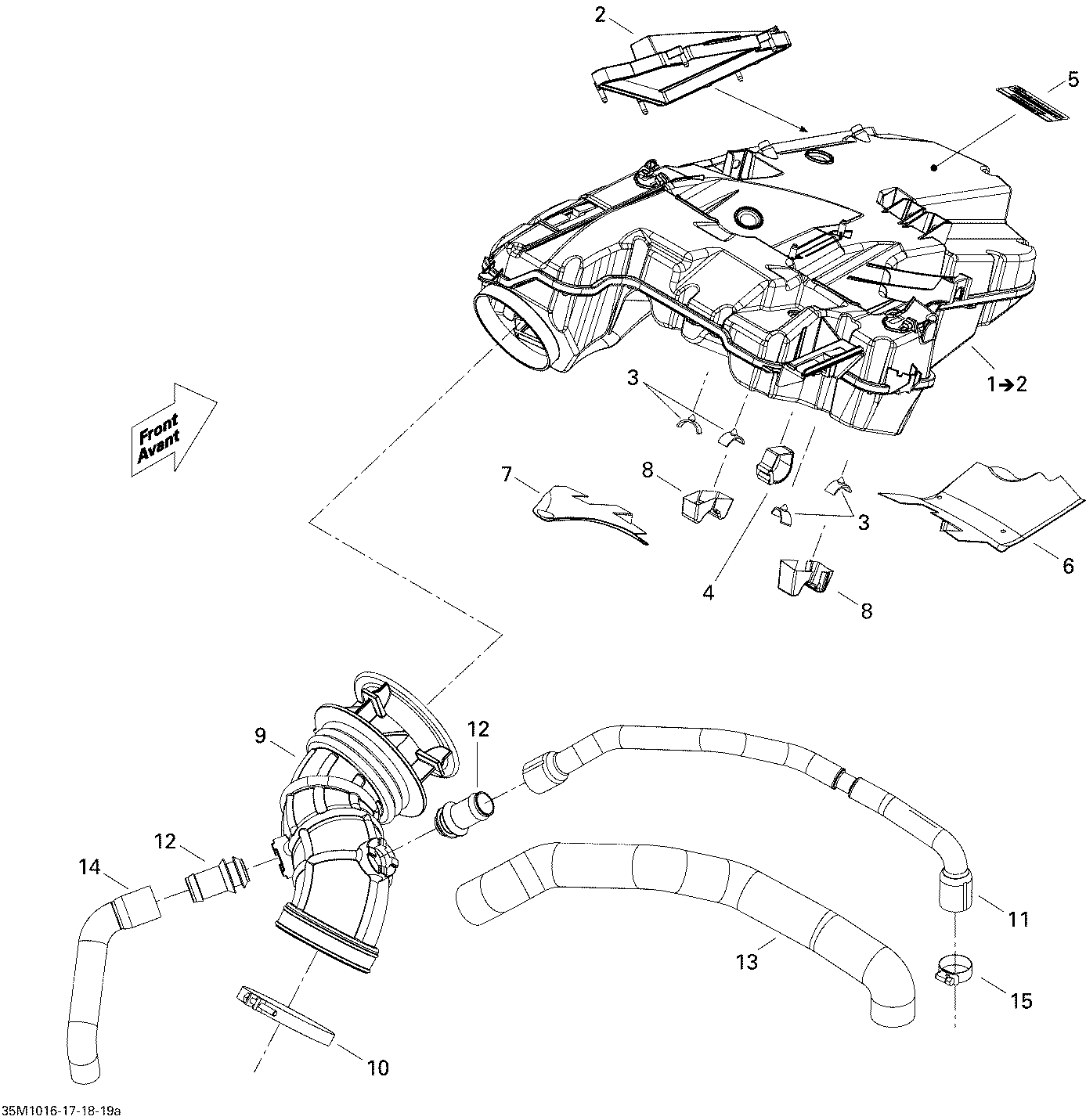

02- Air Intake System для BRP Ski-Doo GSX LE & SE 1200 XR - 2011
-
№АртикулНазвание
-
1508000694 Secondary Chamber Ass'y. Includes 1 to 2Secondary Chamber Ass'y. Includes 1 to 2
-
2508000546 Air FilterAir Filter
-
3508000537 StopperStopper
-
4508000532 Strip VelcroStrip Velcro
-
5516004566 Caution Decal, Hot PartsCaution Decal, Hot Parts
-
6508000675 Heat ShieldHeat Shield
-
7508000676 Heat ShieldHeat Shield
-
8508000677 Heat ShieldHeat Shield
-
9508000549 Intake HoseIntake Hose
-
10508000346 Gemi ClampGemi Clamp
-
11508000615 Vent HoseVent Hose
-
12273000234 BreatherBreather
-
13508000630 Insulating TubeInsulating Tube
-
14508000616 Formed HoseFormed Hose
-
15293650172 Tridon Gear ClampTridon Gear Clamp
