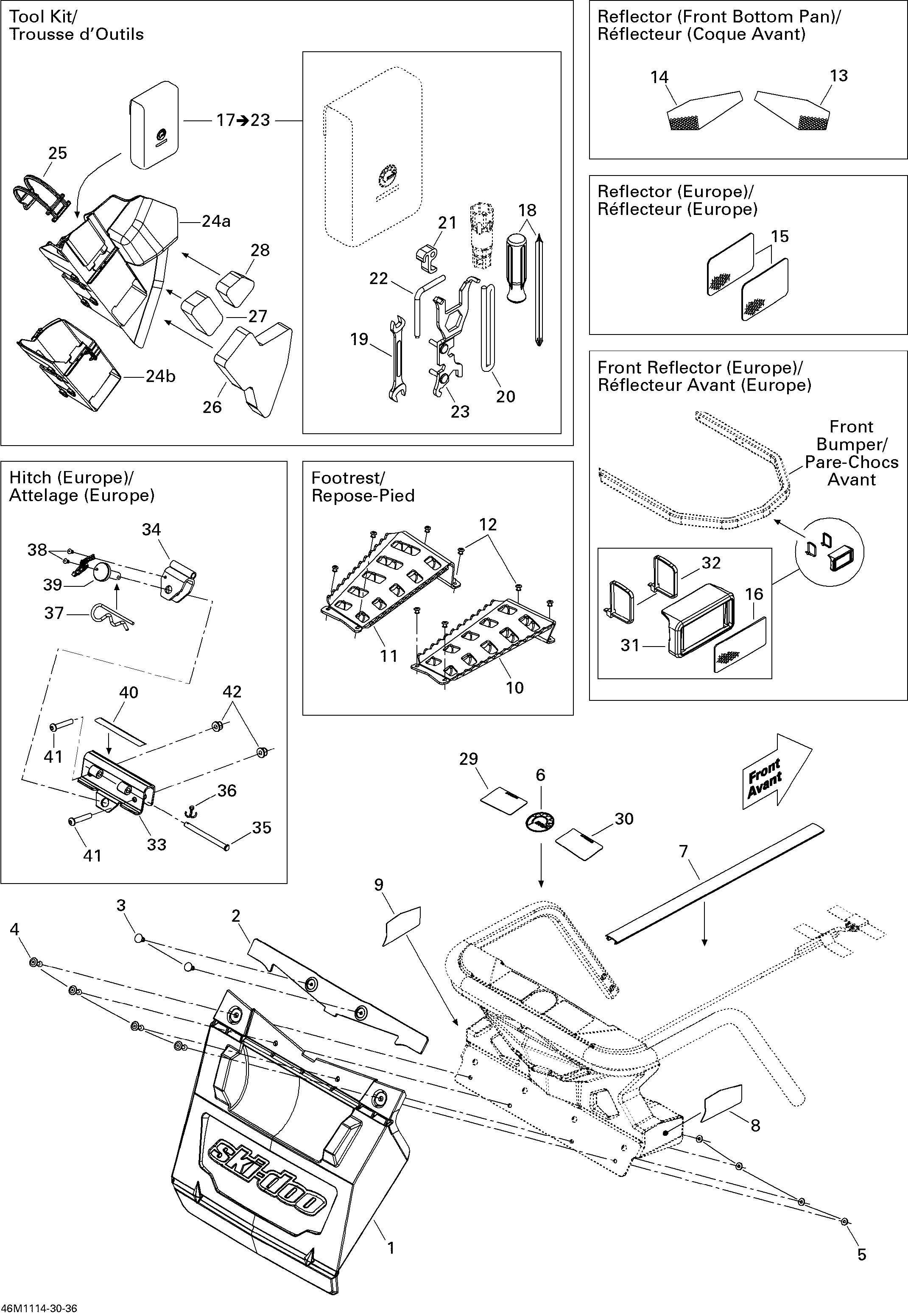

09- Utilities для BRP Ski-Doo Grand Touring Sport 600ACE - 2011
-
№АртикулНазвание
-
1520000659 Snow GuardSnow Guard
-
2520000953 Esthetic PlateEsthetic Plate
-
3293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
4293150108 Pop Rivet 3/16''Pop Rivet 3/16''
-
5517124300 WasherWasher
-
6219903305 BRP Logo, 48 mmBRP Logo, 48 mm
-
8520000881 RH Reflector. North AmericaRH Reflector. North America
-
8520000883 RH Reflector. EuropeRH Reflector. Europe
-
9520000880 LH Reflector. North AmericaLH Reflector. North America
-
9520000882 LH Reflector. EuropeLH Reflector. Europe
-
10520000887 RH FootrestRH Footrest
-
11520000888 LH FootrestLH Footrest
-
12390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
13520000718 RH Front ReflectorRH Front Reflector
-
14520000719 LH Front ReflectorLH Front Reflector
-
15520000271 Reflector, Amber. EuropeReflector, Amber. Europe
-
16415037900 Reflector, White. EuropeReflector, White. Europe
-
17529000054 Tool Kit. Includes 17 to 23Tool Kit. Includes 17 to 23
-
18529000004 Screw DriverScrew Driver
-
19529000002 Fork Wrench 10/13 mmFork Wrench 10/13 mm
-
20412500200 Starter Rope, MeterStarter Rope, Meter
-
21529019400 Starter GripStarter Grip
-
22520001028 Spacing ToolSpacing Tool
-
23520000988 Wrench SuspensionWrench Suspension
-
24b520000894 Tool Kit RackTool Kit Rack
-
25520000528 LatchLatch
-
29516004583 LH Warning Decal, SecurityLH Warning Decal, Security
-
30516004605 RH Warning Decal, SecurityRH Warning Decal, Security
-
31520000871 Reflector Support. EuropeReflector Support. Europe
-
32293750018 Tie Rap 371 mm. EuropeTie Rap 371 mm. Europe
-
33511000554 Support. EuropeSupport. Europe
-
34511000588 Hitch Plate. EuropeHitch Plate. Europe
-
35511000520 Clevis Pin. EuropeClevis Pin. Europe
-
36371800200 Cotter Pin. EuropeCotter Pin. Europe
-
37114045200 Hair Pin. EuropeHair Pin. Europe
-
38390404300 Pop Rivet 5/32''. EuropePop Rivet 5/32''. Europe
-
39511000555 Pin. EuropePin. Europe
-
40516004568 Warning Decal, Security. EuropeWarning Decal, Security. Europe
-
41205484546 Socket Head Screw M8 X 45. EuropeSocket Head Screw M8 X 45. Europe
-
42233281414 Hex. Flanged Elastic Nut M8. EuropeHex. Flanged Elastic Nut M8. Europe
