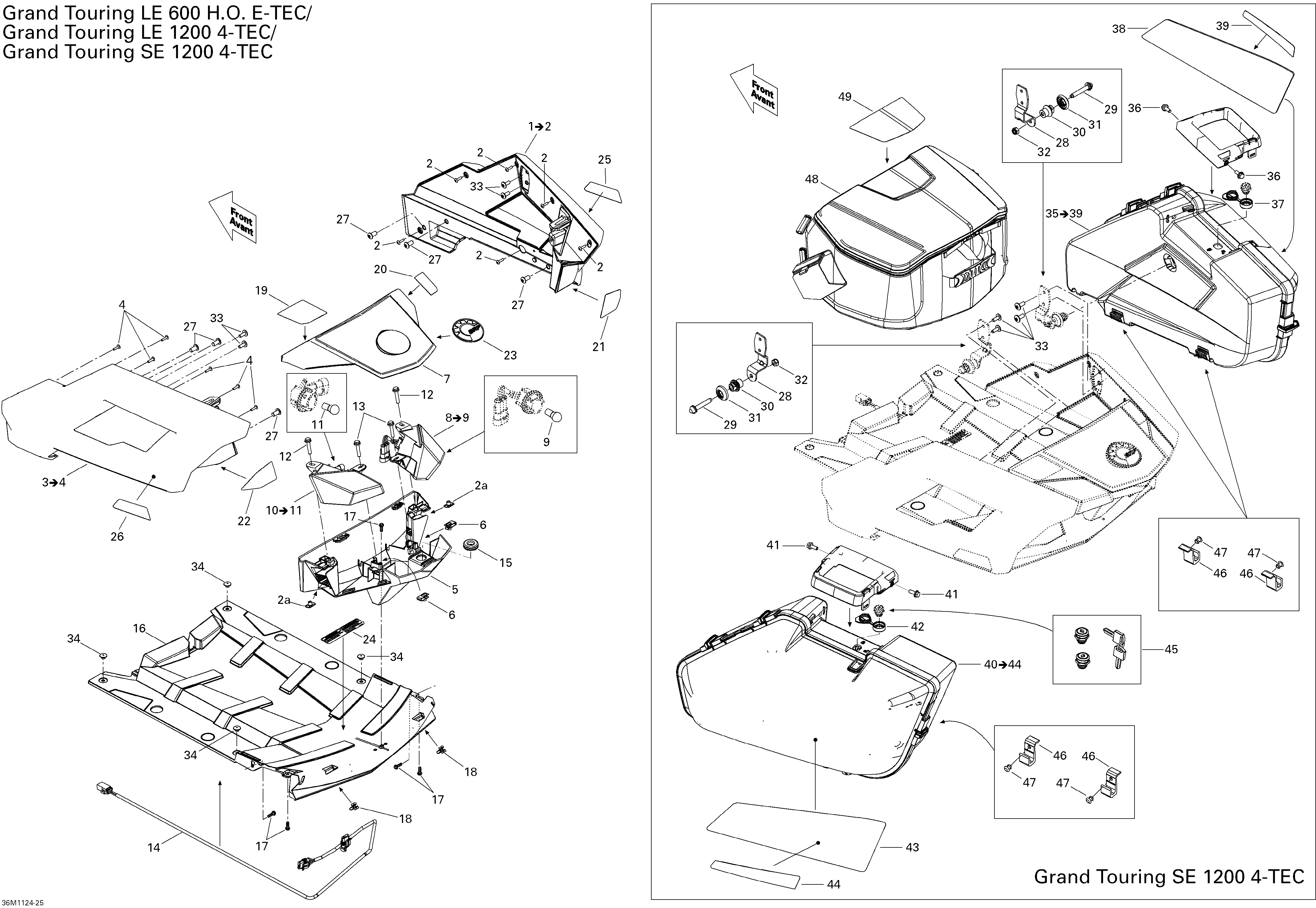

09- Luggage Rack для BRP Ski-Doo Grand Touring LE 600HO ETEC XR - 2011
-
№АртикулНазвание
-
1511000631 RH Arm Ass'y. Includes 1 to 2RH Arm Ass'y. Includes 1 to 2
-
2250000294 Torx ScrewTorx Screw
-
2a293100003 Nut M6Nut M6
-
3511000632 LH Arm Ass'y. Includes 3 to 4LH Arm Ass'y. Includes 3 to 4
-
4250000294 Torx ScrewTorx Screw
-
5511000530 RackRack
-
6250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
-
7511000545 CoverCover
-
8515176849 RH Tail Light. Includes 8 to 9RH Tail Light. Includes 8 to 9
-
9415129425 BulbBulb
-
10515176850 LH Tail Light. Includes 10 to 11LH Tail Light. Includes 10 to 11
-
11415129425 BulbBulb
-
12207563044 Hex. Flanged Screw M6 X 30, Scotch GripHex. Flanged Screw M6 X 30, Scotch Grip
-
13207662584 Hex. Flanged Screw M6 X 25Hex. Flanged Screw M6 X 25
-
14515176634 Harness RackHarness Rack
-
15517303756 GrommetGrommet
-
16511000531 Radiator CoverRadiator Cover
-
17241151640 Hex. Flanged Screw K50 X 16Hex. Flanged Screw K50 X 16
-
18517302785 ClipClip
-
19516004585 LH Warning Decal (English Version)LH Warning Decal (English Version)
-
20516004603 Safety Decal (English Version)Safety Decal (English Version)
-
21520000731 RH Rear ReflectorRH Rear Reflector
-
22520000732 LH Rear ReflectorLH Rear Reflector
-
23219902469 Logo BRP, 68 mmLogo BRP, 68 mm
-
24516004587 Warning Decal (English Version)Warning Decal (English Version)
-
25520000729 RH Rear ReflectorRH Rear Reflector
-
26520000730 LH Rear ReflectorLH Rear Reflector
-
27250000243 Torx Screw M8 X 16, Scotch GripTorx Screw M8 X 16, Scotch Grip
