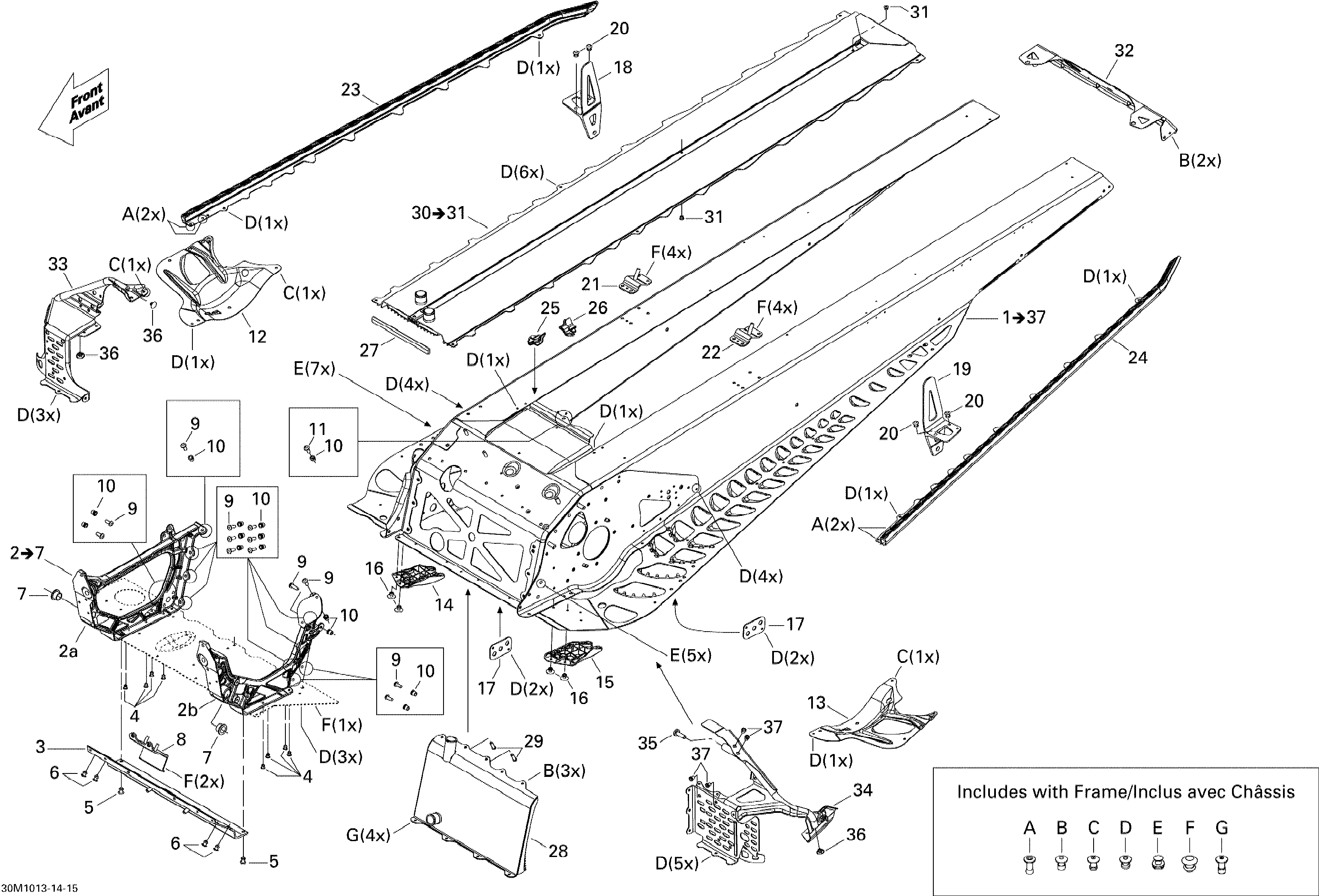

09- Frame для BRP Ski-Doo Summit X 800R PTEK - 2010

  • №
    Артикул
    Название
  • 1
    415129469 Frame 146''. Includes 1 to 37, Black-Black Model
    Frame 146''. Includes 1 to 37, Black-Black Model
  • 1
    415129468 Frame 146'', Deep Black. Includes 1 to 37, Orange-Black Model
    Frame 146'', Deep Black. Includes 1 to 37, Orange-Black Model
  • 1
    415129466 Frame 154''. Includes 1 to 37, Black-Black Model
    Frame 154''. Includes 1 to 37, Black-Black Model
  • 1
    415129467 Frame 154'', Deep Black. Includes 1 to 37, Orange-Black Model
    Frame 154'', Deep Black. Includes 1 to 37, Orange-Black Model
  • 1
    415129465 Frame 163''. Includes 1 to 37, Black-Black Model
    Frame 163''. Includes 1 to 37, Black-Black Model
  • 1
    415129464 Frame 163'', Deep Black. Includes 1 to 37, Orange-Black Model
    Frame 163'', Deep Black. Includes 1 to 37, Orange-Black Model
  • 2
    518326290 E Module. Includes 2 to 7
    E Module. Includes 2 to 7
  • 2a
    518325922 RH Member
    RH Member
  • 2b
    518325923 LH Member
    LH Member
  • 3
    518326198 Front Member
    Front Member
  • 4
    293150144 Stavex Rivet
    Stavex Rivet
  • 5
    293150120 Hemlock Rivet 6.5 mm
    Hemlock Rivet 6.5 mm
  • 6
    293150119 Hemlock Rivet, 6.5 mm
    Hemlock Rivet, 6.5 mm
  • 7
    505070954 Cushion
    Cushion
  • 8
    518325943 MAG Engine Support
    MAG Engine Support
  • 9
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 10
    233261414 Hex. Flanged Elastic Nut M6
    Hex. Flanged Elastic Nut M6
  • 11
    207662044 Hex. Flanged Screw M6 X 20
    Hex. Flanged Screw M6 X 20
  • 12
    518324874 RH Reinforcement
    RH Reinforcement
  • 13
    518324875 LH Reinforcement
    LH Reinforcement
  • 14
    518325782 RH Deflector
    RH Deflector
  • 15
    518325783 LH Deflector
    LH Deflector
  • 16
    293150104 Pop Rivet 3/16'', Black
    Pop Rivet 3/16'', Black
  • 17
    518201321 Reinforcement Plate
    Reinforcement Plate
  • 18
    518324976 RH Suspension Bracket
    RH Suspension Bracket
  • 19
    518324977 LH Suspension Bracket
    LH Suspension Bracket
  • 20
    293150147 Hemlock Rivet
    Hemlock Rivet
  • 21
    518325973 RH Rear Base
    RH Rear Base
  • 22
    518325974 LH Rear Base
    LH Rear Base
  • 23
    518325159 RH Roller
    RH Roller
  • 24
    518325160 LH Roller
    LH Roller
  • 25
    518325653 RH Seal
    RH Seal
  • 26
    518325654 LH Seal
    LH Seal
  • 27
    293200105 Neoprene Seal
    Neoprene Seal
  • 28
    518326486 Front Radiator
    Front Radiator
  • 29
    250300027 Clinch Stud M6 X 20
    Clinch Stud M6 X 20
  • 30
    518325668 Rear Radiator, 146''. Includes 30 to 31
    Rear Radiator, 146''. Includes 30 to 31
  • 30
    518325669 Rear Radiator, 154''. Includes 30 to 31
    Rear Radiator, 154''. Includes 30 to 31
  • 30
    518325670 Rear Radiator, 163''. Includes 30 to 31
    Rear Radiator, 163''. Includes 30 to 31
  • 31
    293150144 Stavex Rivet
    Stavex Rivet
  • 32
    518325421 Rear Cap
    Rear Cap
  • 33
    518326216 RH Stirup
    RH Stirup
  • 34
    518326239 LH Stirup
    LH Stirup
  • 35
    250000248 Torx Screw M8 X 25, Scotch Grip
    Torx Screw M8 X 25, Scotch Grip
  • 36
    293730042 Dart
    Dart
  • 37
    293450268 Insert
    Insert
  • A
    390402300 Pop Rivet 3/16''
    Pop Rivet 3/16''
  • B
    390909200 Avex Rivet
    Avex Rivet
  • C
    390909100 Avex Rivet
    Avex Rivet
  • D
    293150144 Stavex Rivet
    Stavex Rivet
  • E
    293150146 Henrob Rivet
    Henrob Rivet
  • F
    293150174 Hemlock Rivet, 6.4 mm
    Hemlock Rivet, 6.4 mm
  • G
    293150175 Monobolt Rivet
    Monobolt Rivet
