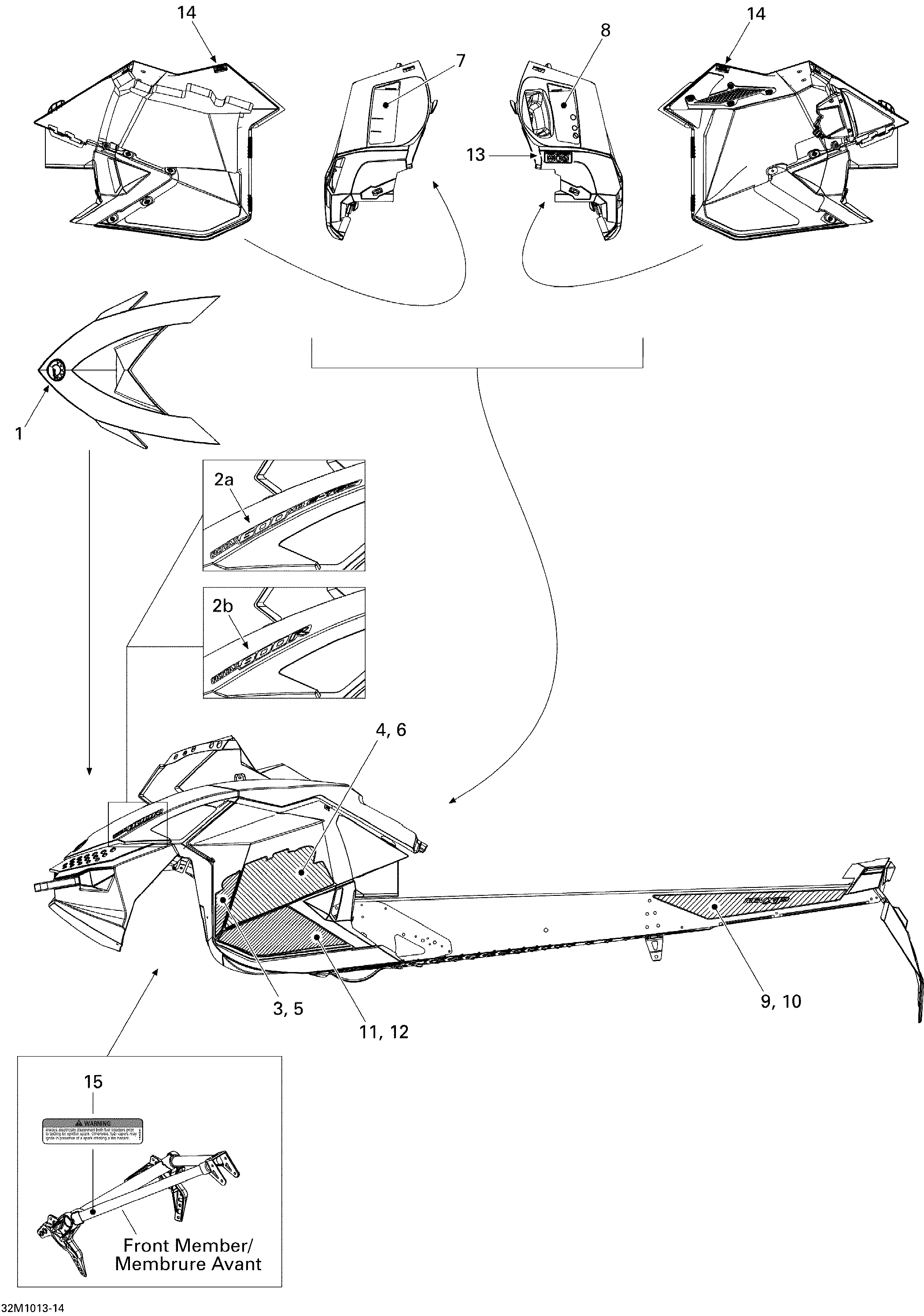

09- Decals 800R PTEK для BRP Ski-Doo Summit Everest 800R PTEK - 2010
-
№АртикулНазвание
-
1219902469 Logo, BRP 68 mmLogo, BRP 68 mm
-
2b516003440 Hood Decal, Rotax 800RHood Decal, Rotax 800R
-
3516004044 RH Front Side DecalRH Front Side Decal
-
4516003945 RH Side DecalRH Side Decal
-
5516004043 LH Front Side DecalLH Front Side Decal
-
6516003944 LH Side DecalLH Side Decal
-
7516003788 Warning Decal, SecurityWarning Decal, Security
-
8516003790 Warning Decal, SecurityWarning Decal, Security
-
9516003688 RH Frame Decal, REV XP 146''. Track 146''RH Frame Decal, REV XP 146''. Track 146''
-
9516003690 RH Frame Decal, REV XP 154''. Track 154''RH Frame Decal, REV XP 154''. Track 154''
-
9516003692 RH Frame Decal, REV XP 163''. Track 163''RH Frame Decal, REV XP 163''. Track 163''
-
10516003687 LH Frame Decal, REV XP 146''. Track 146''LH Frame Decal, REV XP 146''. Track 146''
-
10516003689 LH Frame Decal, REV XP 154''. Track 154''LH Frame Decal, REV XP 154''. Track 154''
-
10516003691 LH Frame Decal, REV XP 163''. Track 163''LH Frame Decal, REV XP 163''. Track 163''
-
11516003947 RH Lower DecalRH Lower Decal
-
12516003946 LH Lower DecalLH Lower Decal
-
13516003027 Warning Decal, Pictogram. EuropeWarning Decal, Pictogram. Europe
-
14516002965 Warning Decal, Hot PartsWarning Decal, Hot Parts
