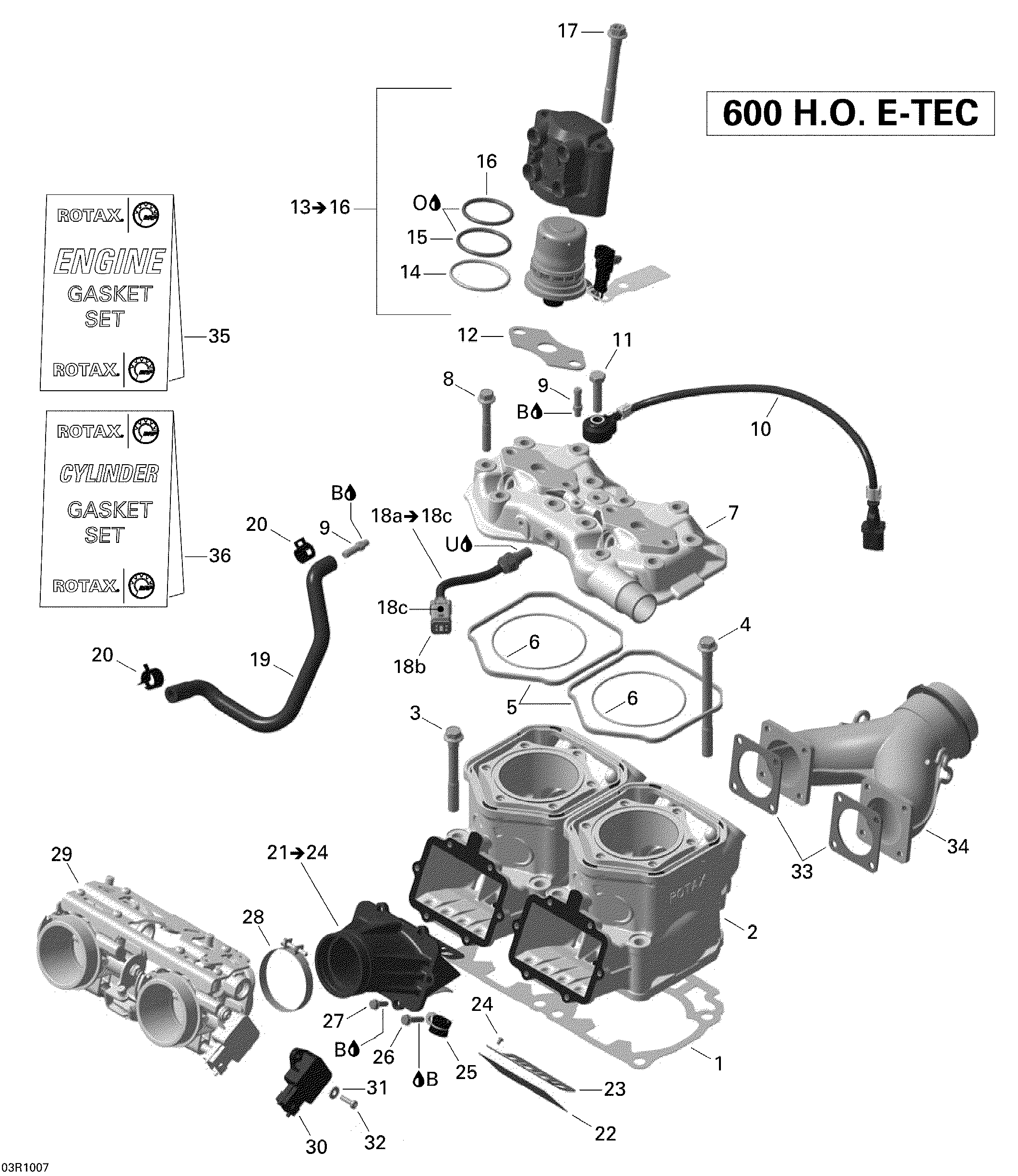

01- Cylinder And Injection System для BRP Ski-Doo Summit Everest 600HO ETEC - 2010
-
№АртикулНазвание
-
1420431160 Double Gasket 0.5 mmDouble Gasket 0.5 mm
-
1420431161 Double Gasket 0.6 mmDouble Gasket 0.6 mm
-
1420931894 Double Gasket 0.7 mmDouble Gasket 0.7 mm
-
1420931895 Double Gasket 0.8 mmDouble Gasket 0.8 mm
-
2420623263 CylinderCylinder
-
3420640524 Hex. Collar ScrewHex. Collar Screw
-
4420640534 Hex. Collar ScrewHex. Collar Screw
-
5420931590 Rubber RingRubber Ring
-
6293300026 O-RingO-Ring
-
7420623292 Head Cylinder CoverHead Cylinder Cover
-
8420941627 Hex. Screw M8 X 56.5Hex. Screw M8 X 56.5
-
9420924720 Hose NippleHose Nipple
-
10270000484 Noise SensorNoise Sensor
-
11207083544 Hex. Screw M8 X 35Hex. Screw M8 X 35
-
12420430930 GasketGasket
-
13512060539 Fuel Injector Ass'y. Includes 13 to 16Fuel Injector Ass'y. Includes 13 to 16
-
14415129497 Crush RingCrush Ring
-
15415129498 O-RingO-Ring
-
16415129499 O-RingO-Ring
-
17420940382 Flanged Torx Screw M10 X 90Flanged Torx Screw M10 X 90
-
18a515176398 Temperature Sensor. Includes 18a to 18cTemperature Sensor. Includes 18a to 18c
-
18b515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
18c278000632 Female TerminalFemale Terminal
-
19420460865 Molded HoseMolded Hose
-
20420853511 ClampClamp
-
21420667530 Intake Socket With Reed Valve. Includes 21 to 24Intake Socket With Reed Valve. Includes 21 to 24
-
22420924680 Reed PedalReed Pedal
-
23420924695 Reed Pedal StopReed Pedal Stop
-
24420941215 Phillips Screw M3 X 5Phillips Screw M3 X 5
-
25420851250 ClampClamp
-
26420841550 Tapping Screw M5 X 22Tapping Screw M5 X 22
-
27420941925 Tapping Screw M5 X 16Tapping Screw M5 X 16
-
28420851065 ClampClamp
-
29420889197 Throttle BodyThrottle Body
-
30270000251 Position SensorPosition Sensor
-
31234041600 Flat Washer 4 mm, StainlessFlat Washer 4 mm, Stainless
-
32208641660 Phillips Screw M4 X 16Phillips Screw M4 X 16
-
33420850552 GasketGasket
-
34420673420 Exhaust ManifoldExhaust Manifold
-
35420889924 Gasket Set, EngineGasket Set, Engine
-
36420889928 Gasket Set, CylinderGasket Set, Cylinder
-
B293800060 Loctite 243, 10 mlLoctite 243, 10 ml
-
U420297906 Sealing Compound, 30 mlSealing Compound, 30 ml
